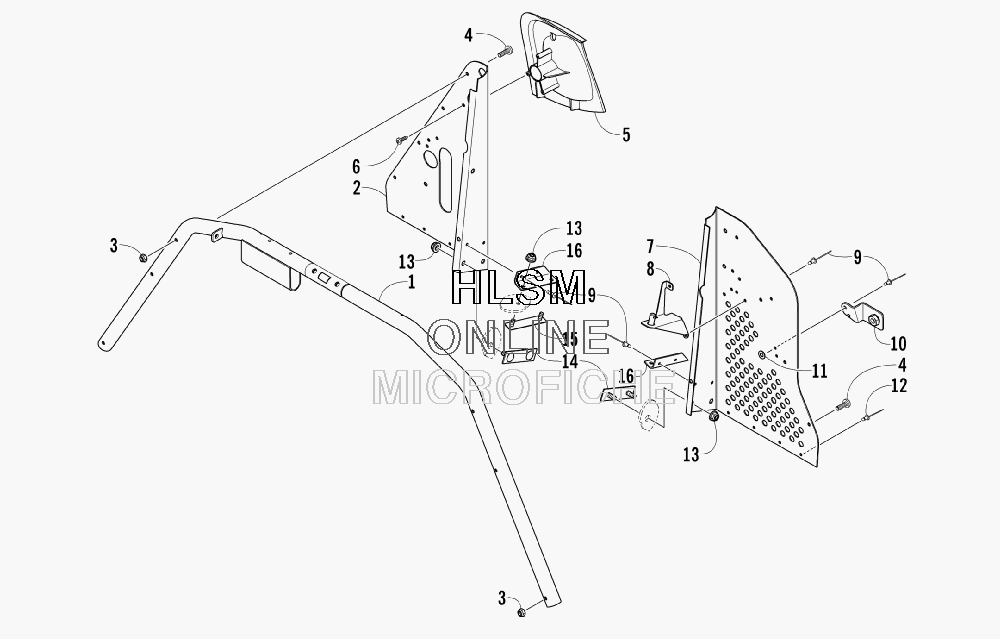

STEERING SUPPORT ASSEMBLY для Arctic Cat BEARCAT WIDE TRACK TURBO (ARTICULATING) - 2007 года выпуска
‹-+›
-
№АртикулНазвание
-
11705-100 SUPPORT, STEERINGSUPPORT, STEERING
-
22606-750 PLATE, BACKING VENT - RIGHTPLATE, BACKING VENT - RIGHT
-
38040-246 NUT, LOCKNUT, LOCK
-
40623-227 SCREW, MACHINESCREW, MACHINE
-
52606-739 PANEL, RECOIL ROPE CUPPANEL, RECOIL ROPE CUP
-
60623-297 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
72606-817 PLATE, BACKING VENT - LEFTPLATE, BACKING VENT - LEFT
-
81705-120 BRACKET, BELT GUARDBRACKET, BELT GUARD
-
90623-166 RIVETRIVET
-
102706-274 MOUNT, BELLY PAN/HOOD STRAP HOOK - RIGHTMOUNT, BELLY PAN/HOOD STRAP HOOK - RIGHT
-
102706-273 MOUNT, BELLY PAN/HOOD STRAP HOOK - LEFTMOUNT, BELLY PAN/HOOD STRAP HOOK - LEFT
-
110123-149 WASHERWASHER
-
128060-484 RIVETRIVET
-
138047-366 NUT, LOCKNUT, LOCK
-
141705-137 PLATE, BACKING - SIDEPLATE, BACKING - SIDE
-
151705-177 PLATE, BACKINGPLATE, BACKING
-
160605-120 BRACE, STEERING SUPPORT - RIGHTBRACE, STEERING SUPPORT - RIGHT
-
160605-121 BRACE, STEERING SUPPORT - LEFTBRACE, STEERING SUPPORT - LEFT
