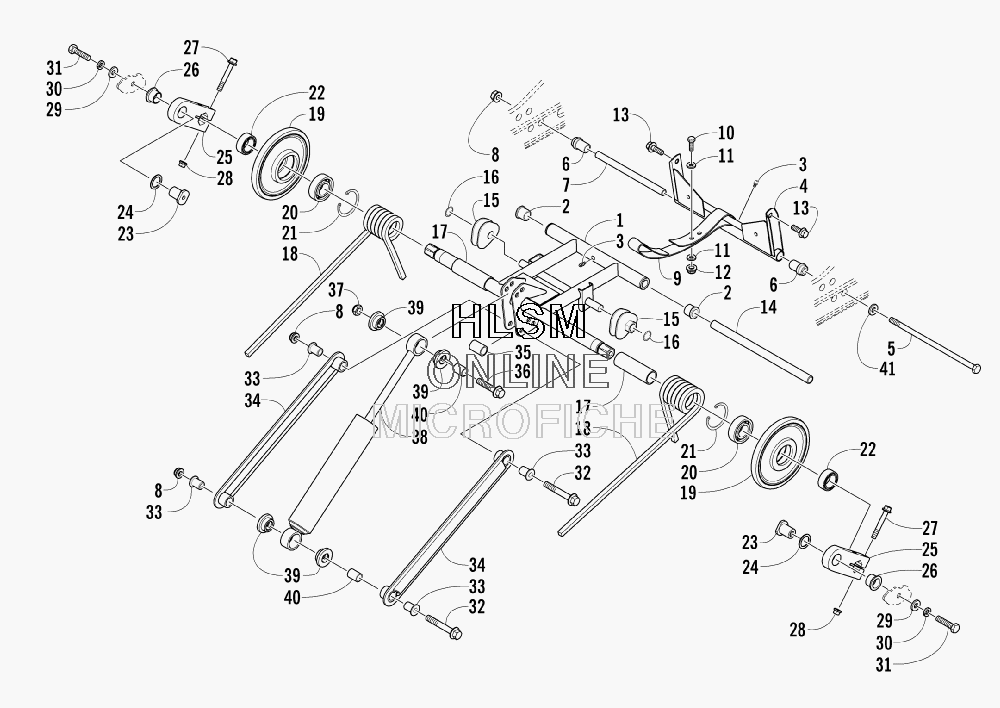

REAR SUSPENSION REAR ARM ASSEMBLY для Arctic Cat BEARCAT WIDE TRACK TURBO (ARTICULATING) - 2007 года выпуска

  • №
    Артикул
    Название
  • 1
    1704-488 ARM, IDLER (INC. 2 AND ONE NO. 3)
    ARM, IDLER (INC. 2 AND ONE NO. 3)
  • 2
    1604-100 ...BUSHING, FLARED
    ...BUSHING, FLARED
  • 3
    1623-010 ...FITTING, GREASE
    ...FITTING, GREASE
  • 4
    1704-520 ARM, REAR (INC. ONE NO. 3)
    ARM, REAR (INC. ONE NO. 3)
  • 5
    0623-971 SCREW, CAP
    SCREW, CAP
  • 6
    1604-307 AXLE, SERRATED
    AXLE, SERRATED
  • 7
    1604-974 TUBE, AXLE
    TUBE, AXLE
  • 8
    8047-486 NUT, LOCK
    NUT, LOCK
  • 9
    1604-863 STRAP, LIMITER
    STRAP, LIMITER
  • 10
    8002-042 SCREW, CAP
    SCREW, CAP
  • 11
    0623-184 WASHER
    WASHER
  • 12
    8047-366 NUT, LOCK
    NUT, LOCK
  • 13
    1623-427 SCREW, CAP
    SCREW, CAP
  • 14
    1604-975 AXLE, ALUMINUM
    AXLE, ALUMINUM
  • 15
    1604-204 BLOCK, SPRING ADJUSTER - RIGHT
    BLOCK, SPRING ADJUSTER - RIGHT
  • 15
    1604-205 BLOCK, SPRING ADJUSTER - LEFT
    BLOCK, SPRING ADJUSTER - LEFT
  • 16
    0623-138 RING, RETAINER
    RING, RETAINER
  • 17
    0114-254 SLEEVE, SPRING
    SLEEVE, SPRING
  • 18
    1704-562 SPRING, SUSPENSION - RIGHT
    SPRING, SUSPENSION - RIGHT
  • 18
    1704-563 SPRING, SUSPENSION - LEFT
    SPRING, SUSPENSION - LEFT
  • 19
    0604-051 WHEEL, IDLER (INC. 20-21)
    WHEEL, IDLER (INC. 20-21)
  • 20
    0107-598 ...BEARING
    ...BEARING
  • 21
    0123-798 ...RING, RETAINING
    ...RING, RETAINING
  • 22
    1604-507 SPACER, PIVOT IDLER ARM
    SPACER, PIVOT IDLER ARM
  • 23
    3604-158 AXLE, POWDER METAL
    AXLE, POWDER METAL
  • 24
    1604-187 WASHER, PIVOT IDLER ARM
    WASHER, PIVOT IDLER ARM
  • 25
    1704-522 ARM, PIVOT IDLER (INC. 26-28)
    ARM, PIVOT IDLER (INC. 26-28)
  • 26
    3604-028 ...BUSHING, FLARED
    ...BUSHING, FLARED
  • 27
    8020-138 ...SCREW, CAP
    ...SCREW, CAP
  • 28
    8047-426 ...NUT, LOCK
    ...NUT, LOCK
  • 29
    0623-044 WASHER
    WASHER
  • 30
    8051-277 WASHER, LOCK
    WASHER, LOCK
  • 31
    8002-224 SCREW, CAP
    SCREW, CAP
  • 32
    0623-793 SCREW, CAP
    SCREW, CAP
  • 33
    1604-498 AXLE, LINK - FLANGED
    AXLE, LINK - FLANGED
  • 34
    0704-929 LINK, REAR SHOCK
    LINK, REAR SHOCK
  • 35
    0704-854 SPACER, SHOCK LINK
    SPACER, SHOCK LINK
  • 36
    8020-226 SCREW, CAP
    SCREW, CAP
  • 37
    8041-486 NUT, LOCK
    NUT, LOCK
  • 38
    3604-195 SHOCK ABSORBER - REAR ARM (INC. 39-40)
    SHOCK ABSORBER - REAR ARM (INC. 39-40)
  • 39
    0604-310 ...BUSHING, SHOCK
    ...BUSHING, SHOCK
  • 40
    1604-185 ...SLEEVE, SHOCK
    ...SLEEVE, SHOCK
  • 41
    8050-272 WASHER (EXCEPT ARTICULATING)
    WASHER (EXCEPT ARTICULATING)
  • 41
    8050-277 WASHER (ARTICULATING)
    WASHER (ARTICULATING)
