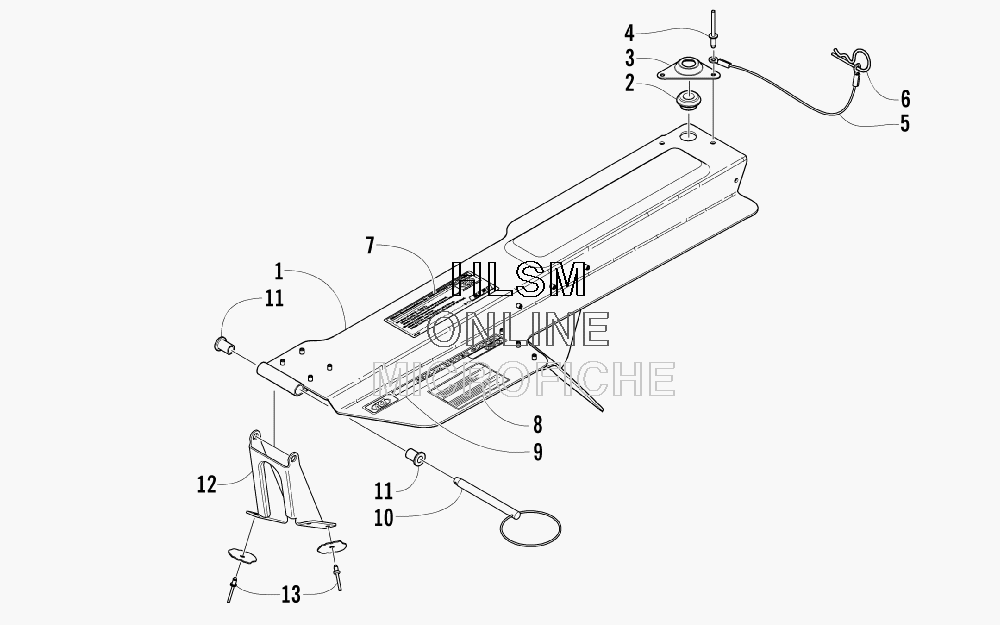

BELT GUARD ASSEMBLY для Arctic Cat BEARCAT WIDE TRACK TURBO (ARTICULATING) - 2007 года выпуска

  • №
    Артикул
    Название
  • 1
    1707-062 BELT GUARD ASSEMBLY (INC. 2-6)
    BELT GUARD ASSEMBLY (INC. 2-6)
  • 2
    0607-549 ...BUSHING, BELT GUARD
    ...BUSHING, BELT GUARD
  • 3
    0607-550 ...PLATE, BUSHING - BELT GUARD
    ...PLATE, BUSHING - BELT GUARD
  • 4
    8060-504 ...RIVET
    ...RIVET
  • 5
    0607-447 ...CABLE
    ...CABLE
  • 6
    0605-283 ...CLIP, HAIRPIN
    ...CLIP, HAIRPIN
  • 7
    7611-599 DECAL, CLUTCHING
    DECAL, CLUTCHING
  • 8
    1611-565 DECAL, WARNING - BELT GUARD
    DECAL, WARNING - BELT GUARD
  • 9
    3611-969 DECAL, "ACT - ROLLER DRIVEN CLUTCH"
    DECAL, "ACT - ROLLER DRIVEN CLUTCH"
  • 10
    1623-012 PIN, BELT GUARD
    PIN, BELT GUARD
  • 11
    0607-094 INSERT, HINGE
    INSERT, HINGE
  • 12
    0707-797 BRACKET, MOUNTING - BELT GUARD
    BRACKET, MOUNTING - BELT GUARD
  • 13
    8061-508 RIVET
    RIVET
