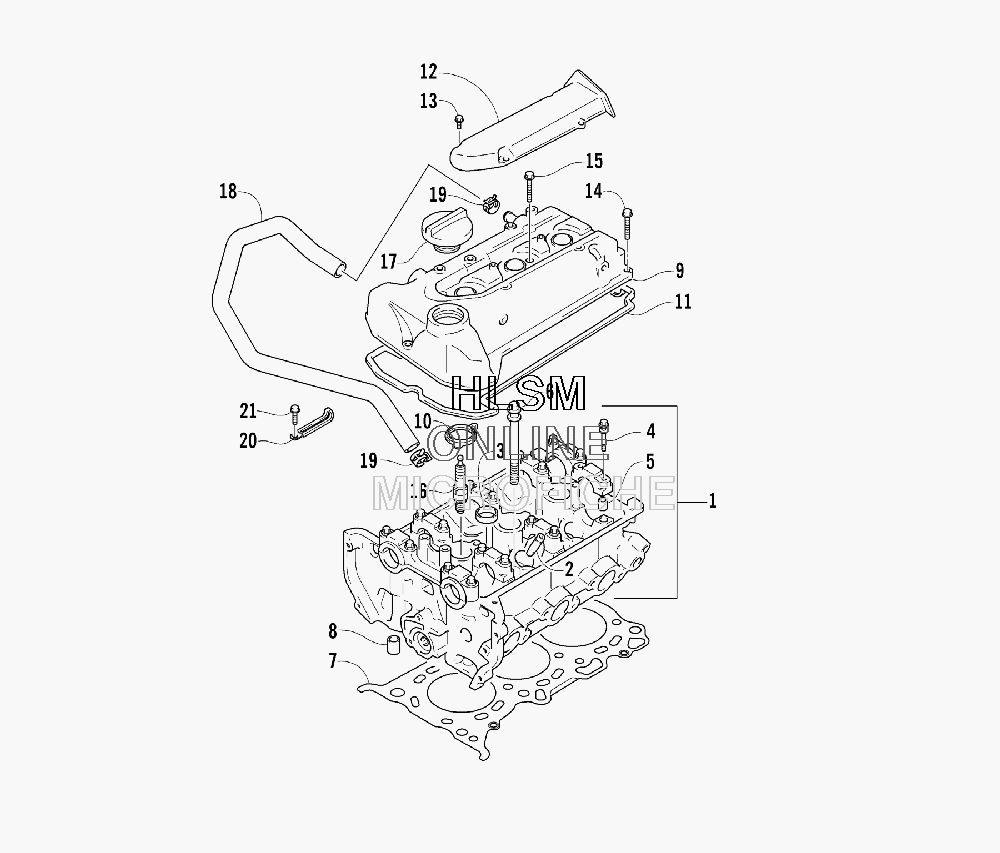

CYLINDER HEAD ASSEMBLY для Arctic Cat BEARCAT WIDE TRACK TURBO (ARTICULATING) - 2007 года выпуска
-
№АртикулНазвание
-
13007-019 CYLINDER HEAD ASSEMBLY (INC. 2-5)CYLINDER HEAD ASSEMBLY (INC. 2-5)
-
23006-132 ...GUIDE, VALVE...GUIDE, VALVE
-
33004-782 ...PLUG...PLUG
-
43006-134 ...BOLT, CAMSHAFT CAP...BOLT, CAMSHAFT CAP
-
53423-043 ...PIN, CAMSHAFT CAP DOWEL...PIN, CAMSHAFT CAP DOWEL
-
63006-133 BOLT, CAMSHAFT HOUSINGBOLT, CAMSHAFT HOUSING
-
73006-559 GASKET, CYLINDER HEADGASKET, CYLINDER HEAD
-
83006-115 PIN, DOWELPIN, DOWEL
-
93006-136 COVER, CYLINDER HEADCOVER, CYLINDER HEAD
-
103006-137 GASKET, SPARK PLUG HOLEGASKET, SPARK PLUG HOLE
-
113006-138 GASKET, CYLINDER HEAD COVERGASKET, CYLINDER HEAD COVER
-
123007-028 COVER, COILCOVER, COIL
-
133006-101 BOLT, COIL COVERBOLT, COIL COVER
-
143007-369 BOLT, CYLINDER HEAD COVERBOLT, CYLINDER HEAD COVER
-
153007-370 BOLT, CYLINDER HEAD COVERBOLT, CYLINDER HEAD COVER
-
160217-719 SPARK PLUG (NGK KR8AI)SPARK PLUG (NGK KR8AI)
-
173006-952 CAP, OIL FILLERCAP, OIL FILLER
-
183006-758 HOSE, BREATHERHOSE, BREATHER
-
193008-488 CLAMP, HOSECLAMP, HOSE
-
203006-580 CLAMP, WIRECLAMP, WIRE
-
213007-371 BOLTBOLT
