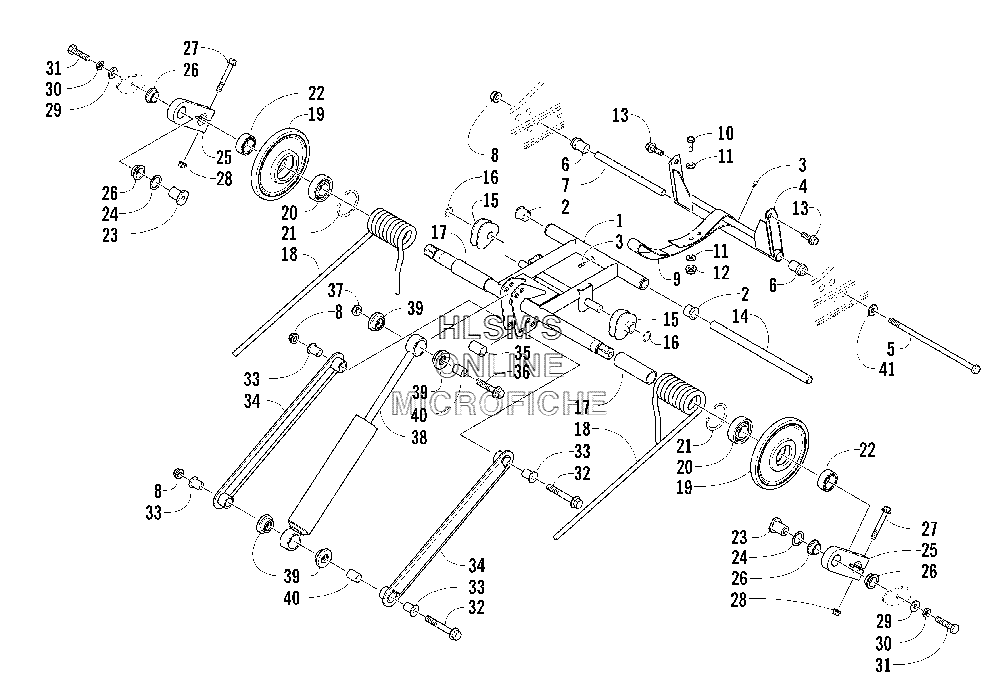

REAR SUSPENSION REAR ARM ASSEMBLY для Arctic Cat Bearcat WIDE TRACK - 2006 года выпуска
-
№АртикулНазвание
-
11704-488 ARM, IDLER (INC. 2 AND ONE NO. 3)ARM, IDLER (INC. 2 AND ONE NO. 3)
-
21604-100 BUSHING, FLAREDBUSHING, FLARED
-
31623-010 FITTING, GREASEFITTING, GREASE
-
41704-278 ARM (REAR) (INC. ONE NO. 3)ARM (REAR) (INC. ONE NO. 3)
-
50623-971 SCREW, CAPSCREW, CAP
-
61604-307 AXLE, SERRATEDAXLE, SERRATED
-
71604-974 TUBE, AXLETUBE, AXLE
-
88047-486 NUT, LOCKNUT, LOCK
-
91604-863 STRAP, LIMITERSTRAP, LIMITER
-
108002-042 SCREW, CAPSCREW, CAP
-
110623-184 WASHERWASHER
-
128047-366 NUT, LOCKNUT, LOCK
-
138020-222 SCREW, CAPSCREW, CAP
-
141604-975 AXLE, ALUMINUMAXLE, ALUMINUM
-
151604-204 BLOCK, SPRING ADJUSTER (RIGHT)BLOCK, SPRING ADJUSTER (RIGHT)
-
151604-205 BLOCK, SPRING ADJUSTER (LEFT)BLOCK, SPRING ADJUSTER (LEFT)
-
160623-138 RING, RETAINERRING, RETAINER
-
170114-254 SLEEVE, SPRINGSLEEVE, SPRING
-
180704-944 SPRING, SUSPENSION (RIGHT)SPRING, SUSPENSION (RIGHT)
-
180704-945 SPRING, SUSPENSION (LEFT)SPRING, SUSPENSION (LEFT)
-
190604-051 WHEEL, IDLER (INC. 20, 21)WHEEL, IDLER (INC. 20, 21)
-
200107-598 BEARINGBEARING
-
210123-798 RING, RETAININGRING, RETAINING
-
221604-507 SPACER, PIVOT IDLER ARMSPACER, PIVOT IDLER ARM
-
231604-181 AXLE, POWDER METALAXLE, POWDER METAL
-
241604-187 WASHER, PIVOT IDLER ARMWASHER, PIVOT IDLER ARM
-
250704-981 ARM, PIVOT IDLER (INC. 26, 28)ARM, PIVOT IDLER (INC. 26, 28)
-
261604-202 BUSHING, FLAREDBUSHING, FLARED
-
278020-138 SCREW, CAPSCREW, CAP
-
288048-426 NUT, LOCKNUT, LOCK
-
290623-044 WASHERWASHER
-
308051-277 WASHER, LOCKWASHER, LOCK
-
318002-224 SCREW, CAPSCREW, CAP
-
320623-793 SCREW, CAPSCREW, CAP
-
331604-498 AXLE, LINK, FLANGEDAXLE, LINK, FLANGED
-
340704-929 LINK, SHOCK (REAR)LINK, SHOCK (REAR)
-
358020-226 SCREW, CAPSCREW, CAP
-
360704-854 SPACER, SHOCK LINKSPACER, SHOCK LINK
-
378041-486 NUT, LOCKNUT, LOCK
-
382604-200 SHOCK ABSORBER, ARM (REAR) (INC. 39, 40)SHOCK ABSORBER, ARM (REAR) (INC. 39, 40)
-
390604-310 BUSHING, SHOCKBUSHING, SHOCK
-
401604-185 SLEEVE, SHOCKSLEEVE, SHOCK
-
418050-277 WASHERWASHER
