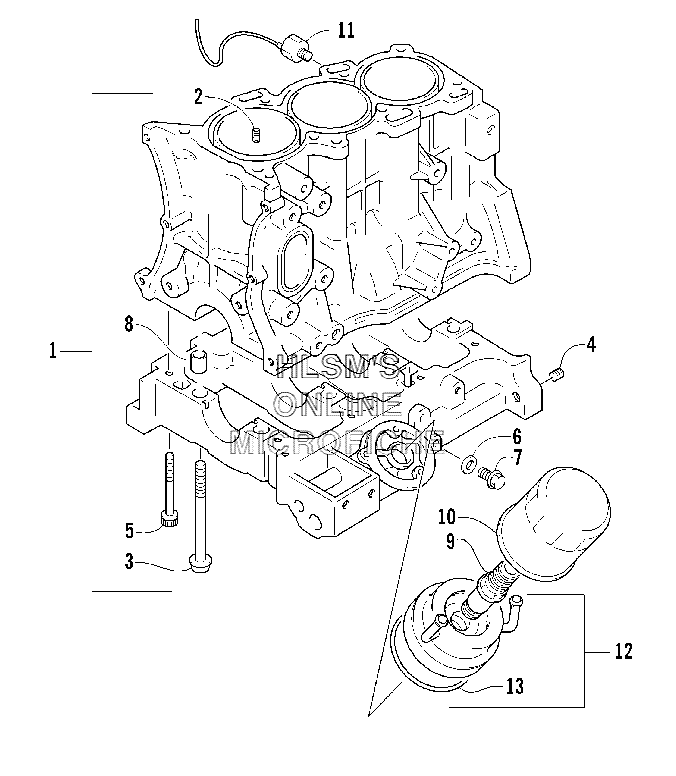

CYLINDER BLOCK/BASE ASSEMBLY для Arctic Cat Bearcat WIDE TRACK - 2006 года выпуска`
-
№АртикулНазвание
-
13006-955 CYLINDER BLOCK/BASE ASSY (INC. 2, 8)CYLINDER BLOCK/BASE ASSY (INC. 2, 8)
-
23006-131 PLUG, OIL VENTURIPLUG, OIL VENTURI
-
33006-133 BOLTBOLT
-
43006-116 PLUG, OIL GALLERYPLUG, OIL GALLERY
-
53006-141 BOLTBOLT
-
63006-112 GASKETGASKET
-
73006-117 PLUG, OIL DRAINPLUG, OIL DRAIN
-
83423-088 PIN, DOWELPIN, DOWEL
-
93006-564 STAND, OIL FILTERSTAND, OIL FILTER
-
103005-948 FILTER, OIL, ASSYFILTER, OIL, ASSY
-
113006-886 SENSOR, KNOCK, ASSYSENSOR, KNOCK, ASSY
-
123006-565 COOLER, OIL (INC. 13)COOLER, OIL (INC. 13)
-
133006-566 GASKETGASKET
