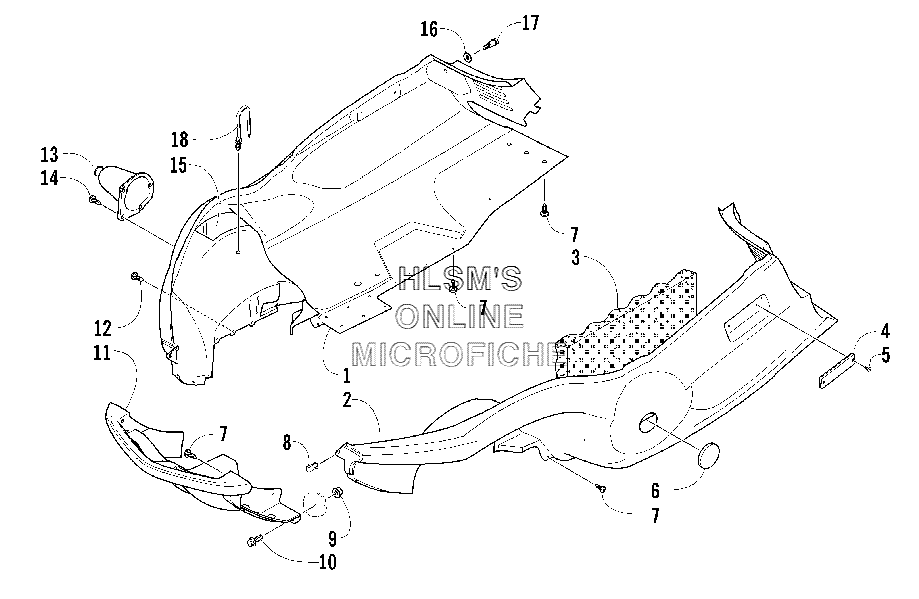

BELLY PAN AND FRONT BUMPER ASSEMBLY для Arctic Cat Bearcat WIDE TRACK - 2006 года выпуска

  • №
    Артикул
    Название
  • 1
    4606-020 BELLY PAN (RIGHT)
    BELLY PAN (RIGHT)
  • 2
    4606-021 BELLY PAN (LEFT)
    BELLY PAN (LEFT)
  • 3
    0617-315 FOAM, BELLY PAN (LEFT)
    FOAM, BELLY PAN (LEFT)
  • 4
    0606-526 REFLECTOR (FRONT/AMBER)
    REFLECTOR (FRONT/AMBER)
  • 5
    0623-269 CLIP, RETAINING
    CLIP, RETAINING
  • 6
    1623-412 PANEL, ACCESS, DRIVE CLUTCH
    PANEL, ACCESS, DRIVE CLUTCH
  • 7
    0623-784 SCREW, SELF, TAPPING
    SCREW, SELF, TAPPING
  • 8
    0623-427 NUT, U
    NUT, U
  • 9
    8048-366 NUT, LOCK
    NUT, LOCK
  • 10
    8020-040 SCREW, CAP
    SCREW, CAP
  • 11
    3606-989 BUMPER (FRONT)
    BUMPER (FRONT)
  • 12
    0623-797 SCREW, SELF, TAPPING
    SCREW, SELF, TAPPING
  • 13
    0605-332 BOOT, STEERING (RIGHT)
    BOOT, STEERING (RIGHT)
  • 13
    0605-333 BOOT, STEERING (LEFT)
    BOOT, STEERING (LEFT)
  • 14
    0623-564 SCREW, SELF, TAPPING
    SCREW, SELF, TAPPING
  • 15
    0619-206 TAPE, FOIL
    TAPE, FOIL
  • 16
    8050-217 WASHER
    WASHER
  • 17
    0623-855 SCREW, SHOULDER
    SCREW, SHOULDER
  • 18
    0623-677 CABLE TIE, PUSH, MOUNT
    CABLE TIE, PUSH, MOUNT
