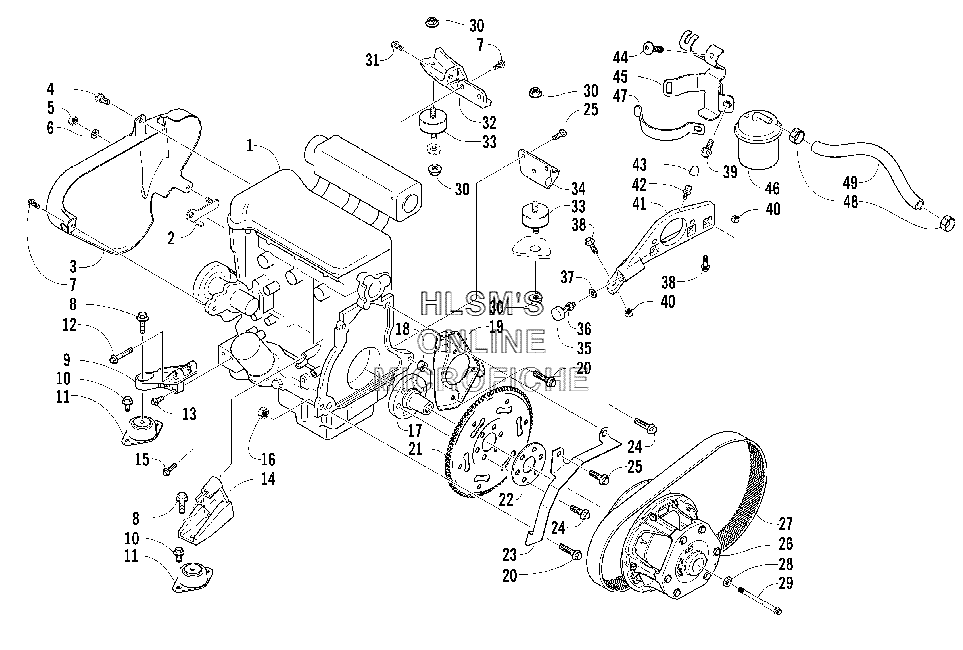

ENGINE AND RELATED PARTS для Arctic Cat Bearcat WIDE TRACK - 2006 года выпуска`
-
№АртикулНазвание
-
10662-421 ENGINE, AB66L3ENGINE, AB66L3
-
21706-930 BRACKET, ENGINE BELT COVERBRACKET, ENGINE BELT COVER
-
32606-720 COVER, ENGINE BELTCOVER, ENGINE BELT
-
48408-616 SCREW, CAPSCREW, CAP
-
50624-250 NUT, LOCKNUT, LOCK
-
68050-217 WASHERWASHER
-
78408-820 SCREW, CAPSCREW, CAP
-
88020-220 SCREW, CAPSCREW, CAP
-
90708-432 BRACKET, ENGINE MOUNTING (RIGHT/FRONT)BRACKET, ENGINE MOUNTING (RIGHT/FRONT)
-
100623-765 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
110608-350 MOUNT, ENGINE (FRONT)MOUNT, ENGINE (FRONT)
-
128408-870 SCREW, CAPSCREW, CAP
-
138408-840 SCREW, CAPSCREW, CAP
-
140708-408 BRACKET, ENGINE MOUNTING (LEFT/FRONT)BRACKET, ENGINE MOUNTING (LEFT/FRONT)
-
158408-850 SCREW, CAPSCREW, CAP
-
168428-002 NUTNUT
-
171670-245 ADAPTER, PTOADAPTER, PTO
-
181623-063 BUSHINGBUSHING
-
190745-275 BRACKET, MOUNTING, STARTER MOTORBRACKET, MOUNTING, STARTER MOTOR
-
208409-040 SCREW, CAPSCREW, CAP
-
210745-192 GEAR, RINGGEAR, RING
-
220745-187 SPACERSPACER
-
230745-164 GUARD, RING GEARGUARD, RING GEAR
-
248409-030 SCREW, CAPSCREW, CAP
-
258409-020 SCREW, CAPSCREW, CAP
-
260725-501 CLUTCH, DRIVECLUTCH, DRIVE
-
270627-033 BELT, DRIVEBELT, DRIVE
-
280623-210 WASHER, HIGH COLLARWASHER, HIGH COLLAR
-
290623-804 BOLT, DRIVE CLUTCHBOLT, DRIVE CLUTCH
-
308048-486 NUT, LOCKNUT, LOCK
-
318408-825 SCREW, CAPSCREW, CAP
-
320708-407 BRACKET, ENGINE MOUNTING (RIGHT/REAR)BRACKET, ENGINE MOUNTING (RIGHT/REAR)
-
330608-250 MOUNT, ENGINE (REAR)MOUNT, ENGINE (REAR)
-
340708-128 BRACKET, ENGINE MOUNTING (LEFT/REAR)BRACKET, ENGINE MOUNTING (LEFT/REAR)
-
350608-358 BUMPER, TORQUE, ENGINEBUMPER, TORQUE, ENGINE
-
368042-516 NUTNUT
-
378050-282 WASHERWASHER
-
388020-132 SCREW, CAPSCREW, CAP
-
398020-037 SCREW, CAPSCREW, CAP
-
408040-426 NUT, LOCKNUT, LOCK
-
410707-958 BRACKET, ENGINE MOUNTING/BEARING SUPPORT (INC. 42, 43)BRACKET, ENGINE MOUNTING/BEARING SUPPORT (INC. 42, 43)
-
421623-010 FITTING, GREASEFITTING, GREASE
-
430623-904 CAP, GREASE FITTINGCAP, GREASE FITTING
-
441623-175 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
450770-710 BRACKET, FUEL FILTERBRACKET, FUEL FILTER
-
461670-691 FILTER, FUELFILTER, FUEL
-
470770-711 STRAP, FUEL FILTERSTRAP, FUEL FILTER
-
480610-419 CLAMP, HOSECLAMP, HOSE
-
490610-075 HOSE, GASLINE, 10 FTHOSE, GASLINE, 10 FT
