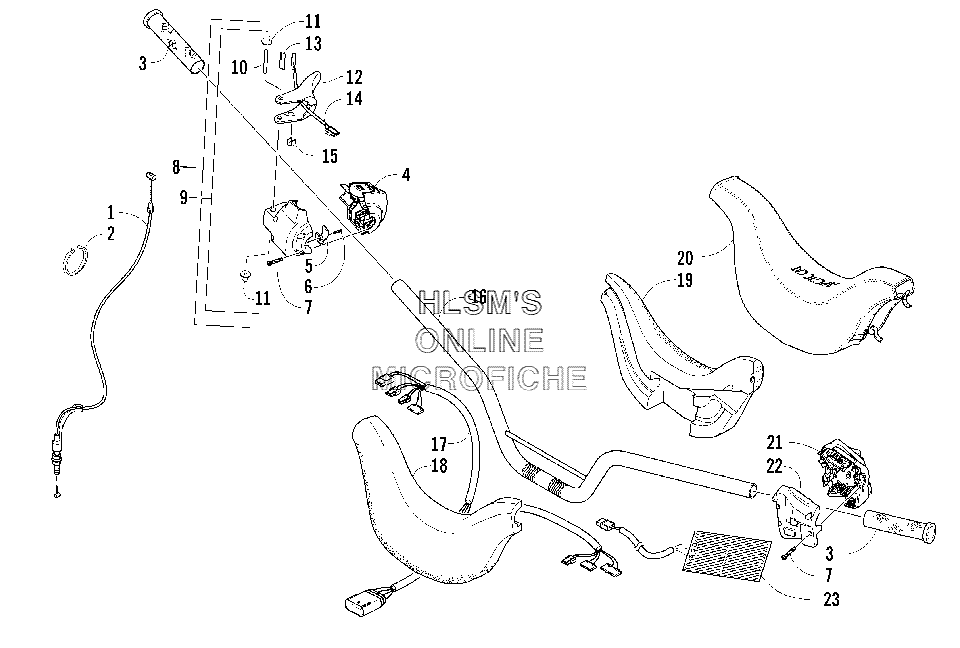

HANDLEBAR AND CONTROLS для Arctic Cat Bearcat WIDE TRACK - 2006 года выпуска`
-
№АртикулНазвание
-
10687-188 CABLE, THROTTLECABLE, THROTTLE
-
20123-788 CABLE TIE, 8 IN.CABLE TIE, 8 IN.
-
32606-084 GRIP, HANDLEBARGRIP, HANDLEBAR
-
40609-754 CONTROL, THROTTLE (FRONT)CONTROL, THROTTLE (FRONT)
-
50609-792 COVER, CONNECTORCOVER, CONNECTOR
-
60609-793 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
70609-791 SCREW, MACHINESCREW, MACHINE
-
80609-774 CONTROL, THROTTLE (REAR) (INC. 9, 12)CONTROL, THROTTLE (REAR) (INC. 9, 12)
-
90609-799 THROTTLE LEVER MOUNTING KIT (INC. 10, 11)THROTTLE LEVER MOUNTING KIT (INC. 10, 11)
-
120609-796 LEVER, THROTTLELEVER, THROTTLE
-
130617-248 PAD, INSULATORPAD, INSULATOR
-
140609-775 ELEMENT, THUMBWARMERELEMENT, THUMBWARMER
-
150609-595 CLIP, RETAININGCLIP, RETAINING
-
161705-072 HANDLEBARHANDLEBAR
-
171686-231 HARNESS, HANDLEBARHARNESS, HANDLEBAR
-
180605-845 PAD, HANDLEBAR (FRONT)PAD, HANDLEBAR (FRONT)
-
190605-846 PAD, HANDLEBAR (REAR)PAD, HANDLEBAR (REAR)
-
203706-196 COVER, HANDLEBARCOVER, HANDLEBAR
-
210609-758 CONTROL, DIMMER (FRONT)CONTROL, DIMMER (FRONT)
-
220609-756 CONTROL, DIMMER (REAR)CONTROL, DIMMER (REAR)
-
230609-714 ELEMENT, HANDWARMER (RIGHT)ELEMENT, HANDWARMER (RIGHT)
-
230609-715 ELEMENT, HANDWARMER (LEFT)ELEMENT, HANDWARMER (LEFT)
