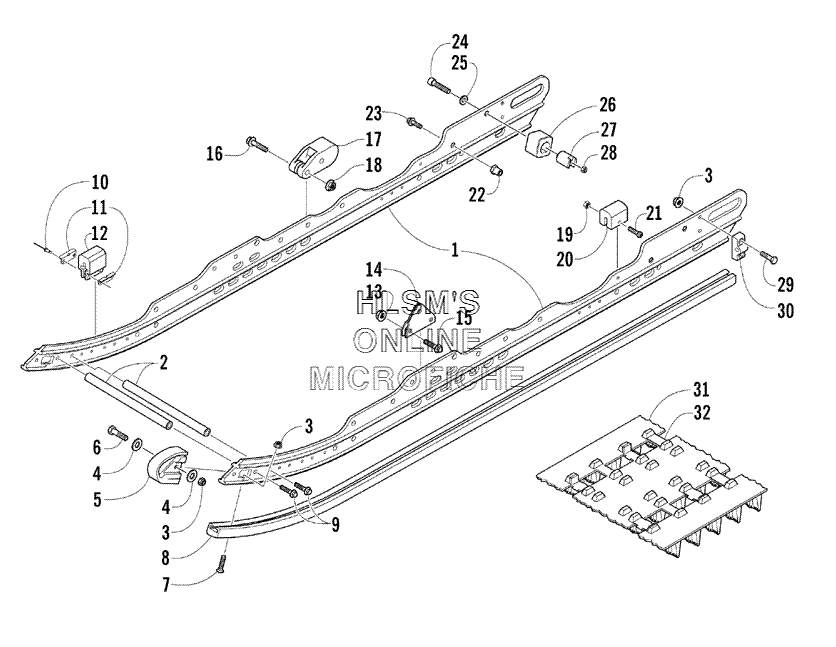

SLIDE RAIL AND TRACK ASSEMBLY для Arctic Cat T660 Touring - 2005 года выпуска`
-
№АртикулНазвание
-
-7998-478 COMPLETE SKID FRAMECOMPLETE SKID FRAME
-
12604-712 RAIL, FORMEDRAIL, FORMED
-
20604-426 SUPPORT, RAILSUPPORT, RAIL
-
38047-366 NUT, LOCKNUT, LOCK
-
48050-217 WASHERWASHER
-
52604-842 END CAP, SLIDE RAILEND CAP, SLIDE RAIL
-
68002-043 SCREW, CAPSCREW, CAP
-
70123-859 SCREW, MACHINESCREW, MACHINE
-
82604-257 WEARSTRIP, SLIDE RAILWEARSTRIP, SLIDE RAIL
-
98020-134 SCREW, CAPSCREW, CAP
-
108060-633 RIVET, SOLIDRIVET, SOLID
-
110604-967 BRACKET, RETAININGBRACKET, RETAINING
-
120604-918 PAD, SHOCKPAD, SHOCK
-
138048-426 NUT, LOCKNUT, LOCK
-
140704-395 BRACKET, MOUNTING ARM (FRONT)BRACKET, MOUNTING ARM (FRONT)
-
158020-132 SCREW, CAPSCREW, CAP
-
168020-227 SCREW, CAPSCREW, CAP
-
171604-413 BLOCK, SPRING TENSIONBLOCK, SPRING TENSION
-
188048-486 NUT, LOCKNUT, LOCK
-
198041-246 NUT, LOCKNUT, LOCK
-
201604-429 PAD, SHOCKPAD, SHOCK
-
218017-405 SCREW, MACHINESCREW, MACHINE
-
222604-562 STOP ARM (REAR)STOP ARM (REAR)
-
238020-222 SCREW, CAPSCREW, CAP
-
248005-676 SCREW, CAPSCREW, CAP
-
250623-044 WASHERWASHER
-
262604-545 BLOCK ARM COUPLER (REAR)BLOCK ARM COUPLER (REAR)
-
272604-046 BUSHING ARM COUPLER BLOCK (REAR)BUSHING ARM COUPLER BLOCK (REAR)
-
288041-486 NUT, LOCKNUT, LOCK
-
298002-042 SCREW, CAPSCREW, CAP
-
300704-352 ADJUSTER, TRACKADJUSTER, TRACK
-
311602-635 TRACK ASSEMBLY (INC. 32)TRACK ASSEMBLY (INC. 32)
-
320602-488 CLIP, GUIDECLIP, GUIDE
