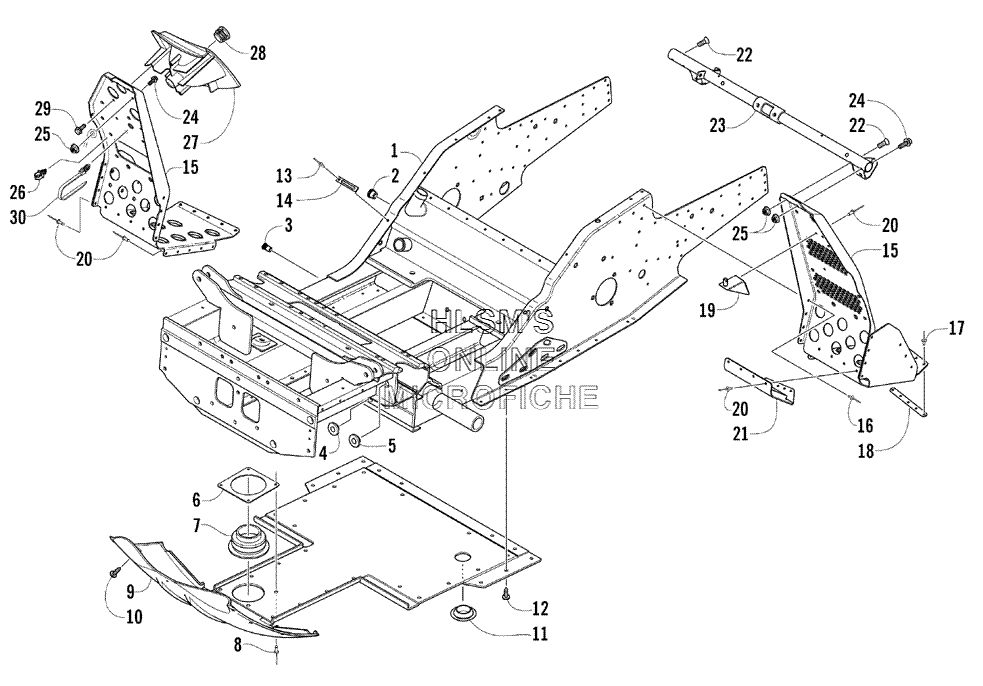

FRONT FRAME AND FOOTREST ASSEMBLY для Arctic Cat T660 Touring - 2005 года выпуска`
-
№АртикулНазвание
-
10707-821 CHASSIS ASSEMBLY (INC. 2, 5)CHASSIS ASSEMBLY (INC. 2, 5)
-
20623-581 INSERTINSERT
-
30623-582 INSERTINSERT
-
40607-420 INSERT A, ARM MOUNT (LOWER)INSERT A, ARM MOUNT (LOWER)
-
50607-421 INSERT A, ARM MOUNT (UPPER)INSERT A, ARM MOUNT (UPPER)
-
60712-952 RING, EXHAUST OUTLETRING, EXHAUST OUTLET
-
71612-027 BOOT, EXHAUSTBOOT, EXHAUST
-
88060-508 RIVETRIVET
-
92706-478 BELLY PAN (CENTER)BELLY PAN (CENTER)
-
100623-784 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
112606-367 PLUG, OIL DRAIN ACCESSPLUG, OIL DRAIN ACCESS
-
121623-129 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
138060-506 RIVETRIVET
-
143002-964 CLAMP, WIRECLAMP, WIRE
-
152706-919 FOOTREST (RIGHT)FOOTREST (RIGHT)
-
152706-113 FOOTREST (LEFT)FOOTREST (LEFT)
-
160623-341 RIVETRIVET
-
170623-282 RIVETRIVET
-
182706-110 PLATE, BACKING, FOOTRESTPLATE, BACKING, FOOTREST
-
190705-173 BRACKET, MOUNTING, BELT GUARDBRACKET, MOUNTING, BELT GUARD
-
200623-166 RIVETRIVET
-
211706-886 PLATE, BACKING (RIGHT)PLATE, BACKING (RIGHT)
-
211706-887 PLATE, BACKING (LEFT)PLATE, BACKING (LEFT)
-
228019-614 SCREW, MACHINESCREW, MACHINE
-
230705-924 SUPPORT, STEERINGSUPPORT, STEERING
-
248020-040 SCREW, CAPSCREW, CAP
-
258048-366 NUT, LOCKNUT, LOCK
-
260623-101 CLIP, ROUTINGCLIP, ROUTING
-
271706-099 CUP, RECOIL ROPECUP, RECOIL ROPE
-
280623-831 PLUG, RECOIL CUPPLUG, RECOIL CUP
-
290623-297 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
300623-677 CABLE TIE, PUSH, MOUNTCABLE TIE, PUSH, MOUNT
