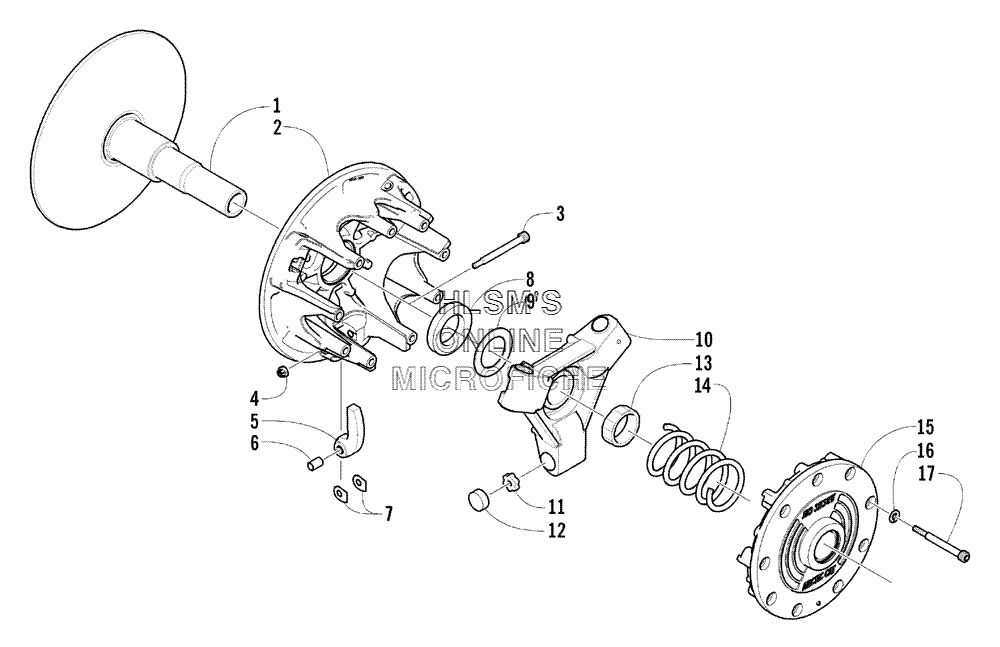

DRIVE CLUTCH для Arctic Cat T660 Touring - 2005 года выпуска

  • №
    Артикул
    Название
  • 1
    0646-365 SHEAVE, STATIONARY
    SHEAVE, STATIONARY
  • 2
    0746-080 SHEAVE, MOVABLE
    SHEAVE, MOVABLE
  • 3
    0646-295 PIN, CAM ARM
    PIN, CAM ARM
  • 4
    0623-392 NUT, LOCK
    NUT, LOCK
  • 5
    0746-646 ARM, CAM (INC. 6)
    ARM, CAM (INC. 6)
  • 5
    0746-645 ARM, CAM (INC. 6) (5, 9, 000 FT ALT.)
    ARM, CAM (INC. 6) (5, 9, 000 FT ALT.)
  • 5
    0746-647 ARM, CAM (INC. 6) (OVER 9, 000 FT ALT.)
    ARM, CAM (INC. 6) (OVER 9, 000 FT ALT.)
  • 6
    0646-160 BEARING, CAM ARM
    BEARING, CAM ARM
  • 7
    0646-101 WASHER, CAM ARM
    WASHER, CAM ARM
  • 8
    0646-196 SPACER
    SPACER
  • 9
    0646-266 WASHER, SPACER
    WASHER, SPACER
  • 10
    0746-686 SPIDER ASSEMBLY
    SPIDER ASSEMBLY
  • 11
    0646-297 BUTTON, TORQUE
    BUTTON, TORQUE
  • 12
    0646-298 PLUG, TORQUE BUTTON
    PLUG, TORQUE BUTTON
  • 13
    0646-140 NUT
    NUT
  • 14
    0646-367 SPRING, DRIVE CLUTCH
    SPRING, DRIVE CLUTCH
  • 15
    0746-086 COVER
    COVER
  • 16
    8051-212 WASHER, LOCK
    WASHER, LOCK
  • 17
    0623-596 SCREW, MACHINE
    SCREW, MACHINE
  • -
    0725-407 DRIVE CLUTCH ASSEMBLY
    DRIVE CLUTCH ASSEMBLY
  • -
    1639-030 CAM ARM KIT (INC. 3, 4 AND 6, 7)
    CAM ARM KIT (INC. 3, 4 AND 6, 7)
  • -
    0746-133 UNCALIBRATED DRIVE CLUTCH
    UNCALIBRATED DRIVE CLUTCH
