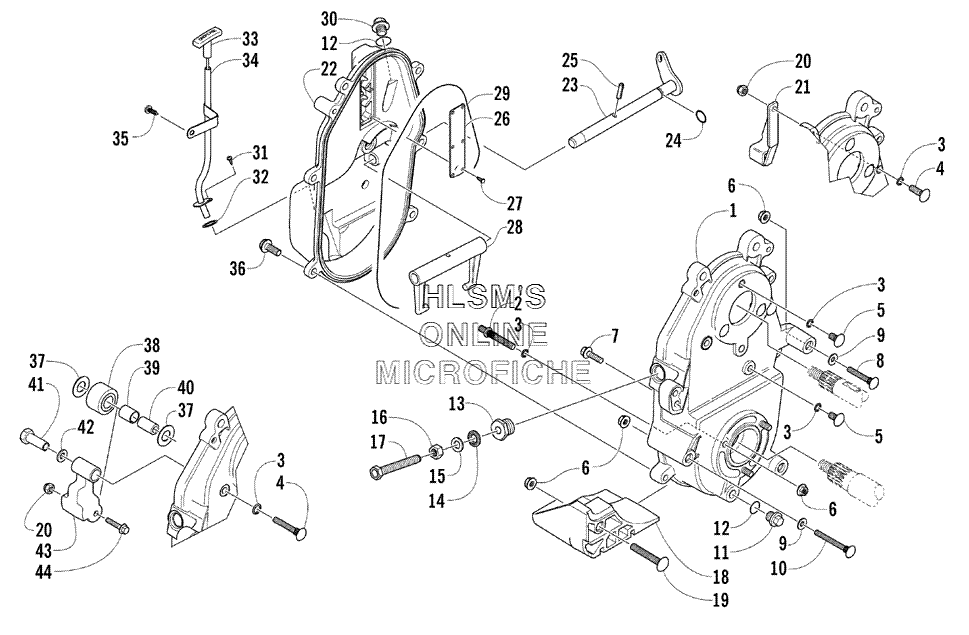

DROPCASE AND CHAIN TENSION ASSEMBLY для Arctic Cat T660 Touring - 2005 года выпуска`
-
№АртикулНазвание
-
10702-417 DROPCASE W/STUDS (INC. 2, 5)DROPCASE W/STUDS (INC. 2, 5)
-
20623-317 STUD, RIBBEDSTUD, RIBBED
-
30607-025 O-RING, STUDO-RING, STUD
-
40623-117 BOLT, RIBBEDBOLT, RIBBED
-
50123-523 BOLT, RIBBEDBOLT, RIBBED
-
68047-426 NUT, LOCKNUT, LOCK
-
78020-135 SCREW, CAPSCREW, CAP
-
88011-139 BOLT, CARRIAGEBOLT, CARRIAGE
-
98050-247 WASHERWASHER
-
108011-143 BOLT, CARRIAGEBOLT, CARRIAGE
-
110602-479 PLUG, DRAIN, MAGNETICPLUG, DRAIN, MAGNETIC
-
121602-213 O-RINGO-RING
-
130602-876 ADAPTER, MANUAL ADJUSTADAPTER, MANUAL ADJUST
-
140623-905 SEAL, MANUAL ADJUSTSEAL, MANUAL ADJUST
-
158050-272 WASHERWASHER
-
160123-150 NUTNUT
-
171602-101 ADJUSTER, CHAINADJUSTER, CHAIN
-
180616-964 GUARD, DROPCASEGUARD, DROPCASE
-
198011-135 BOLT, CARRIAGEBOLT, CARRIAGE
-
200623-122 NUT, LOCKNUT, LOCK
-
210702-554 BRACKET, CHAIN BACKINGBRACKET, CHAIN BACKING
-
221602-222 COVER, DROPCASECOVER, DROPCASE
-
230702-350 SHAFT, SHIFT FORKSHAFT, SHIFT FORK
-
240602-021 SEAL, O-RINGSEAL, O-RING
-
250623-542 PIN, SPRINGPIN, SPRING
-
261602-151 COVER, OIL VENTCOVER, OIL VENT
-
270623-081 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
280602-085 FORK, SHIFTFORK, SHIFT
-
290602-437 SEAL, DROPCASESEAL, DROPCASE
-
300623-293 PLUG, DRAINPLUG, DRAIN
-
310623-914 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
320605-014 O, O-RINGIL LEVEL STICK TUBEO, O-RINGIL LEVEL STICK TUBE
-
331602-107 STICK, OIL LEVELSTICK, OIL LEVEL
-
341602-106 TUBE, OIL LEVEL STICKTUBE, OIL LEVEL STICK
-
350623-765 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
368020-134 SCREW, CAPSCREW, CAP
-
370623-525 WASHERWASHER
-
380702-129 ROLLER, CHAIN TIGHTENER (INC. 39)ROLLER, CHAIN TIGHTENER (INC. 39)
-
390602-383 BEARING, CHAIN TIGHTENERBEARING, CHAIN TIGHTENER
-
400602-676 SHAFT, CHAIN ROLLERSHAFT, CHAIN ROLLER
-
410602-681 NUT, ROLLER ARMNUT, ROLLER ARM
-
428050-222 WASHERWASHER
-
430602-675 ARM, CHAIN ROLLERARM, CHAIN ROLLER
-
448002-045 SCREW, CAPSCREW, CAP
