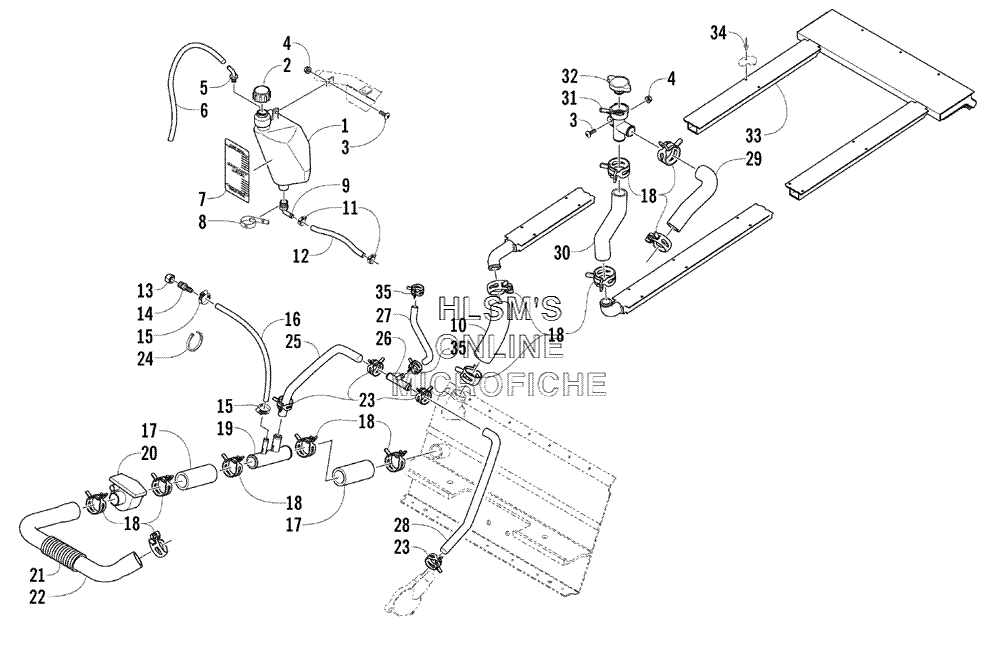

COOLING ASSEMBLY для Arctic Cat T660 Touring - 2005 года выпуска
-
№АртикулНазвание
-
11670-246 TANK, COOLANTTANK, COOLANT
-
20670-035 CAP, TANKCAP, TANK
-
38017-580 SCREW, MACHINESCREW, MACHINE
-
48048-366 NUT, LOCKNUT, LOCK
-
50670-242 FITTING, VENTFITTING, VENT
-
60610-010 HOSE, VENT (25 FT)HOSE, VENT (25 FT)
-
74611-093 DECAL, FILL LEVEL, COOLANT TANKDECAL, FILL LEVEL, COOLANT TANK
-
80670-289 TAPE, TEFLONTAPE, TEFLON
-
90670-075 FITTING, ELBOWFITTING, ELBOW
-
100610-244 HOSE, COOLANT HEAT EXCHANGER FRONT/REAR HEAT EXCHANGERHOSE, COOLANT HEAT EXCHANGER FRONT/REAR HEAT EXCHANGER
-
110124-045 CLAMP, HOSECLAMP, HOSE
-
120610-015 HOSE (100 FT)HOSE (100 FT)
-
120610-016 HOSE (25 FT)HOSE (25 FT)
-
131670-303 PLUG, ADAPTERPLUG, ADAPTER
-
140623-976 ADAPTER, FITTINGADAPTER, FITTING
-
150623-373 CLAMP, HOSECLAMP, HOSE
-
160610-076 HOSE, COOLANT, DRAIN (10 FT)HOSE, COOLANT, DRAIN (10 FT)
-
170610-539 HOSE, COOLANT, T, FITTING/INLINE HEATERHOSE, COOLANT, T, FITTING/INLINE HEATER
-
180623-736 CLAMP, HOSECLAMP, HOSE
-
192606-502 T, FITTING, DOUBLET, FITTING, DOUBLE
-
200609-182 HEATER, INNERLINEHEATER, INNERLINE
-
210619-619 PROTECTOR, HOSEPROTECTOR, HOSE
-
220610-453 HOSE, COOLANT, HEATER/ENGINEHOSE, COOLANT, HEATER/ENGINE
-
231623-285 CLAMP, HOSECLAMP, HOSE
-
240123-788 CABLE TIE, 8 IN.CABLE TIE, 8 IN.
-
250610-520 HOSE, COOLANT, Y, FITTING/T, FITTINGHOSE, COOLANT, Y, FITTING/T, FITTING
-
262606-625 Y, FITTINGY, FITTING
-
270610-518 HOSE, COOLANT, THROTTLE BODY/Y, FITTINGHOSE, COOLANT, THROTTLE BODY/Y, FITTING
-
280610-519 HOSE, COOLANT, THERMOSTAT/Y, FITTINGHOSE, COOLANT, THERMOSTAT/Y, FITTING
-
290610-500 HOSE, COOLANT, FILLER NECK/ENGINEHOSE, COOLANT, FILLER NECK/ENGINE
-
300610-488 HOSE, FILLER NECK/REAR HEAT EXCHANGERHOSE, FILLER NECK/REAR HEAT EXCHANGER
-
312606-859 NECK, FILLERNECK, FILLER
-
322606-284 CAP, FILLER NECKCAP, FILLER NECK
-
332706-078 HEAT EXCHANGER (REAR)HEAT EXCHANGER (REAR)
-
348060-706 RIVETRIVET
-
351623-197 CLAMP, HOSECLAMP, HOSE
