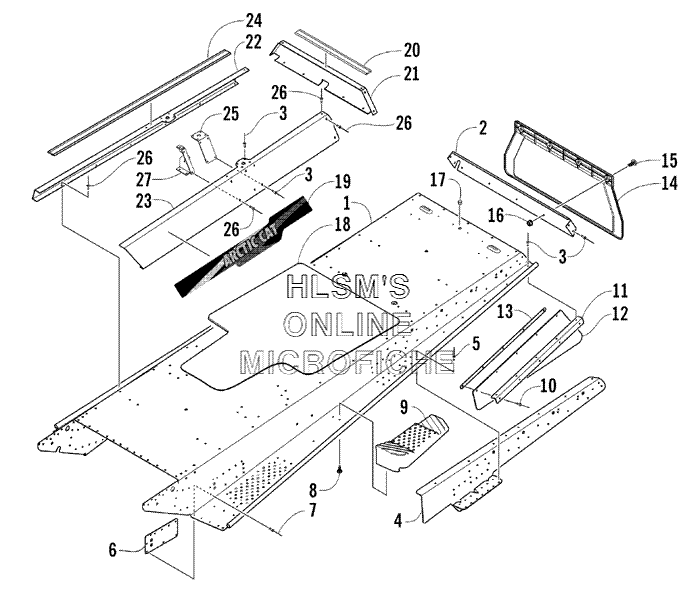

TUNNEL ASSEMBLY для Arctic Cat Bearcat Wide Track - 2005 года выпуска

№

Артикул

Название
1

1718-362 TUNNEL ASSEMBLY (INC. 2, 5)

TUNNEL ASSEMBLY (INC. 2, 5)
2

2706-288 PLATE, END, TUNNEL

PLATE, END, TUNNEL
3

8060-504 RIVET

RIVET
4

0707-752 BRACKET, SUSPENSION MOUNTING (RIGHT)

BRACKET, SUSPENSION MOUNTING (RIGHT)
4

0707-751 BRACKET, SUSPENSION MOUNTING (LEFT)

BRACKET, SUSPENSION MOUNTING (LEFT)
5

0123-418 RIVET

RIVET
6

2706-277 PLATE, SUSPENSION MOUNTING (FRONT)

PLATE, SUSPENSION MOUNTING (FRONT)
7

0623-072 RIVET

RIVET
8

0623-057 SCREW, SELF, TAPPING

SCREW, SELF, TAPPING
9

1606-478 FOOTREST (REAR/RIGHT)

FOOTREST (REAR/RIGHT)
9

1606-479 FOOTREST (REAR/LEFT)

FOOTREST (REAR/LEFT)
10

8060-428 RIVET

RIVET
11

2706-179 RETAINER, SIDE SNOWFLAP

RETAINER, SIDE SNOWFLAP
12

0616-660 SNOWFLAP, SIDE

SNOWFLAP, SIDE
13

0616-709 STRAP, SIDE SNOWFLAP

STRAP, SIDE SNOWFLAP
14

3606-740 SNOWFLAP

SNOWFLAP
15

8017-580 SCREW, MACHINE

SCREW, MACHINE
16

8048-366 NUT, LOCK

NUT, LOCK
17

0623-562 PLUG, HOLE

PLUG, HOLE
18

2606-748 PAD, TOOLBOX

PAD, TOOLBOX
19

6611-154 DECAL, TUNNEL (RIGHT)

DECAL, TUNNEL (RIGHT)
19

6611-155 DECAL, TUNNEL (LEFT)

DECAL, TUNNEL (LEFT)
20

2606-924 SEAL, SEAT, BASE

SEAL, SEAT, BASE
21

2706-283 PLATE, SEAT RISER (REAR)

PLATE, SEAT RISER (REAR)
22

2706-914 PLATE, SEAT RISER (RIGHT)

PLATE, SEAT RISER (RIGHT)
23

2706-915 PLATE, SEAT RISER (LEFT)

PLATE, SEAT RISER (LEFT)
24

2606-923 SEAL, SEAT, BASE

SEAL, SEAT, BASE
25

2706-282 BRACKET, RISER REINFORCEMENT

BRACKET, RISER REINFORCEMENT
26

8060-706 RIVET

RIVET
27

2706-280 BRACKET, MOUNTING, TANK HOLD, DOWN (RIGHT)

BRACKET, MOUNTING, TANK HOLD, DOWN (RIGHT)
27

2706-281 BRACKET, MOUNTING, TANK HOLD, DOWN (LEFT)

BRACKET, MOUNTING, TANK HOLD, DOWN (LEFT)
