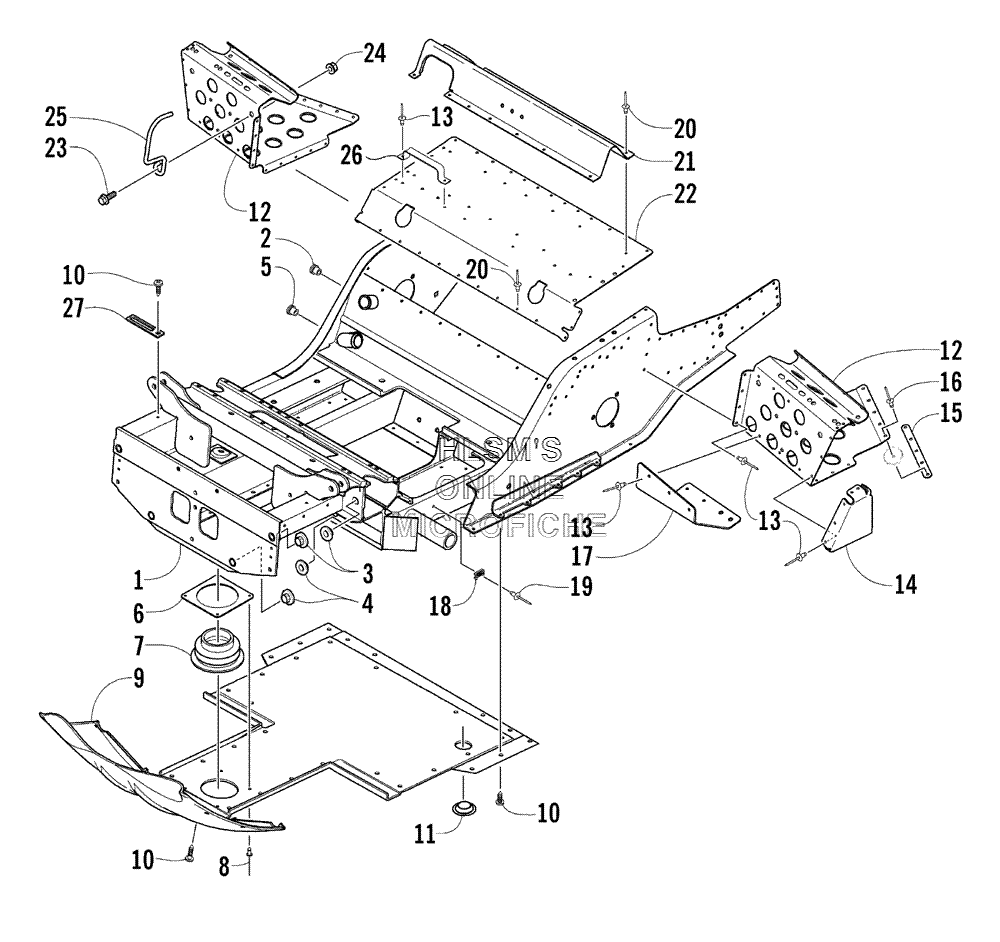

FRONT FRAME AND FOOTREST ASSEMBLY для Arctic Cat Bearcat Wide Track - 2005 года выпуска`
-
№АртикулНазвание
-
10707-733 CHASSIS ASSEMBLY (INC. 2, 5)CHASSIS ASSEMBLY (INC. 2, 5)
-
20623-581 INSERTINSERT
-
30607-421 INSERT A, ARM MOUNT (UPPER)INSERT A, ARM MOUNT (UPPER)
-
40607-420 INSERT A, ARM MOUNT (LOWER)INSERT A, ARM MOUNT (LOWER)
-
50623-582 INSERTINSERT
-
60712-952 RING, EXHAUST OUTLETRING, EXHAUST OUTLET
-
71612-027 BOOT, EXHAUSTBOOT, EXHAUST
-
88060-508 RIVETRIVET
-
92706-028 BELLY PAN, CENTERBELLY PAN, CENTER
-
100623-784 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
112606-367 PLUG, OIL DRAIN ACCESSPLUG, OIL DRAIN ACCESS
-
122706-270 FOOTREST (RIGHT)FOOTREST (RIGHT)
-
122706-271 FOOTREST (LEFT)FOOTREST (LEFT)
-
130623-166 RIVETRIVET
-
140707-746 BRACKET, FOOTREST (RIGHT)BRACKET, FOOTREST (RIGHT)
-
140707-745 BRACKET, FOOTREST (LEFT)BRACKET, FOOTREST (LEFT)
-
152706-110 PLATE, BACKING, FOOTRESTPLATE, BACKING, FOOTREST
-
160623-282 RIVETRIVET
-
170707-748 PLATE, BACKING, FOOTREST (RIGHT)PLATE, BACKING, FOOTREST (RIGHT)
-
170707-747 PLATE, BACKING, FOOTREST (LEFT)PLATE, BACKING, FOOTREST (LEFT)
-
180623-228 MOUNT, CABLE TIEMOUNT, CABLE TIE
-
198060-506 RIVETRIVET
-
200123-418 RIVETRIVET
-
210707-749 SUPPORT, GAS TANKSUPPORT, GAS TANK
-
222706-272 COVER (FRONT)COVER (FRONT)
-
238020-040 SCREW, CAPSCREW, CAP
-
248048-366 NUT, LOCKNUT, LOCK
-
250745-200 BRACKET, HARNESSBRACKET, HARNESS
-
260707-710 BRACKET, HOLD, DOWNBRACKET, HOLD, DOWN
-
273002-964 CLAMP, WIRECLAMP, WIRE
