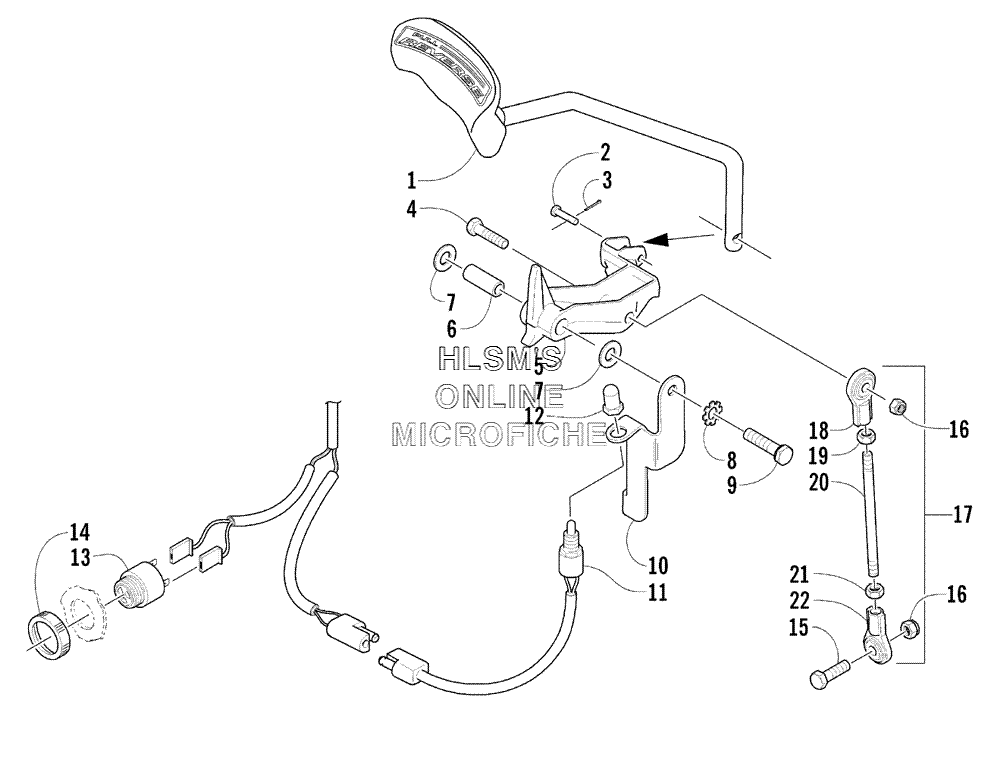

REVERSE SHIFT LEVER ASSEMBLY для Arctic Cat Bearcat Wide Track - 2005 года выпуска`
-
№АртикулНазвание
-
11602-294 LEVER, REVERSELEVER, REVERSE
-
20623-641 PIN, CLEVISPIN, CLEVIS
-
30117-868 PIN, COTTERPIN, COTTER
-
48002-137 SCREW, CAPSCREW, CAP
-
50702-632 SHIFT PIVOTSHIFT PIVOT
-
61602-830 AXLEAXLE
-
78050-247 WASHERWASHER
-
88053-242 WASHER, LOCK, EXTERNAL TOOTHWASHER, LOCK, EXTERNAL TOOTH
-
98002-140 SCREW, CAPSCREW, CAP
-
100702-465 BRACKET, REVERSE SWITCHBRACKET, REVERSE SWITCH
-
110630-011 SWITCH, ALARMSWITCH, ALARM
-
120630-013 BOOT, SWITCHBOOT, SWITCH
-
130630-010 ALARM, REVERSE (INC. 14)ALARM, REVERSE (INC. 14)
-
140630-017 RING, RETAININGRING, RETAINING
-
158002-132 SCREW, CAPSCREW, CAP
-
168040-426 NUT, LOCKNUT, LOCK
-
170702-347 LINKAGE, SHIFTING, ASSEMBLY (INC. 18, 22)LINKAGE, SHIFTING, ASSEMBLY (INC. 18, 22)
-
180602-305 ROD END (LEFT)ROD END (LEFT)
-
190623-260 NUT, JAM (LEFT)NUT, JAM (LEFT)
-
210123-144 NUT, JAM (RIGHT)NUT, JAM (RIGHT)
-
220602-322 ROD END (RIGHT)ROD END (RIGHT)
