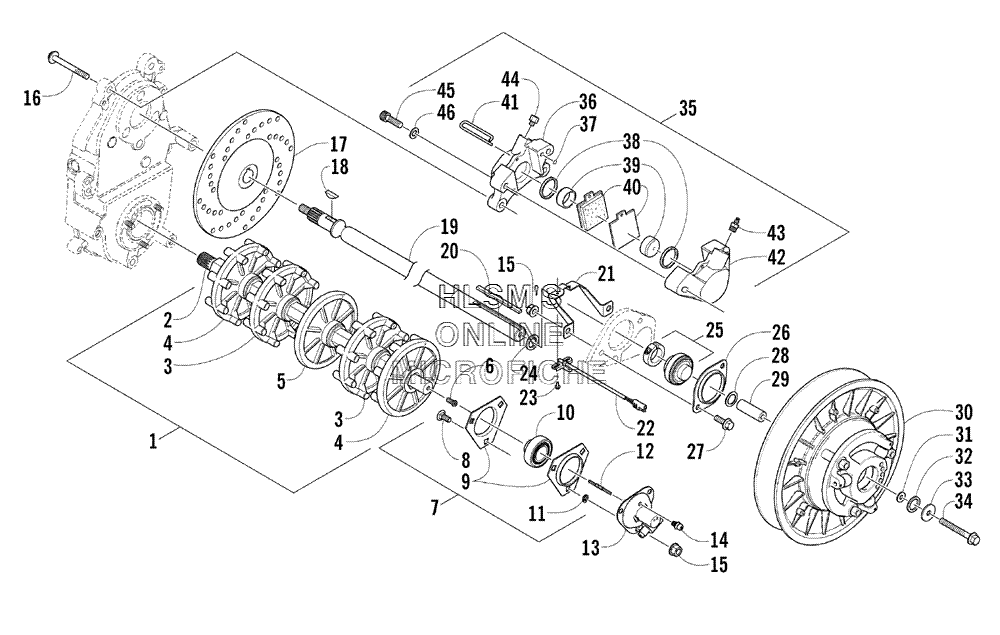

DRIVE TRAIN SHAFTS AND BRAKE ASSEMBLIES для Arctic Cat Bearcat Wide Track - 2005 года выпуска`
-
№АртикулНазвание
-
10728-140 TRACK DRIVE ASSEMBLY (INC. 2, 6)TRACK DRIVE ASSEMBLY (INC. 2, 6)
-
21602-794 DRIVESHAFTDRIVESHAFT
-
30602-864 SPROCKET, DRIVE, INNERSPROCKET, DRIVE, INNER
-
40602-865 SPROCKET, DRIVE, OUTERSPROCKET, DRIVE, OUTER
-
50602-884 IDLER, CENTERIDLER, CENTER
-
60120-247 BUSHING, DRIVEBUSHING, DRIVE
-
70702-567 PLATE, FLANGE, BEARING ASSEMBLY (INC. 8, 11)PLATE, FLANGE, BEARING ASSEMBLY (INC. 8, 11)
-
88011-130 BOLT, CARRIAGEBOLT, CARRIAGE
-
90602-198 PLATE, FLANGEPLATE, FLANGE
-
101602-374 BEARING, 1 IN. W/LOCK COLLARBEARING, 1 IN. W/LOCK COLLAR
-
110623-810 RING, SOLDERRING, SOLDER
-
120602-154 CABLE, ADAPTERCABLE, ADAPTER
-
130620-031 ADAPTER, DRIVE (INC. 14)ADAPTER, DRIVE (INC. 14)
-
140104-062 FITTING, GREASEFITTING, GREASE
-
158048-426 NUT, LOCKNUT, LOCK
-
168020-315 SCREW, CAPSCREW, CAP
-
171602-205 DISC, BRAKEDISC, BRAKE
-
180602-598 KEYKEY
-
190702-362 SHAFT, DRIVENSHAFT, DRIVEN
-
200101-076 KEYKEY
-
212706-209 BRACKET, MOUNTING, MAGNETIC SWITCHBRACKET, MOUNTING, MAGNETIC SWITCH
-
220630-008 SWITCH, MAGNETICSWITCH, MAGNETIC
-
230623-137 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
241602-396 MAGNETMAGNET
-
251602-821 BEARING, 1 IN. W/LOCK COLLAR, RE, LUBRICATIVEBEARING, 1 IN. W/LOCK COLLAR, RE, LUBRICATIVE
-
260602-892 PLATE, FLANGEPLATE, FLANGE
-
278020-132 SCREW, CAPSCREW, CAP
-
280623-118 WASHERWASHER
-
280623-119 WASHERWASHER
-
290648-066 SHAFT, STUBSHAFT, STUB
-
300726-173 CLUTCH, DRIVENCLUTCH, DRIVEN
-
310123-053 WASHERWASHER
-
320123-694 WASHERWASHER
-
330123-019 WASHERWASHER
-
348020-142 SCREW, CAPSCREW, CAP
-
350602-829 CALIPER, BRAKE, ASSEMBLY (INC. 36, 46)CALIPER, BRAKE, ASSEMBLY (INC. 36, 46)
-
370602-729 O-RING, HOUSINGO-RING, HOUSING
-
380602-583 O-RINGO-RING
-
390602-708 PISTONPISTON
-
400702-229 PAD, BRAKE, SET (INC. 41)PAD, BRAKE, SET (INC. 41)
-
410602-706 PIN, RETAININGPIN, RETAINING
-
430602-707 SCREW, BLEED, ASSEMBLYSCREW, BLEED, ASSEMBLY
-
440602-590 FITTING, ADAPTERFITTING, ADAPTER
-
458005-677 SCREW, CAPSCREW, CAP
-
468050-272 WASHERWASHER
