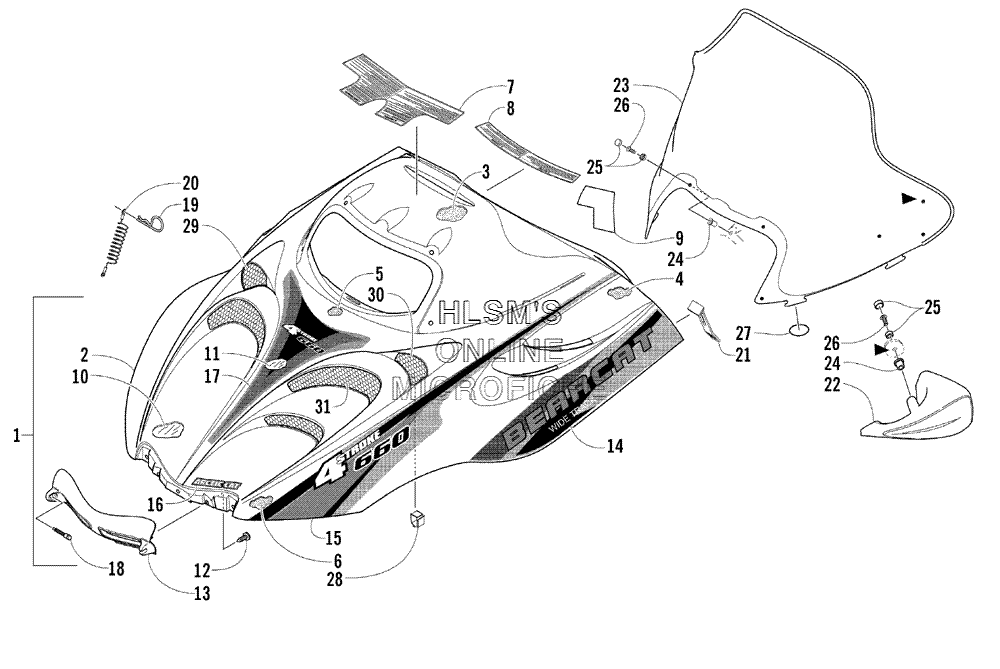

HOOD AND WINDSHIELD ASSEMBLY для Arctic Cat Bearcat Wide Track - 2005 года выпуска`
-
№АртикулНазвание
-
11718-612 HOOD W/DECALS (INC. 2, 17)HOOD W/DECALS (INC. 2, 17)
-
21718-201 HOOD W/O DECALS (INC. 3, 13)HOOD W/O DECALS (INC. 3, 13)
-
30717-166 FOAM, HOOD (UPPER/MIDDLE/RIGHT)FOAM, HOOD (UPPER/MIDDLE/RIGHT)
-
40717-140 FOAM, HOOD (REAR/RIGHT)FOAM, HOOD (REAR/RIGHT)
-
40717-141 FOAM, HOOD (REAR/LEFT)FOAM, HOOD (REAR/LEFT)
-
50717-138 FOAM, HOOD (MIDDLE)FOAM, HOOD (MIDDLE)
-
60717-146 FOAM, HOOD (FRONT/RIGHT)FOAM, HOOD (FRONT/RIGHT)
-
60717-147 FOAM, HOOD (FRONT/LEFT)FOAM, HOOD (FRONT/LEFT)
-
73611-485 DECAL, WARNING, GENERAL AND BRAKEDECAL, WARNING, GENERAL AND BRAKE
-
83611-970 DECAL, CAUTION, ENGINE/BATTERY/FUELDECAL, CAUTION, ENGINE/BATTERY/FUEL
-
93611-580 DECAL REVERSEDECAL REVERSE
-
101606-938 FOIL, HOOD (RIGHT)FOIL, HOOD (RIGHT)
-
101606-939 FOIL, HOOD (LEFT)FOIL, HOOD (LEFT)
-
112606-935 FOIL, HOODFOIL, HOOD
-
120623-797 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
131606-720 HINGE, HOODHINGE, HOOD
-
146611-152 DECAL, HOOD (LOWER/RIGHT)DECAL, HOOD (LOWER/RIGHT)
-
146611-153 DECAL, HOOD (LOWER/LEFT)DECAL, HOOD (LOWER/LEFT)
-
156611-150 DECAL, HOOD (UPPER/RIGHT)DECAL, HOOD (UPPER/RIGHT)
-
156611-151 DECAL, HOOD (UPPER/LEFT)DECAL, HOOD (UPPER/LEFT)
-
165611-409 DECAL, "ARCTIC CAT", HOODDECAL, "ARCTIC CAT", HOOD
-
176611-156 DECAL, HOOD, CRESTDECAL, HOOD, CREST
-
181623-016 SCREW, MACHINESCREW, MACHINE
-
190623-805 CLIP, HAIRPINCLIP, HAIRPIN
-
203606-746 CABLE, HOODCABLE, HOOD
-
211606-067 STRAP, HOLD, DOWNSTRAP, HOLD, DOWN
-
222639-477 MIRROR, KIT (INC. SIX NO. 24, 26)MIRROR, KIT (INC. SIX NO. 24, 26)
-
232606-753 WINDSHIELDWINDSHIELD
-
240623-845 NUT, EXPANSIONNUT, EXPANSION
-
250124-054 SNAP CAP W/WASHERSNAP CAP W/WASHER
-
260623-902 SCREW, MACHINESCREW, MACHINE
-
270616-032 O-RINGO-RING
-
280123-394 CLIP, RETAININGCLIP, RETAINING
-
292606-890 SCREEN, HOOD (RIGHT)SCREEN, HOOD (RIGHT)
-
302606-891 SCREEN, HOOD (UPPER/LEFT)SCREEN, HOOD (UPPER/LEFT)
-
312606-889 SCREEN, HOOD (LEFT)SCREEN, HOOD (LEFT)
