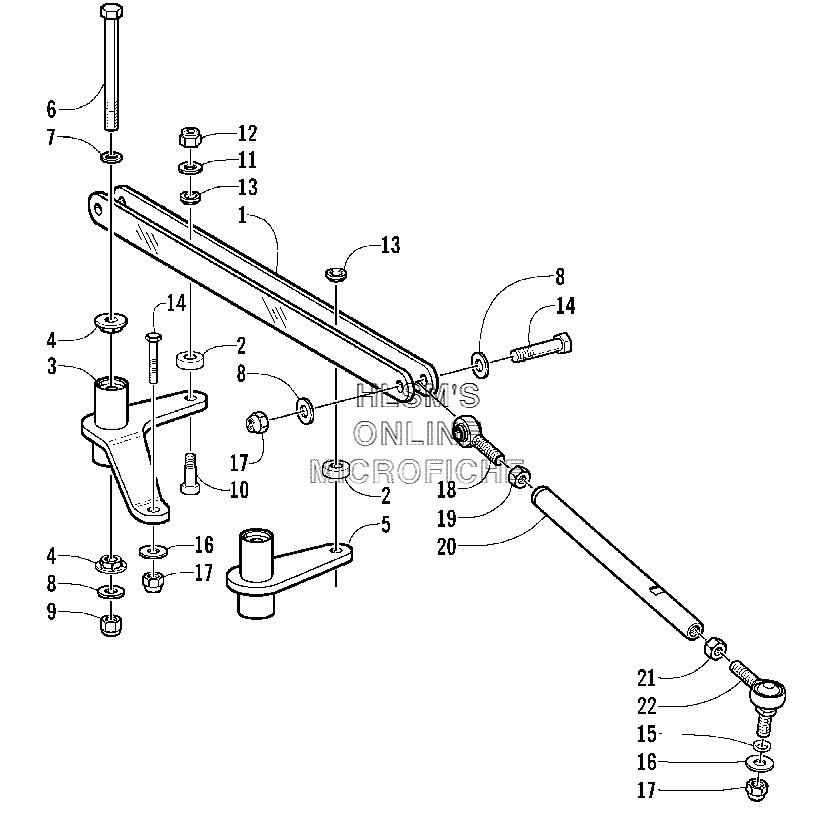

TIE ROD ASSEMBLY для Arctic Cat ZR 900 EARLY BUILD - 2003 года выпуска
-
№АртикулНазвание
-
10705-370 DRAG LINK (INC. 2)DRAG LINK (INC. 2)
-
20605-541 BEARINGBEARING
-
30705-368 ARM, STEERING, ASSEMBLY (INC. TWO NO. 4)ARM, STEERING, ASSEMBLY (INC. TWO NO. 4)
-
40605-540 INSERTINSERT
-
50705-366 ARM, STEERING, IDLER, ASSEMBLY (INC. TWO NO. 4)ARM, STEERING, IDLER, ASSEMBLY (INC. TWO NO. 4)
-
68002-234 SCREW, CAPSCREW, CAP
-
70623-439 WASHERWASHER
-
88050-277 WASHERWASHER
-
98040-486 NUT, LOCKNUT, LOCK
-
100623-920 SCREW, CAPSCREW, CAP
-
118050-272 WASHERWASHER
-
120623-422 NUT, LOCKNUT, LOCK
-
130605-522 AXLE, DRAG LINKAXLE, DRAG LINK
-
148004-226 SCREW, CAPSCREW, CAP
-
150605-014 O-RINGO-RING
-
160623-044 WASHERWASHER
-
170623-025 NUT, LOCKNUT, LOCK
-
180605-504 BALL JOINT, TIE ROD (RIGHT)BALL JOINT, TIE ROD (RIGHT)
-
190623-294 NUT, HEX (RIGHT)NUT, HEX (RIGHT)
-
200605-352 TUBE, TIE ROD, SPINDLETUBE, TIE ROD, SPINDLE
-
210123-917 NUT, HEX (LEFT)NUT, HEX (LEFT)
-
220605-511 BALL JOINT, STEERING (LEFT)BALL JOINT, STEERING (LEFT)
