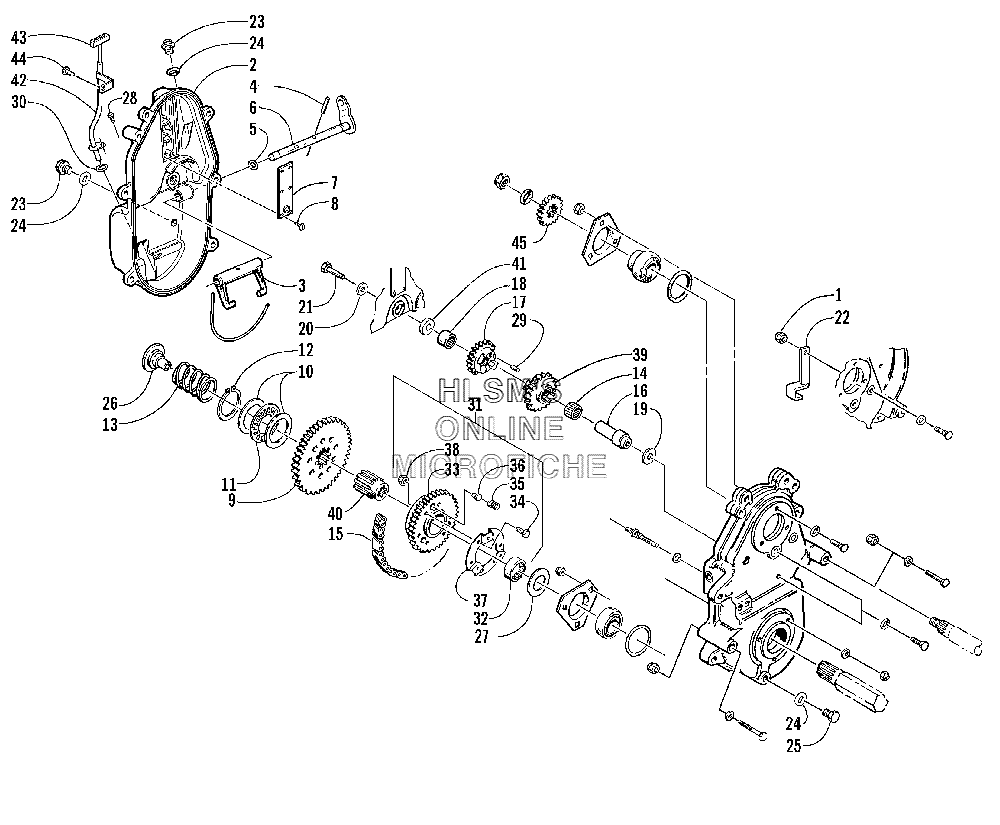

DRIVE/REVERSE DROPCASE ASSEMBLY (OPTIONAL) для Arctic Cat ZR 900 EARLY BUILD - 2003 года выпуска`
-
№АртикулНазвание
-
10623-122 NUT, LOCKNUT, LOCK
-
21602-222 COVER, DROPCASECOVER, DROPCASE
-
30602-085 FORK, SHIFTFORK, SHIFT
-
40623-542 PIN, SPRINGPIN, SPRING
-
50602-021 SEAL, O-RINGSEAL, O-RING
-
60702-350 SHAFT, SHIFT FORKSHAFT, SHIFT FORK
-
71602-151 COVER, OIL VENTCOVER, OIL VENT
-
80623-081 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
90702-048 GEAR, REVERSE (55 TEETH) (INC. 10, 12)GEAR, REVERSE (55 TEETH) (INC. 10, 12)
-
100602-023 WASHER, THRUSTWASHER, THRUST
-
110602-022 BEARING, THRUSTBEARING, THRUST
-
120602-024 RING, RETAININGRING, RETAINING
-
130602-028 SPRING, RETURNSPRING, RETURN
-
140602-205 BEARING, CAGEDBEARING, CAGED
-
150602-972 CHAIN, 72P (15 WIDE)CHAIN, 72P (15 WIDE)
-
160602-872 SHAFT, REVERSESHAFT, REVERSE
-
170702-365 IDLER, REVERSE ASSEMBLY (19 TEETH) (INC. 18)IDLER, REVERSE ASSEMBLY (19 TEETH) (INC. 18)
-
181602-045 BEARINGBEARING
-
190602-215 SPACER, REVERSE IDLERSPACER, REVERSE IDLER
-
208050-242 WASHERWASHER
-
218002-130 SCREW, CAPSCREW, CAP
-
220602-900 BRACKET, CHAIN BACKINGBRACKET, CHAIN BACKING
-
230623-293 PLUG, DRAIN (ONE INCLUDED IN KIT)PLUG, DRAIN (ONE INCLUDED IN KIT)
-
241602-213 O-RINGO-RING
-
250602-479 PLUG, DRAINPLUG, DRAIN
-
260602-783 RETAINER, SHAFT EXTENSIONRETAINER, SHAFT EXTENSION
-
270602-012 SPACER, SHAFTSPACER, SHAFT
-
280623-786 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
290602-366 ALIGNER, IDLER, PINALIGNER, IDLER, PIN
-
300605-014 O, O-RINGIL LEVEL STICK TUBEO, O-RINGIL LEVEL STICK TUBE
-
310702-370 SPROCKET ASSEMBLY (39 TEETH) (INC. 32, 38)SPROCKET ASSEMBLY (39 TEETH) (INC. 32, 38)
-
310702-394 SPROCKET ASSEMBLY (40 TEETH) (INC. 32, 38) (OVER 5, 000 FT ALT.)SPROCKET ASSEMBLY (40 TEETH) (INC. 32, 38) (OVER 5, 000 FT ALT.)
-
320602-016 BEARINGBEARING
-
340623-182 SCREW, CAPSCREW, CAP
-
350602-138 SPRING, COMPRESSIONSPRING, COMPRESSION
-
360602-133 PIN, SLIPPIN, SLIP
-
370602-144 RETAINER, SPRINGRETAINER, SPRING
-
380123-430 NUT, LOCKNUT, LOCK
-
390602-899 SPROCKET, IDLER (22 TEETH)SPROCKET, IDLER (22 TEETH)
-
401602-048 EXTENSION, DRIVESHAFTEXTENSION, DRIVESHAFT
-
411602-044 WASHER, THRUSTWASHER, THRUST
-
421602-106 TUBE, OIL LEVEL STICKTUBE, OIL LEVEL STICK
-
431602-107 STICK, OIL LEVELSTICK, OIL LEVEL
-
440623-640 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
450602-974 SPROCKET (24 TEETH)SPROCKET (24 TEETH)
-
451602-118 SPROCKET (23 TEETH) (OVER 5, 000 FT ALT.)SPROCKET (23 TEETH) (OVER 5, 000 FT ALT.)
