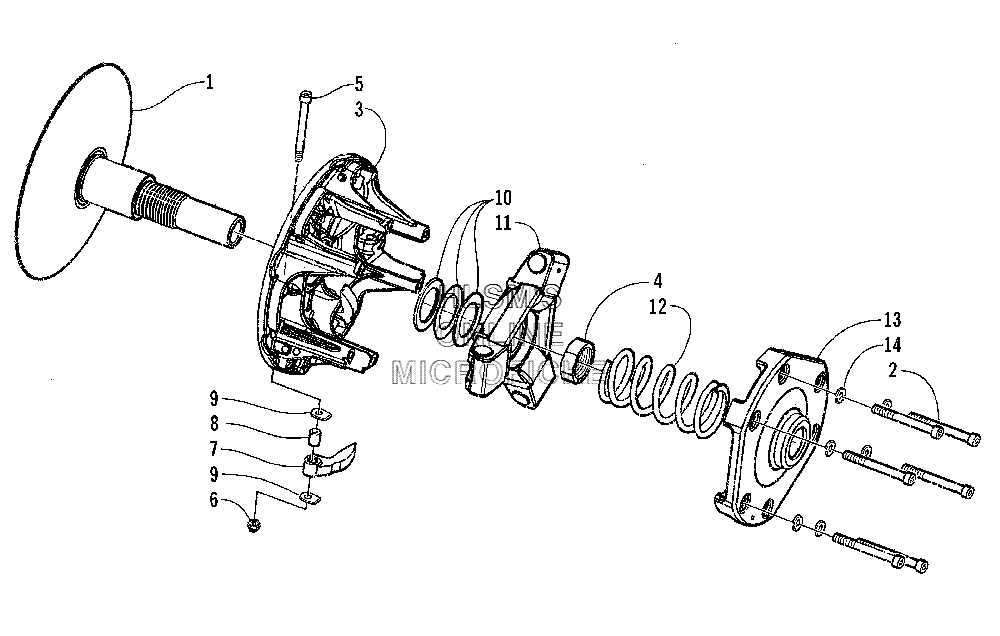

DRIVE CLUTCH для Arctic Cat ZR 900 EARLY BUILD - 2003 года выпуска

  • №
    Артикул
    Название
  • -
    0725-374 CLUTCH, DRIVE ASSY (71.5)
    CLUTCH, DRIVE ASSY (71.5)
  • -
    1639-030 CAM ARM KIT (INC. 5, 6, 8, AND 9)
    CAM ARM KIT (INC. 5, 6, 8, AND 9)
  • -
    0746-648 UNCALIBRATED DRIVE CLUTCH
    UNCALIBRATED DRIVE CLUTCH
  • 1
    0646-359 SHEAVE, STATIONARY
    SHEAVE, STATIONARY
  • 2
    0623-596 SCREW, MACHINE
    SCREW, MACHINE
  • 3
    0646-351 SHEAVE, MOVABLE
    SHEAVE, MOVABLE
  • 4
    0646-140 NUT
    NUT
  • 5
    0646-295 PIN, CAM ARM
    PIN, CAM ARM
  • 6
    0623-392 NUT, LOCK
    NUT, LOCK
  • 7
    0746-640 ARM, CAM (INC. 8)
    ARM, CAM (INC. 8)
  • 8
    0646-160 BEARING, CAM ARM
    BEARING, CAM ARM
  • 9
    0646-101 WASHER, CAM ARM
    WASHER, CAM ARM
  • 10
    0646-265 WASHER, SPACER
    WASHER, SPACER
  • 11
    0746-115 SPIDER ASSEMBLY
    SPIDER ASSEMBLY
  • 12
    0646-155 SPRING, DRIVE CLUTCH (PURPLE)
    SPRING, DRIVE CLUTCH (PURPLE)
  • 13
    0746-113 COVER
    COVER
  • 14
    8051-212 WASHER, LOCK
    WASHER, LOCK
