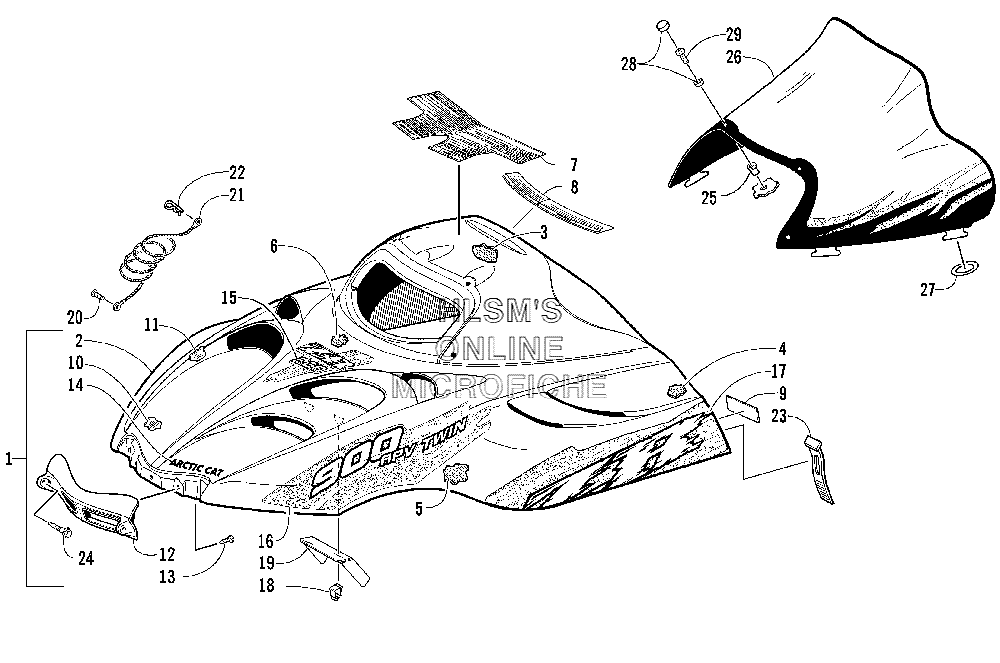

HOOD AND WINDSHIELD ASSEMBLY для Arctic Cat ZR 900 EARLY BUILD - 2003 года выпуска
-
№АртикулНазвание
-
11718-215 HOOD W/DECALS (INC. 2, 17)HOOD W/DECALS (INC. 2, 17)
-
21718-031 HOOD W/O DECALS (INC. 3, 13)HOOD W/O DECALS (INC. 3, 13)
-
30617-324 FOAM, HOOD (UPPER/MIDDLE/RIGHT)FOAM, HOOD (UPPER/MIDDLE/RIGHT)
-
30617-325 FOAM, HOOD (UPPER/MIDDLE/LEFT)FOAM, HOOD (UPPER/MIDDLE/LEFT)
-
40617-322 FOAM, HOOD (REAR) (RIGHT)FOAM, HOOD (REAR) (RIGHT)
-
40617-323 FOAM, HOOD (REAR) (LEFT)FOAM, HOOD (REAR) (LEFT)
-
50617-326 FOAM, HOOD (FRONT) (RIGHT)FOAM, HOOD (FRONT) (RIGHT)
-
50617-327 FOAM, HOOD (FRONT) (LEFT)FOAM, HOOD (FRONT) (LEFT)
-
60617-328 FOAM, HOOD (MIDDLE)FOAM, HOOD (MIDDLE)
-
73611-485 DECAL, WARNING, GENERAL AND BRAKEDECAL, WARNING, GENERAL AND BRAKE
-
83611-970 DECAL, CAUTION, ENGINE/BATTERY/FUELDECAL, CAUTION, ENGINE/BATTERY/FUEL
-
93611-509 DECAL, WARNING, SEATING CAPACITYDECAL, WARNING, SEATING CAPACITY
-
101606-938 FOIL, HOOD (RIGHT)FOIL, HOOD (RIGHT)
-
101606-939 FOIL, HOOD (LEFT)FOIL, HOOD (LEFT)
-
112606-233 FOIL, HOOD (UPPER/RIGHT)FOIL, HOOD (UPPER/RIGHT)
-
121606-720 HINGE, HOODHINGE, HOOD
-
130623-797 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
143611-187 DECAL, "ARCTIC CAT", HOODDECAL, "ARCTIC CAT", HOOD
-
154611-929 DECAL, HOOD, CREST (GREEN)DECAL, HOOD, CREST (GREEN)
-
164611-682 DECAL, "900", HOOD (RIGHT) (GREEN)DECAL, "900", HOOD (RIGHT) (GREEN)
-
164611-683 DECAL, "900", HOOD (LEFT) (GREEN)DECAL, "900", HOOD (LEFT) (GREEN)
-
174611-670 DECAL, HOOD (LOWER/RIGHT) (GREEN)DECAL, HOOD (LOWER/RIGHT) (GREEN)
-
174611-671 DECAL, HOOD (LOWER/LEFT) (GREEN)DECAL, HOOD (LOWER/LEFT) (GREEN)
-
180123-394 CLIPCLIP
-
192606-613 DEFLECTOR, AIRDEFLECTOR, AIR
-
200623-057 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
212606-247 CABLE, HOODCABLE, HOOD
-
220623-805 CLIP, HAIRPINCLIP, HAIRPIN
-
231606-067 STRAP, HOLD, DOWNSTRAP, HOLD, DOWN
-
240623-690 SCREW, MACHINESCREW, MACHINE
-
250623-845 NUT, EXPANSIONNUT, EXPANSION
-
262606-810 WINDSHIELDWINDSHIELD
-
270616-032 O-RINGO-RING
-
280124-054 SNAP CAP W/WASHERSNAP CAP W/WASHER
-
290623-902 SCREW, MACHINESCREW, MACHINE
