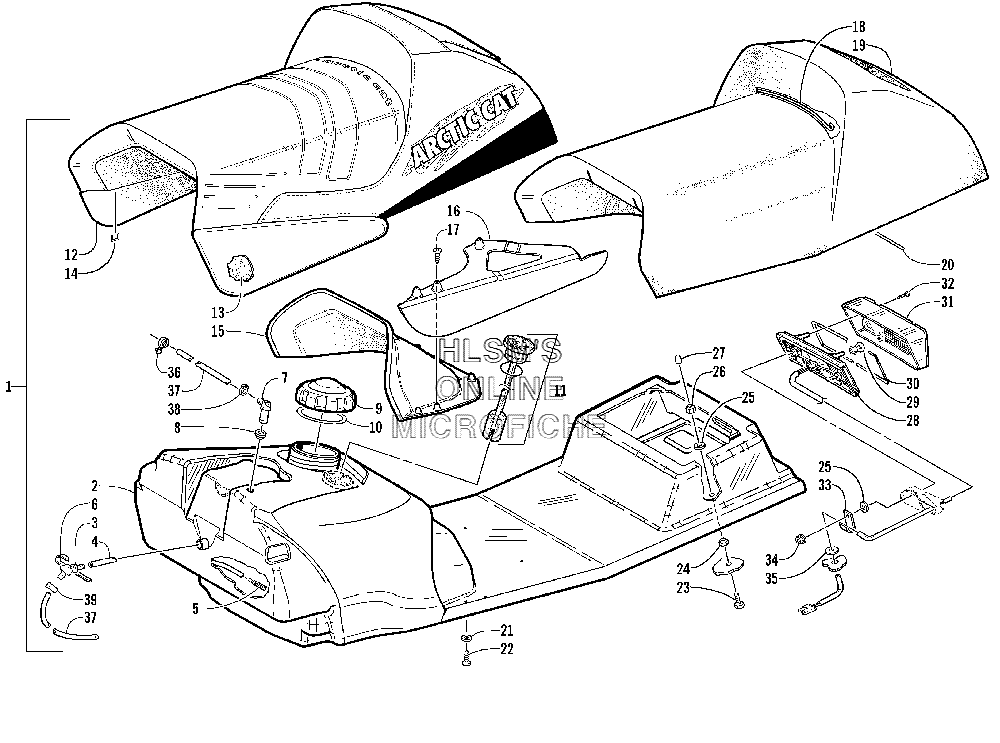

GAS TANK- SEAT- AND TAILLIGHT ASSEMBLY для Arctic Cat ZR 900 EARLY BUILD - 2003 года выпуска`
-
№АртикулНазвание
-
11718-276 COMPLETE SEAT ASSEMBLY (INC. 2, 22)COMPLETE SEAT ASSEMBLY (INC. 2, 22)
-
20770-607 TANK, GAS/SEAT, BASE (INC. 3, 11)TANK, GAS/SEAT, BASE (INC. 3, 11)
-
31670-321 OUTLET, TANKOUTLET, TANK
-
46101-001 HOSE, GASLINE (100 FT)HOSE, GASLINE (100 FT)
-
46101-009 HOSE, GASLINE (50 FT)HOSE, GASLINE (50 FT)
-
50510-358 STRAINER, GAS TANKSTRAINER, GAS TANK
-
60670-289 TAPE, TEFLONTAPE, TEFLON
-
71670-324 VENT, GAS TANKVENT, GAS TANK
-
81670-325 GROMMET, GAS TANKGROMMET, GAS TANK
-
91670-199 CAP, GAS TANK (INC. 10)CAP, GAS TANK (INC. 10)
-
101670-228 SEAL, TANK CAPSEAL, TANK CAP
-
111670-241 GAUGE, FUEL, ASSEMBLY W/GASKET (PRESS, FIT)GAUGE, FUEL, ASSEMBLY W/GASKET (PRESS, FIT)
-
122706-035 COVER, SEAT (INC. 13)COVER, SEAT (INC. 13)
-
130617-417 FOAM, TUNNEL PADFOAM, TUNNEL PAD
-
140624-528 STAPLE, SEAT COVERSTAPLE, SEAT COVER
-
151606-126 INSERT, SEAT FOAMINSERT, SEAT FOAM
-
161606-518 INSERT, SEAT PAD (RIGHT)INSERT, SEAT PAD (RIGHT)
-
161606-519 INSERT, SEAT PAD (LEFT)INSERT, SEAT PAD (LEFT)
-
170623-309 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
181606-150 WIRE, SEATWIRE, SEAT
-
191706-197 FOAM, SEAT CUSHIONFOAM, SEAT CUSHION
-
200606-057 WIRE, SEATWIRE, SEAT
-
218050-217 WASHERWASHER
-
220623-783 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
238002-042 SCREW, CAPSCREW, CAP
-
248041-366 NUT, LOCKNUT, LOCK
-
250623-184 WASHERWASHER
-
268040-366 NUT, LOCKNUT, LOCK
-
270623-404 CAP, PROTECTORCAP, PROTECTOR
-
280609-091 TAILLIGHT W/SOCKET ASSEMBLYTAILLIGHT W/SOCKET ASSEMBLY
-
290109-460 BULBBULB
-
300609-092 GASKET, TAILLIGHT LENSGASKET, TAILLIGHT LENS
-
310609-090 LENS, TAILLIGHTLENS, TAILLIGHT
-
320609-093 SCREW, RETAININGSCREW, RETAINING
-
333002-964 CLAMP, WIRECLAMP, WIRE
-
340623-038 NUT, LOCKNUT, LOCK
-
350617-136 SEAL, FOAM, SEAT, BASESEAL, FOAM, SEAT, BASE
-
360623-101 CLIP, ROUTING, SNAP, INNERCLIP, ROUTING, SNAP, INNER
-
370610-015 HOSE, VENT (100 FT)HOSE, VENT (100 FT)
-
370610-016 HOSE, VENT (25 FT)HOSE, VENT (25 FT)
-
380623-063 CLAMP, HOSECLAMP, HOSE
-
390124-045 CLAMP, HOSECLAMP, HOSE
