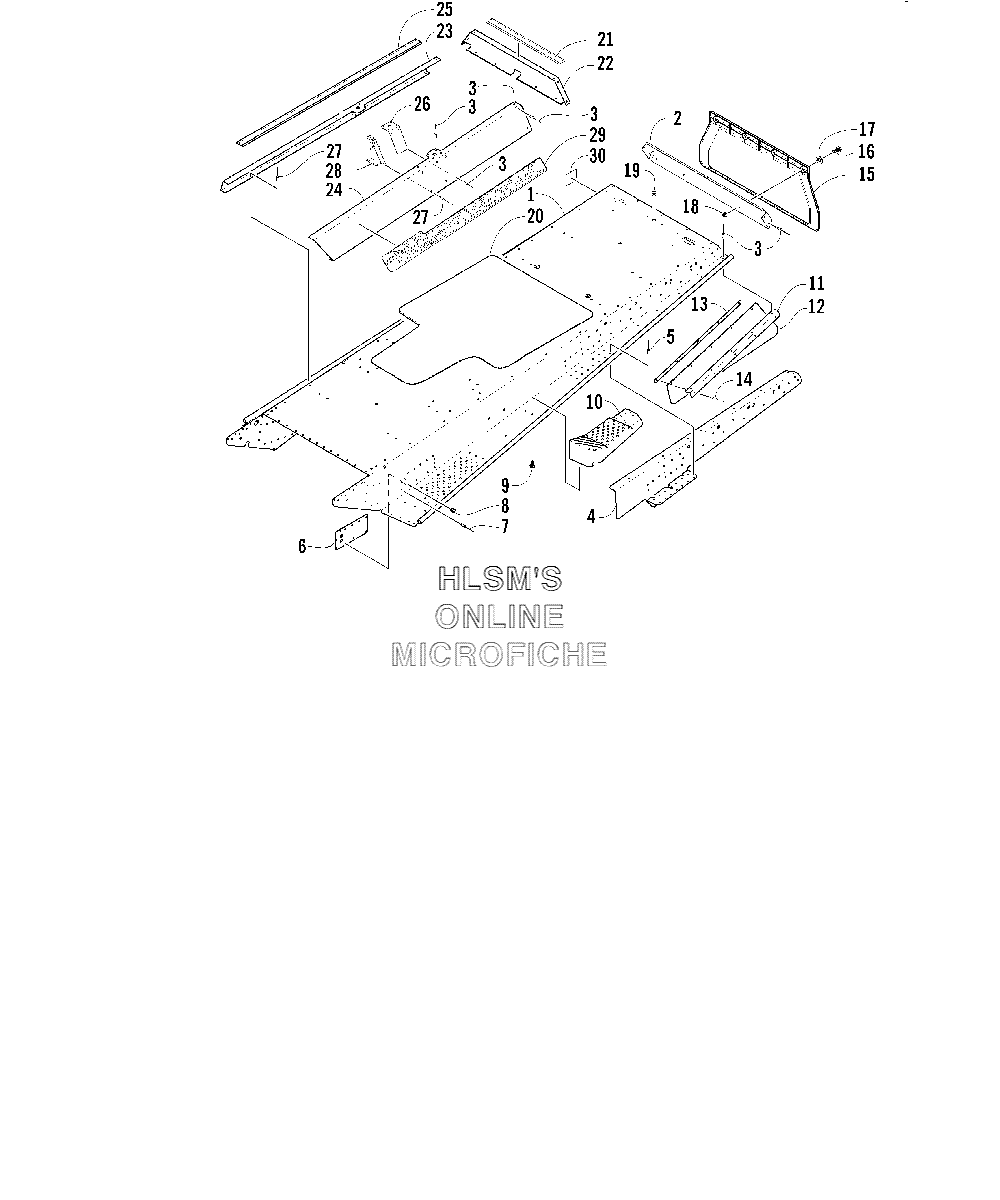

TUNNEL ASSEMBLY для Arctic Cat BEARCAT WIDE TRACK - 2003 года выпуска

№

Артикул

Название
1

1718-362 TUNNEL ASSY (INC. 2, 5)

TUNNEL ASSY (INC. 2, 5)
2

2706-288 PLATE, END, TUNNEL

PLATE, END, TUNNEL
3

8060-504 RIVET

RIVET
4

0707-752 BRACKET, SUSPENSION MOUNTING (RIGHT)

BRACKET, SUSPENSION MOUNTING (RIGHT)
4

0707-751 BRACKET, SUSPENSION MOUNTING (LEFT)

BRACKET, SUSPENSION MOUNTING (LEFT)
5

0123-418 RIVET

RIVET
6

2706-277 PLATE, SUSPENSION MOUNTING (FRONT)

PLATE, SUSPENSION MOUNTING (FRONT)
7

0623-072 RIVET

RIVET
8

0606-983 PLUG, BODY

PLUG, BODY
9

0623-057 SCREW, SELF, TAPPING

SCREW, SELF, TAPPING
10

1606-478 FOOTREST (REAR) (RIGHT)

FOOTREST (REAR) (RIGHT)
10

1606-479 FOOTREST (REAR) (LEFT)

FOOTREST (REAR) (LEFT)
11

2706-179 RETAINER, SIDE SNOWFLAP

RETAINER, SIDE SNOWFLAP
12

0616-660 SNOWFLAP, SIDE

SNOWFLAP, SIDE
13

0616-709 STRAP, SIDE SNOWFLAP

STRAP, SIDE SNOWFLAP
14

8060-428 RIVET

RIVET
15

0616-884 SNOWFLAP, REVERSE

SNOWFLAP, REVERSE
16

8017-580 SCREW, MACHINE

SCREW, MACHINE
17

0623-184 WASHER

WASHER
18

8040-366 NUT, LOCK

NUT, LOCK
19

0623-562 PLUG, HOLE

PLUG, HOLE
20

2606-748 PAD, TOOLBOX

PAD, TOOLBOX
21

2606-924 SEAL, SEAT, BASE

SEAL, SEAT, BASE
22

2706-283 PLATE, SEAT RISER (REAR)

PLATE, SEAT RISER (REAR)
23

2706-278 PLATE, SEAT RISER (RIGHT)

PLATE, SEAT RISER (RIGHT)
24

2706-279 PLATE, SEAT RISER (LEFT)

PLATE, SEAT RISER (LEFT)
25

2606-923 SEAL, SEAT, BASE

SEAL, SEAT, BASE
26

2706-282 BRACKET, RISER REINFORCEMENT

BRACKET, RISER REINFORCEMENT
27

8060-704 RIVET

RIVET
28

2706-280 BRACKET, MOUNTING, TANK HOLD, DOWN (RIGHT)

BRACKET, MOUNTING, TANK HOLD, DOWN (RIGHT)
28

2706-281 BRACKET, MOUNTING, TANK HOLD, DOWN (LEFT)

BRACKET, MOUNTING, TANK HOLD, DOWN (LEFT)
29

4611-812 DECAL, TUNNEL

DECAL, TUNNEL
30

0411-053 DECAL, CE

DECAL, CE
