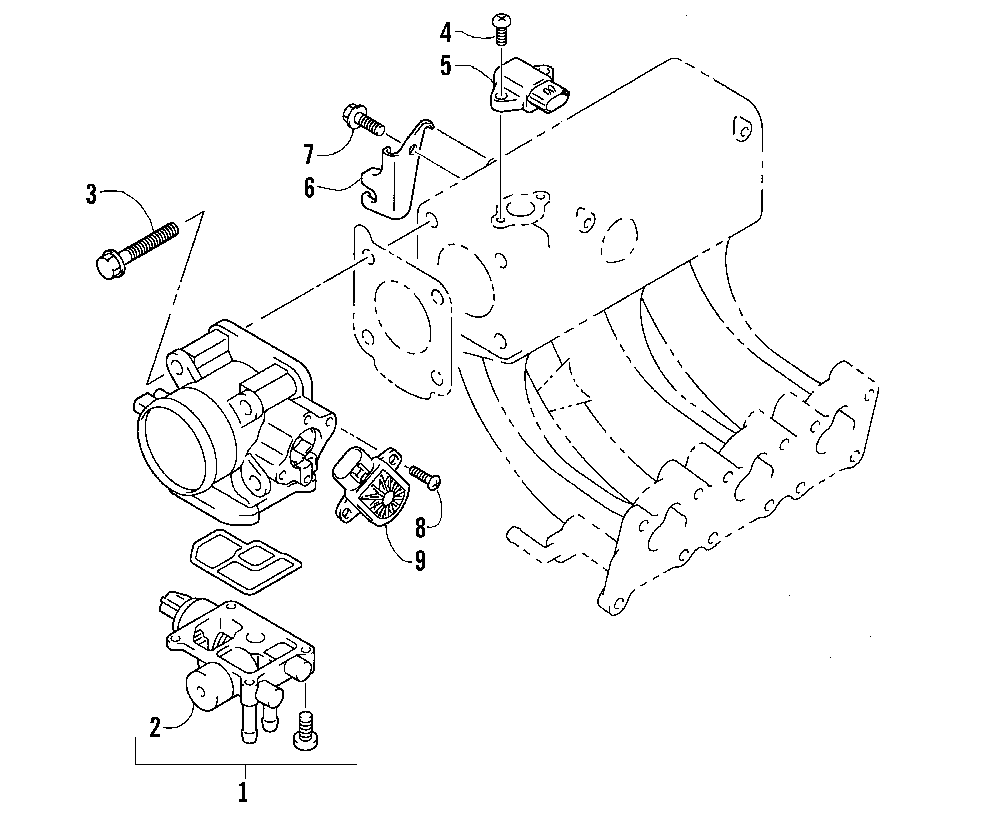

THROTTLE BODY ASSEMBLY для Arctic Cat BEARCAT WIDE TRACK - 2003 года выпуска
-
№АртикулНазвание
-
13006-581 THROTTLE BODY ASSY (INC. 2)THROTTLE BODY ASSY (INC. 2)
-
23006-582 VALVE, ISCVALVE, ISC
-
33004-498 BOLTBOLT
-
41691-018 SCREWSCREW
-
53006-584 SENSOR, PRESSURESENSOR, PRESSURE
-
63006-585 GUIDE, THROTTLE CABLEGUIDE, THROTTLE CABLE
-
73004-338 BOLTBOLT
-
83006-652 SCREW, MACHINESCREW, MACHINE
-
93006-651 SENSOR, THROTTLE POSITIONSENSOR, THROTTLE POSITION
