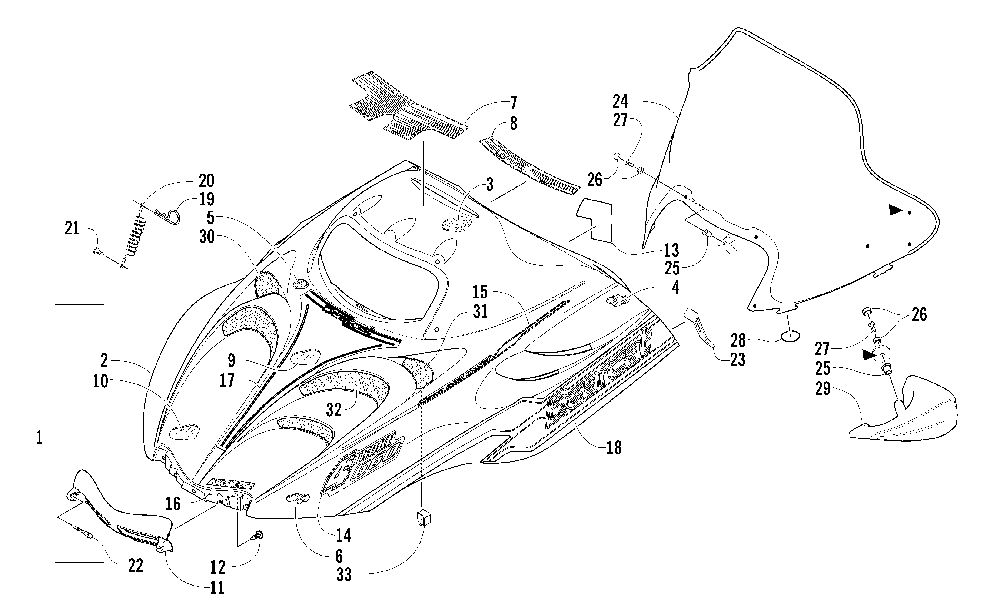

HOOD AND WINDSHIELD ASSEMBLY для Arctic Cat BEARCAT WIDE TRACK - 2003 года выпуска
-
№АртикулНазвание
-
11718-202 HOOD W/DECALS (SILVER) (INC. 2, 18)HOOD W/DECALS (SILVER) (INC. 2, 18)
-
21718-201 HOOD W/O DECALS (SILVER) (INC. 3, 13)HOOD W/O DECALS (SILVER) (INC. 3, 13)
-
30717-166 FOAM, HOOD (UPPER/MIDDLE/RIGHT)FOAM, HOOD (UPPER/MIDDLE/RIGHT)
-
40717-140 FOAM, HOOD (REAR) (RIGHT)FOAM, HOOD (REAR) (RIGHT)
-
40717-141 FOAM, HOOD (REAR) (LEFT)FOAM, HOOD (REAR) (LEFT)
-
50717-138 FOAM, HOOD (MIDDLE)FOAM, HOOD (MIDDLE)
-
60717-146 FOAM, HOOD (FRONT) (RIGHT)FOAM, HOOD (FRONT) (RIGHT)
-
60717-147 FOAM, HOOD (FRONT) (LEFT)FOAM, HOOD (FRONT) (LEFT)
-
73611-485 DECAL, WARNING, GENERAL AND BRAKEDECAL, WARNING, GENERAL AND BRAKE
-
83611-970 DECAL, CAUTION, ENGINE/BATTERY/FUELDECAL, CAUTION, ENGINE/BATTERY/FUEL
-
92606-935 FOIL, HOODFOIL, HOOD
-
101606-938 FOIL, HOOD (RIGHT)FOIL, HOOD (RIGHT)
-
101606-939 FOIL, HOOD (LEFT)FOIL, HOOD (LEFT)
-
111606-720 HINGE, HOODHINGE, HOOD
-
120623-797 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
133611-580 DECAL REVERSEDECAL REVERSE
-
144611-707 DECAL, HOOD (FRONT)DECAL, HOOD (FRONT)
-
154611-642 DECAL, HOOD (UPPER/RIGHT)DECAL, HOOD (UPPER/RIGHT)
-
154611-643 DECAL, HOOD (UPPER/LEFT)DECAL, HOOD (UPPER/LEFT)
-
164611-687 DECAL, "ARCTIC CAT", HOODDECAL, "ARCTIC CAT", HOOD
-
174611-645 DECAL, HOOD, CRESTDECAL, HOOD, CREST
-
184611-640 DECAL, HOOD (LOWER/RIGHT)DECAL, HOOD (LOWER/RIGHT)
-
184611-641 DECAL, HOOD (LOWER/LEFT)DECAL, HOOD (LOWER/LEFT)
-
190623-805 CLIP, HAIRPINCLIP, HAIRPIN
-
202606-247 CABLE, HOODCABLE, HOOD
-
210623-057 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
220623-690 SCREW, MACHINESCREW, MACHINE
-
231606-067 STRAP, HOLD, DOWNSTRAP, HOLD, DOWN
-
242606-753 WINDSHIELDWINDSHIELD
-
250623-845 NUT, EXPANSIONNUT, EXPANSION
-
260124-054 SNAP CAP W/WASHERSNAP CAP W/WASHER
-
270623-902 SCREW, MACHINESCREW, MACHINE
-
280616-032 O-RINGO-RING
-
292639-477 MIRROR, KIT (INC. SIX NO. 25, 27)MIRROR, KIT (INC. SIX NO. 25, 27)
-
302606-890 SCREEN, HOOD (RIGHT) (BLUE) (INTERNATIONAL)SCREEN, HOOD (RIGHT) (BLUE) (INTERNATIONAL)
-
312606-891 SCREEN, HOOD (UPPER/LEFT) (BLUE) (INTERNATIONAL)SCREEN, HOOD (UPPER/LEFT) (BLUE) (INTERNATIONAL)
-
322606-889 SCREEN, HOOD (LEFT) (BLUE) (INTERNATIONAL)SCREEN, HOOD (LEFT) (BLUE) (INTERNATIONAL)
-
330123-394 CLIP, RETAINING (INTERNATIONAL)CLIP, RETAINING (INTERNATIONAL)
