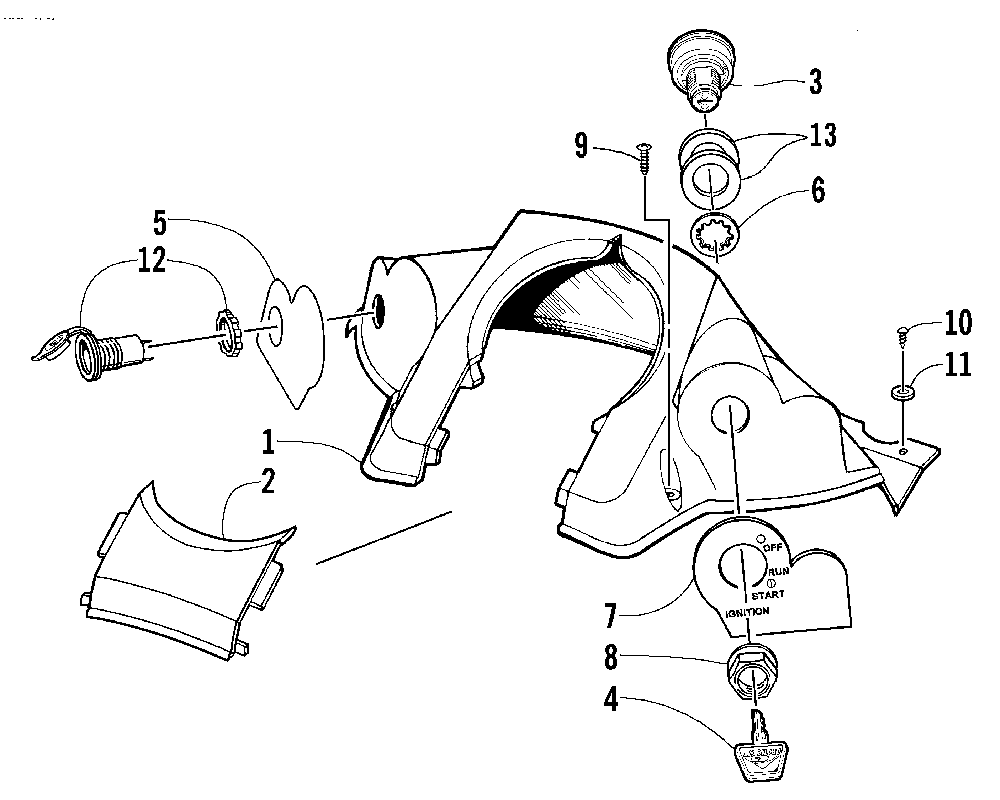

CONSOLE AND SWITCH ASSEMBLY для Arctic Cat BEARCAT WIDE TRACK - 2003 года выпуска

  • №
    Артикул
    Название
  • 1
    2606-283 CONSOLE
    CONSOLE
  • 2
    1606-105 DOOR, CONSOLE
    DOOR, CONSOLE
  • 3
    0609-082 SWITCH, IGNITION
    SWITCH, IGNITION
  • 4
    0609-412 KEY
    KEY
  • 5
    4611-805 DECAL, CONSOLE (LEFT)
    DECAL, CONSOLE (LEFT)
  • 6
    0123-899 WASHER, LOCK, INTERNAL TOOTH
    WASHER, LOCK, INTERNAL TOOTH
  • 7
    2611-744 DECAL, CONSOLE (RIGHT)
    DECAL, CONSOLE (RIGHT)
  • 8
    0609-113 NUT, RETAINING
    NUT, RETAINING
  • 9
    0623-219 SCREW, SELF, TAPPING
    SCREW, SELF, TAPPING
  • 10
    0623-378 SCREW, SELF, TAPPING
    SCREW, SELF, TAPPING
  • 11
    8050-157 WASHER
    WASHER
  • 12
    0641-158 OUTLET, ACCESSORY
    OUTLET, ACCESSORY
  • 13
    0623-292 WASHER
    WASHER
