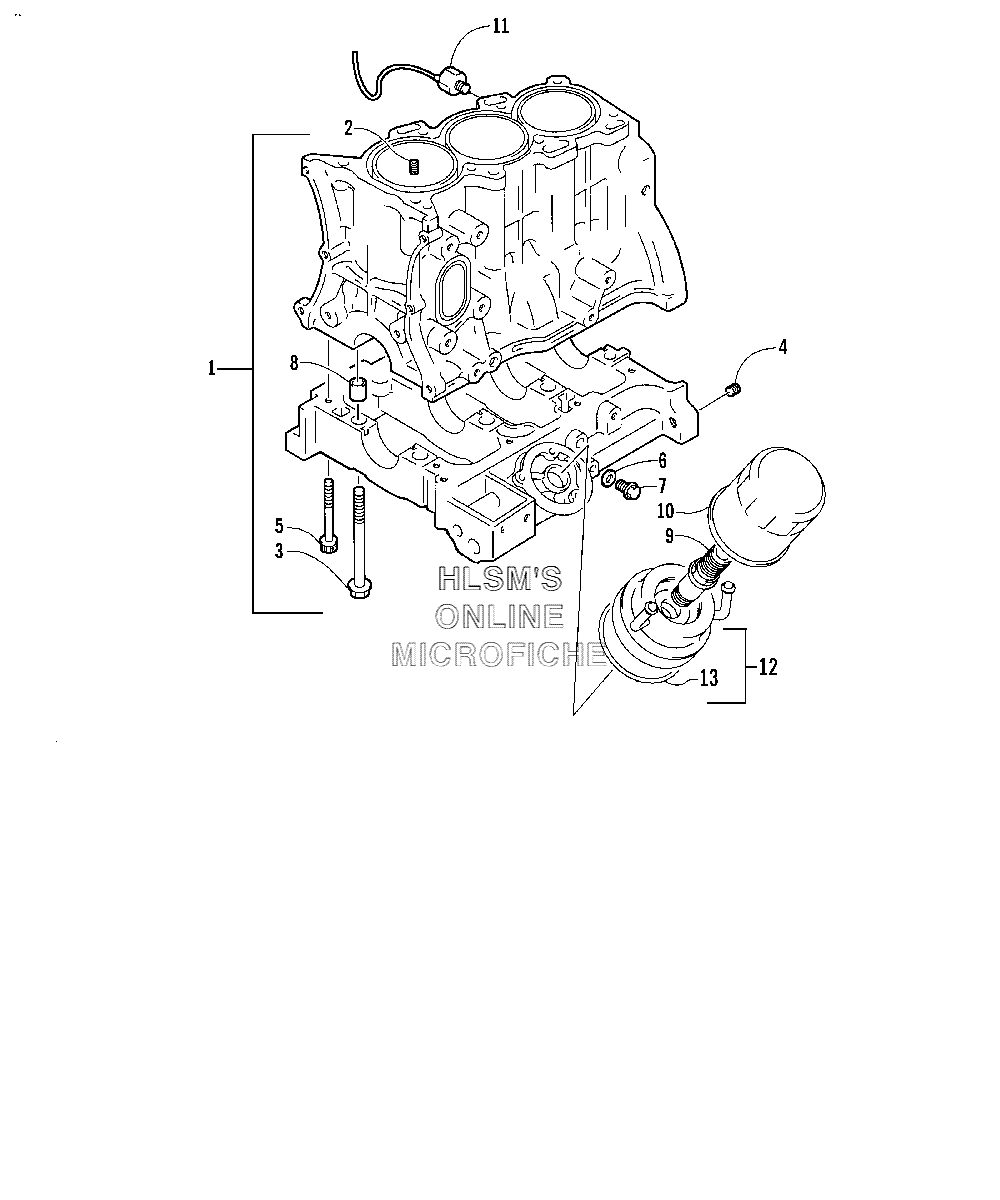

CYLINDER BLOCK/BASE ASSEMBLY для Arctic Cat BEARCAT WIDE TRACK - 2003 года выпуска

  • №
    Артикул
    Название
  • 1
    3006-139 CYLINDER BLOCK/BASE ASSY (INC. 2, 8)
    CYLINDER BLOCK/BASE ASSY (INC. 2, 8)
  • 2
    3006-131 PLUG, OIL VENTURI
    PLUG, OIL VENTURI
  • 3
    3006-133 BOLT
    BOLT
  • 4
    3006-116 PLUG, OIL GALLERY
    PLUG, OIL GALLERY
  • 5
    3006-141 BOLT
    BOLT
  • 6
    3006-112 GASKET
    GASKET
  • 7
    3006-117 PLUG, OIL DRAIN
    PLUG, OIL DRAIN
  • 8
    3423-088 PIN, DOWEL
    PIN, DOWEL
  • 9
    3006-564 STAND, OIL FILTER
    STAND, OIL FILTER
  • 10
    3005-948 FILTER, OIL, ASSY
    FILTER, OIL, ASSY
  • 11
    3006-240 SENSOR, KNOCK, ASSY
    SENSOR, KNOCK, ASSY
  • 12
    3006-565 COOLER, OIL (INC. 13)
    COOLER, OIL (INC. 13)
  • 13
    3006-566 GASKET
    GASKET
