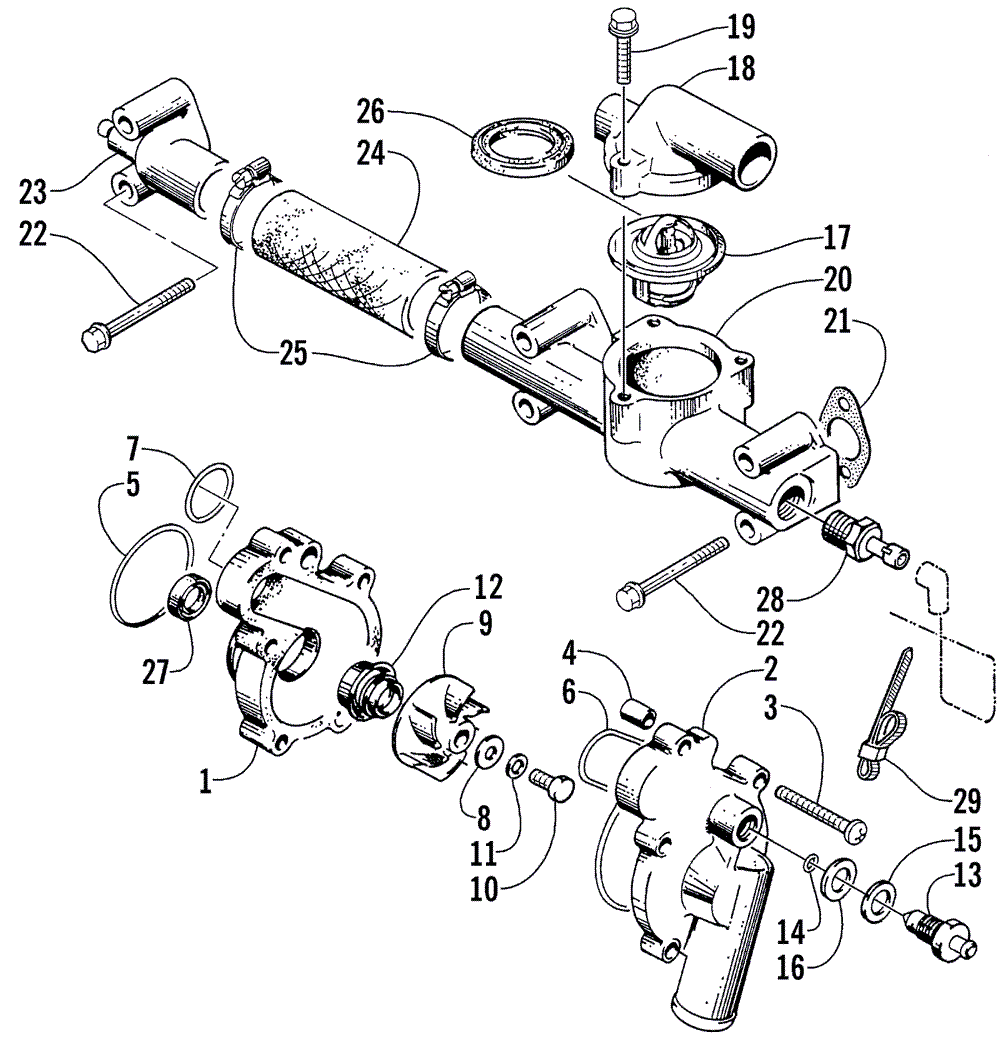

WATER PUMP/WATER MANIFOLD для Arctic Cat THUNDERCAT - 2002 года выпуска`
-
№АртикулНазвание
-
13004-181 CASE, WATER PUMPCASE, WATER PUMP
-
23004-182 COVER, WATER PUMPCOVER, WATER PUMP
-
33004-508 SCREWSCREW
-
43002-012 PIN, DOWELPIN, DOWEL
-
53005-303 O-RING, CASEO-RING, CASE
-
63004-183 O-RING, COVERO-RING, COVER
-
73004-521 O-RING, WATER INLETO-RING, WATER INLET
-
83003-432 WASHERWASHER
-
93006-047 IMPELLERIMPELLER
-
103003-426 BOLTBOLT
-
113003-431 WASHERWASHER
-
123005-909 SEAL, MECHANICALSEAL, MECHANICAL
-
133003-618 DRAIN, WATERDRAIN, WATER
-
143005-226 O-RING, WATER DRAINO-RING, WATER DRAIN
-
153004-472 WASHER, LOCKWASHER, LOCK
-
163004-417 WASHERWASHER
-
173004-509 THERMOSTATTHERMOSTAT
-
183003-924 CAP, THERMOSTATCAP, THERMOSTAT
-
193004-376 BOLTBOLT
-
203004-759 MANIFOLD, THERMOSTATMANIFOLD, THERMOSTAT
-
213004-260 GASKET, THERMOSTAT MANIFOLDGASKET, THERMOSTAT MANIFOLD
-
223004-427 BOLTBOLT
-
233004-214 MANIFOLD, WATER OUTLETMANIFOLD, WATER OUTLET
-
243004-187 HOSE, WATER OUTLETHOSE, WATER OUTLET
-
253004-786 CLAMPCLAMP
-
263003-495 GASKET, THERMOSTATGASKET, THERMOSTAT
-
273004-760 SEAL, WATER/OIL PUMPSEAL, WATER/OIL PUMP
-
280630-140 SENDING UNIT, WATER TEMPERATURESENDING UNIT, WATER TEMPERATURE
-
290623-285 CABLE TIE, DOUBLE LOOPCABLE TIE, DOUBLE LOOP
