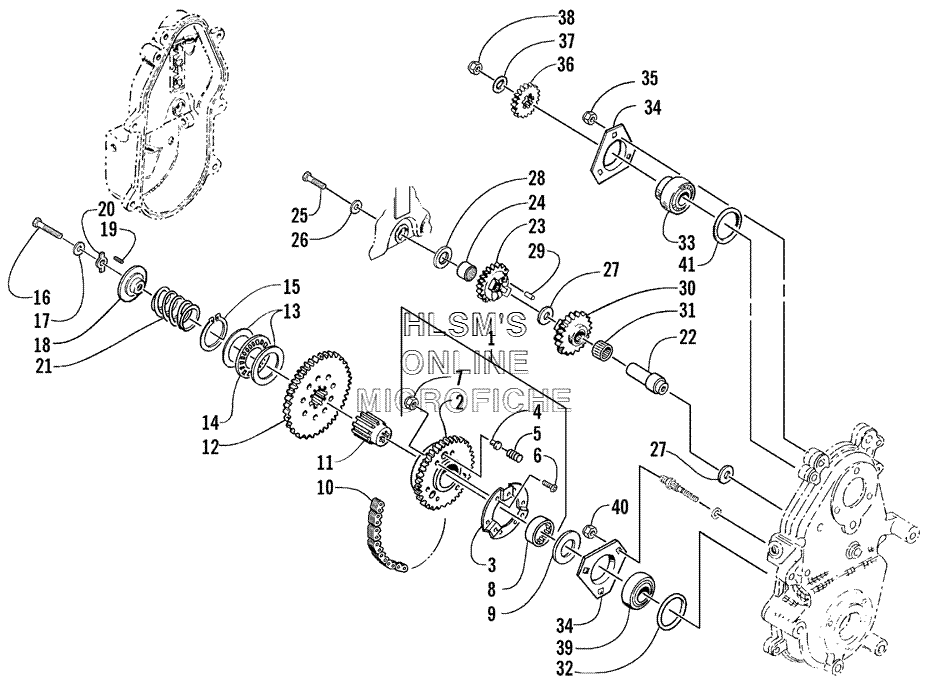

DRIVE/REVERSE DROPCASE ASSY. для Arctic Cat THUNDERCAT - 2002 года выпуска

№

Артикул

Название
1

0702-170 SPROCKET ASSY. 39T (INC. 2, 8)

SPROCKET ASSY. 39T (INC. 2, 8)
3

0602-144 RETAINER, SPRING

RETAINER, SPRING
4

0602-133 PIN, SLIP

PIN, SLIP
5

0602-138 SPRING, COMPRESSION

SPRING, COMPRESSION
6

0623-182 SCREW, CAP

SCREW, CAP
7

0123-430 NUT, LOCK

NUT, LOCK
8

0602-016 BEARING

BEARING
9

0602-012 SPACER, SHAFT

SPACER, SHAFT
10

1602-042 CHAIN 72P

CHAIN 72P
10

1602-041 CHAIN 70P (OVER 5, 000 FT ALT.)

CHAIN 70P (OVER 5, 000 FT ALT.)
11

1602-048 EXTENSION, DRIVESHAFT

EXTENSION, DRIVESHAFT
12

0702-048 GEAR, REVERSE 55T (INC. 13, 15)

GEAR, REVERSE 55T (INC. 13, 15)
13

0602-023 WASHER, THRUST

WASHER, THRUST
14

0602-022 BEARING, THRUST

BEARING, THRUST
15

0602-024 RING, RETAINING

RING, RETAINING
16

8002-231 SCREW, CAP

SCREW, CAP
17

8050-272 WASHER

WASHER
18

0702-372 RETAINER, SHAFT (INC. 19)

RETAINER, SHAFT (INC. 19)
19

8070-153 PIN, SPRING

PIN, SPRING
20

1602-046 WASHER, TAB LOCK

WASHER, TAB LOCK
21

0602-028 SPRING, RETURN

SPRING, RETURN
22

0602-872 SHAFT, REVERSE

SHAFT, REVERSE
23

0702-365 IDLER, REVERSE, ASSY. 19T (INC. 24)

IDLER, REVERSE, ASSY. 19T (INC. 24)
24

1602-045 BEARING

BEARING
25

8002-130 SCREW, CAP

SCREW, CAP
26

8050-242 WASHER

WASHER
27

0602-215 SPACER, REVERSE IDLER

SPACER, REVERSE IDLER
28

1602-044 WASHER, THRUST

WASHER, THRUST
29

0602-366 ALIGNER, IDLER, PIN

ALIGNER, IDLER, PIN
30

0602-899 IDLER, REVERSE, ASSY. 22T

IDLER, REVERSE, ASSY. 22T
31

0602-205 BEARING, CAGED

BEARING, CAGED
32

0107-003 SEAL, O-RING

SEAL, O-RING
33

1602-052 BEARING, 7/8 IN.

BEARING, 7/8 IN.
34

0602-198 PLATE, FLANGE

PLATE, FLANGE
35

8041-426 NUT, LOCK

NUT, LOCK
36

0602-446 SPROCKET 24T

SPROCKET 24T
36

0602-456 SPROCKET 20T (OVER 5, 000 FT ALT.)

SPROCKET 20T (OVER 5, 000 FT ALT.)
37

0623-231 WASHER, SPRING

WASHER, SPRING
38

0623-465 NUT, LOCK

NUT, LOCK
39

1602-051 BEARING, 1 IN.

BEARING, 1 IN.
40

8040-426 NUT, LOCK

NUT, LOCK
