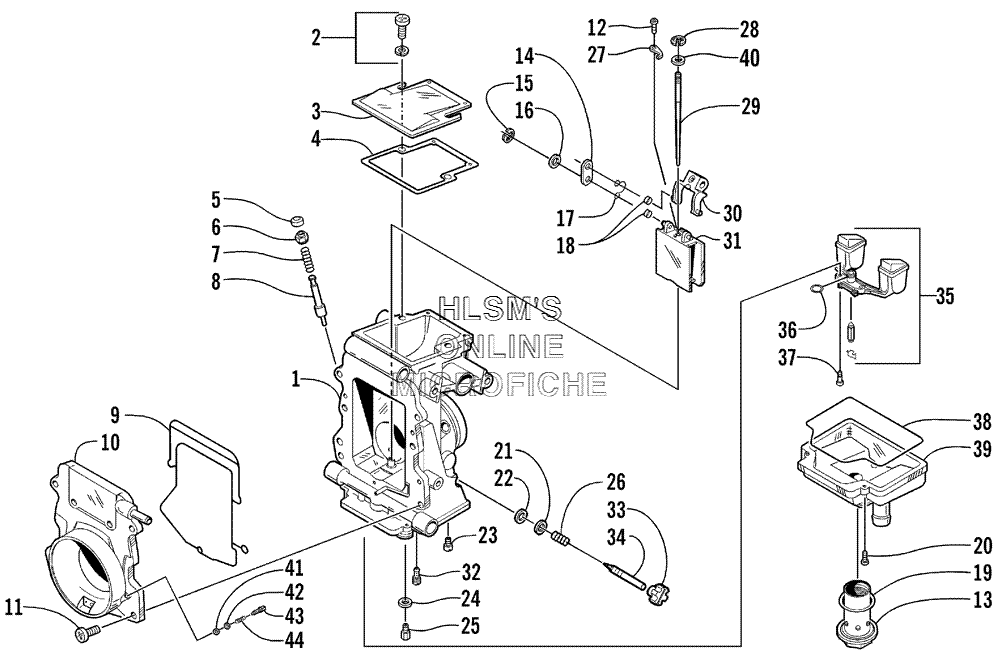

CARBURETOR - INTERNAL PARTS для Arctic Cat THUNDERCAT - 2002 года выпуска`
-
№АртикулНазвание
-
-1670-040 TM38, C265 COMPLETE CARBURETORTM38, C265 COMPLETE CARBURETOR
-
26505-591 SCREW ASSY.SCREW ASSY.
-
36506-142 CAP, TOPCAP, TOP
-
46506-034 GASKETGASKET
-
56506-068 CAP, STARTER PLUNGERCAP, STARTER PLUNGER
-
66506-069 GUIDE, STARTER PLUNGERGUIDE, STARTER PLUNGER
-
76506-070 SPRING, STARTER PLUNGERSPRING, STARTER PLUNGER
-
86506-071 STARTER PLUNGERSTARTER PLUNGER
-
96506-209 GASKETGASKET
-
106506-207 FUNNEL ASSY.FUNNEL ASSY.
-
116505-980 SCREWSCREW
-
126506-054 SCREW, RETAINING PLATESCREW, RETAINING PLATE
-
136506-032 PLUG, DRAINPLUG, DRAIN
-
146506-039 PLATEPLATE
-
156506-051 E, RINGE, RING
-
166506-052 WASHERWASHER
-
176506-040 CLIPCLIP
-
186506-053 BUSHING, CLIPBUSHING, CLIP
-
196505-185 O-RINGO-RING
-
206506-072 SCREWSCREW
-
216506-078 WASHERWASHER
-
226506-080 WASHER, RUBBERWASHER, RUBBER
-
236506-101 STARTER JET 135STARTER JET 135
-
246506-091 WASHERWASHER
-
256505-074 MAIN JET 320MAIN JET 320
-
256505-017 MAIN JET 260 (OVER 5, 000 FT ALT.)MAIN JET 260 (OVER 5, 000 FT ALT.)
-
266506-079 SPRING, FUEL MIXTURE SCREWSPRING, FUEL MIXTURE SCREW
-
276506-055 PLATE, JET NEEDLE RETAININGPLATE, JET NEEDLE RETAINING
-
286505-628 E, CLIPE, CLIP
-
296506-186 JET NEEDLE 9DFH3, 56, 3JET NEEDLE 9DFH3, 56, 3
-
296506-200 JET NEEDLE 9DFH2, 58, 3 (5, 9, 000 FT ALT.)JET NEEDLE 9DFH2, 58, 3 (5, 9, 000 FT ALT.)
-
296506-201 JET NEEDLE 9DFH2, 59, 3 (OVER 9, 000 FT ALT.)JET NEEDLE 9DFH2, 59, 3 (OVER 9, 000 FT ALT.)
-
306506-043 LEVER ASSY. (LEFT/RIGHT)LEVER ASSY. (LEFT/RIGHT)
-
306506-047 LEVER ASSY. (CENTER)LEVER ASSY. (CENTER)
-
316506-120 VALVE, THROTTLE CA 3.0VALVE, THROTTLE CA 3.0
-
326505-029 PILOT JET 35PILOT JET 35
-
336506-076 CAP, FUEL MIXTURE SCREWCAP, FUEL MIXTURE SCREW
-
346506-145 SCREW, FUEL MIXTURE 2.0SCREW, FUEL MIXTURE 2.0
-
356506-121 FLOAT ASSY. 1.5FLOAT ASSY. 1.5
-
366506-100 O-RINGO-RING
-
376506-037 SCREW, FLOAT ARMSCREW, FLOAT ARM
-
386506-038 GASKET, FLOAT CHAMBERGASKET, FLOAT CHAMBER
-
396506-036 CHAMBER, FLOATCHAMBER, FLOAT
-
406505-552 WASHER, E, CLIPWASHER, E, CLIP
-
414505-011 O-RINGO-RING
-
426506-218 WASHERWASHER
-
436506-220 SCREW, AIRSCREW, AIR
-
446506-217 SPRING, AIR SCREWSPRING, AIR SCREW
