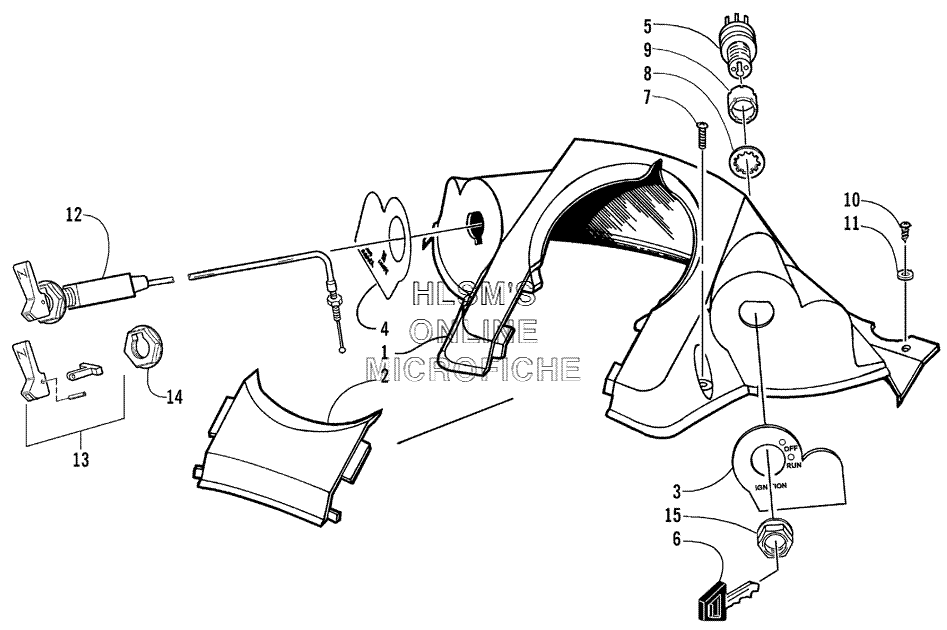

CONSOLE AND SWITCH ASSY. для Arctic Cat THUNDERCAT - 2002 года выпуска`
-
№АртикулНазвание
-
12606-103 CONSOLECONSOLE
-
21606-105 DOOR, CONSOLEDOOR, CONSOLE
-
32611-678 DECAL, CONSOLE (RIGHT)DECAL, CONSOLE (RIGHT)
-
42611-867 DECAL, CONSOLE (LEFT)DECAL, CONSOLE (LEFT)
-
50609-286 SWITCH, IGNITION (INC. 6)SWITCH, IGNITION (INC. 6)
-
70623-219 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
80123-899 WASHER, LOCK, INTERNAL TOOTHWASHER, LOCK, INTERNAL TOOTH
-
90609-450 SPACER, IGNITION SWITCHSPACER, IGNITION SWITCH
-
100623-378 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
118050-157 WASHERWASHER
-
120687-131 CABLE, CHOKE (INC. 13, 14)CABLE, CHOKE (INC. 13, 14)
-
131639-835 CHOKE LEVER KITCHOKE LEVER KIT
-
140687-132 NUT, CHOKENUT, CHOKE
-
150609-113 NUT, RETAININGNUT, RETAINING
