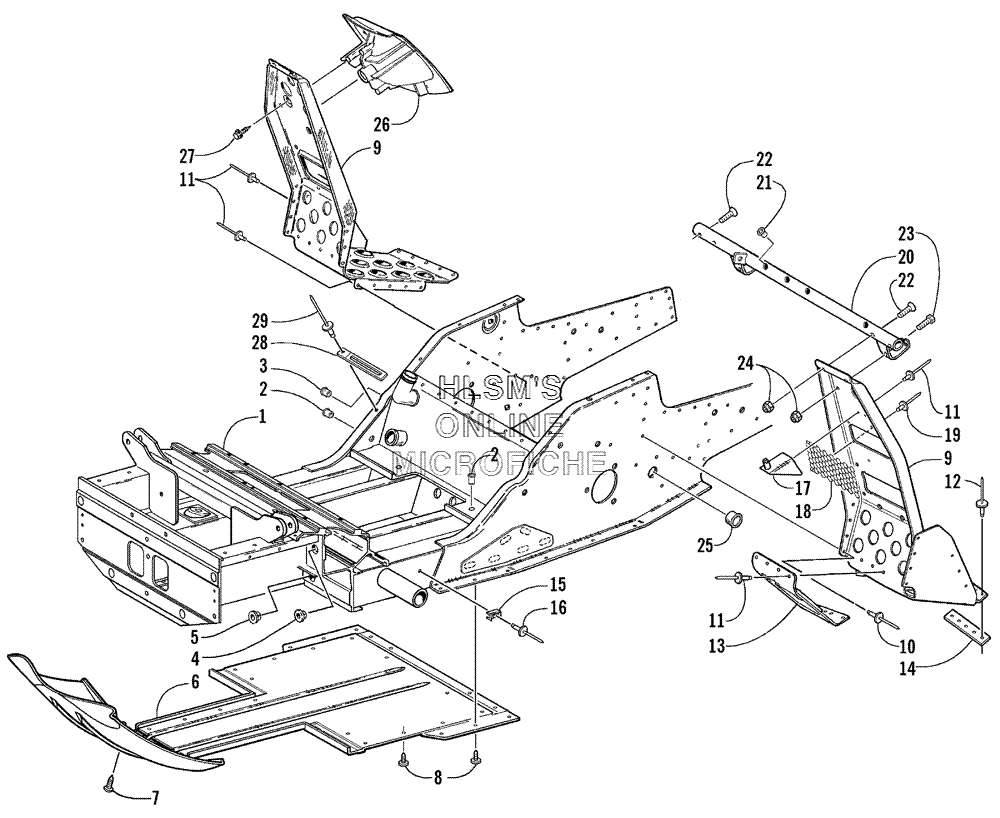

FRONT FRAME AND FOOTREST ASSY. для Arctic Cat THUNDERCAT - 2002 года выпуска
-
№АртикулНазвание
-
10707-653 CHASSIS ASSY. (INC. 2, 5)CHASSIS ASSY. (INC. 2, 5)
-
20623-582 INSERTINSERT
-
30623-581 INSERTINSERT
-
40607-421 INSERT A, ARM MOUNT (UPPER)INSERT A, ARM MOUNT (UPPER)
-
50607-420 INSERT A, ARM MOUNT (LOWER)INSERT A, ARM MOUNT (LOWER)
-
62606-294 BELLY PAN (CENTER) (SILVER)BELLY PAN (CENTER) (SILVER)
-
70623-784 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
80623-797 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
91706-884 FOOTREST (RIGHT) (BLACK)FOOTREST (RIGHT) (BLACK)
-
91706-885 FOOTREST (LEFT) (BLACK)FOOTREST (LEFT) (BLACK)
-
100623-341 RIVETRIVET
-
110623-166 RIVETRIVET
-
120623-282 RIVETRIVET
-
131706-886 PLATE, BACKING (RIGHT)PLATE, BACKING (RIGHT)
-
131706-887 PLATE, BACKING (LEFT)PLATE, BACKING (LEFT)
-
140616-701 PLATE, BACKING, FOOTRESTPLATE, BACKING, FOOTREST
-
150623-228 MOUNT, CABLE TIEMOUNT, CABLE TIE
-
168060-428 RIVETRIVET
-
170705-173 BRACKET, MOUNTING, GUARDBRACKET, MOUNTING, GUARD
-
181606-912 SCREEN, GUARDSCREEN, GUARD
-
198060-704 RIVETRIVET
-
200705-426 SUPPORT, STEERING (INC. 21)SUPPORT, STEERING (INC. 21)
-
210623-779 INSERTINSERT
-
228019-614 SCREW, MACHINESCREW, MACHINE
-
238002-041 SCREW, CAPSCREW, CAP
-
248041-366 NUT, LOCKNUT, LOCK
-
251623-002 BUSHING, SNAPBUSHING, SNAP
-
261706-099 CUP, RECOIL ROPECUP, RECOIL ROPE
-
270623-297 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
283002-964 CLAMP, WIRECLAMP, WIRE
-
298060-504 RIVETRIVET
