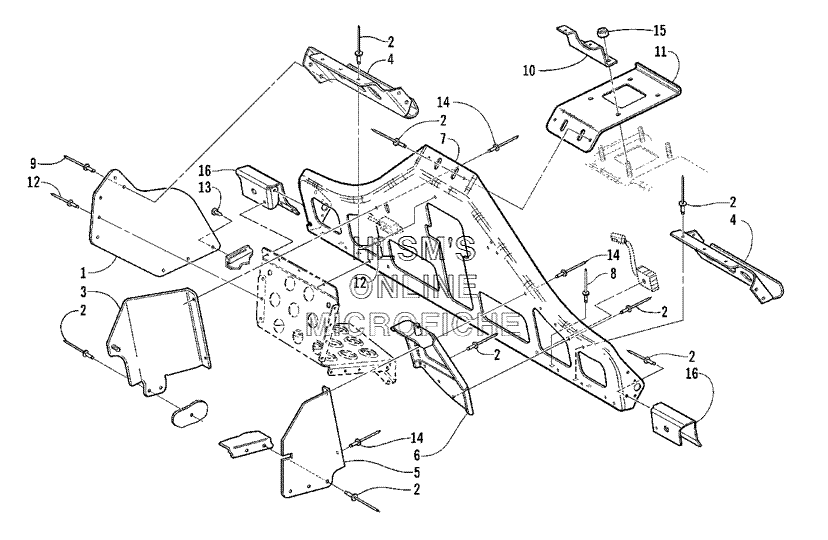

STEERING SUPPORT ASSEMBLY для Arctic Cat Z 440 SNO PRO (USA) - 2001 года выпуска

  • №
    Артикул
    Название
  • 1
    1606-979 SUPPORT, ANKLE
    SUPPORT, ANKLE
  • 2
    0623-166 RIVET
    RIVET
  • 3
    1606-455 BRACKET, BRAKE DUCT MOUNTING
    BRACKET, BRAKE DUCT MOUNTING
  • 4
    2606-296 BRACKET, TOE-HOLD - RIGHT
    BRACKET, TOE-HOLD - RIGHT
  • 4
    2606-297 BRACKET, TOE-HOLD - LEFT
    BRACKET, TOE-HOLD - LEFT
  • 5
    1606-723 BRACKET, CLOSE-OFF - AIR SILENCER
    BRACKET, CLOSE-OFF - AIR SILENCER
  • 6
    1706-111 BRACKET, MOUNTING - GUARD
    BRACKET, MOUNTING - GUARD
  • 7
    0705-884 SUPPORT, STEERING
    SUPPORT, STEERING
  • 8
    0623-282 RIVET
    RIVET
  • 9
    8061-706 RIVET
    RIVET
  • 10
    1606-490 BRACKET, MOUNTING - CONSOLE
    BRACKET, MOUNTING - CONSOLE
  • 11
    1606-428 BRACKET, GAS TANK SUPPORT - UPPER
    BRACKET, GAS TANK SUPPORT - UPPER
  • 12
    8061-508 RIVET
    RIVET
  • 13
    0623-797 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 14
    8060-684 RIVET
    RIVET
  • 15
    8040-366 NUT, LOCK
    NUT, LOCK
  • 16
    0705-882 BRACE, SUPPORT - STEERING - RIGHT
    BRACE, SUPPORT - STEERING - RIGHT
  • 16
    0705-883 BRACE, SUPPORT - STEERING - LEFT
    BRACE, SUPPORT - STEERING - LEFT
