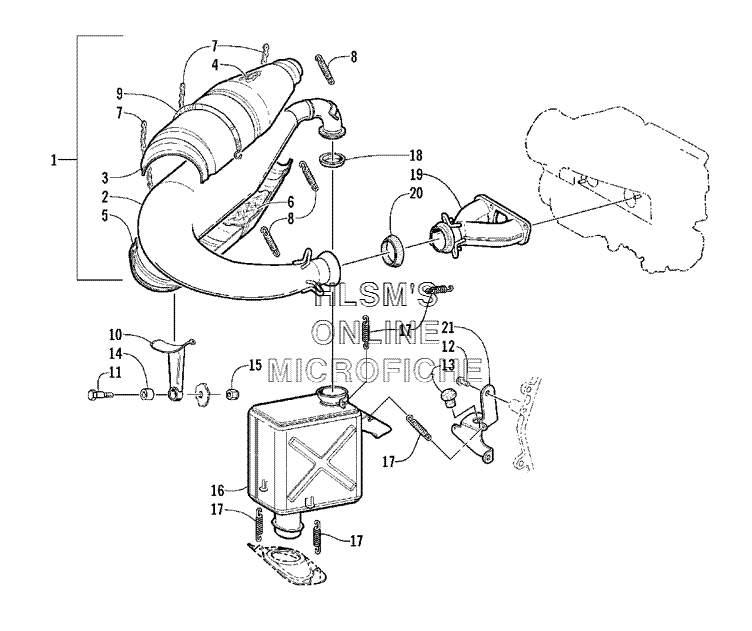

EXHAUST ASSEMBLY для Arctic Cat Z 440 SNO PRO (USA) - 2001 года выпуска

  • №
    Артикул
    Название
  • 1
    0712-711 EXPANSION CHAMBER ASSEMBLY (INC 2-8)
    EXPANSION CHAMBER ASSEMBLY (INC 2-8)
  • 2
    0712-710 CHAMBER, EXPANSION
    CHAMBER, EXPANSION
  • 3
    1612-374 COVER - UPPER
    COVER - UPPER
  • 4
    1612-346 PACKING - UPPER
    PACKING - UPPER
  • 5
    1612-375 COVER - LOWER
    COVER - LOWER
  • 6
    1612-387 PACKING - LOWER
    PACKING - LOWER
  • 7
    0624-526 TIE, PERFORATED BAND - 5 FT
    TIE, PERFORATED BAND - 5 FT
  • 7
    0624-541 TIE, PERFORATED BAND - 25 FT
    TIE, PERFORATED BAND - 25 FT
  • 8
    1612-178 SPRING, EXHAUST
    SPRING, EXHAUST
  • 9
    0612-027 SPRING, EXTENSION
    SPRING, EXTENSION
  • 10
    0712-820 BRACKET, MOUNTING - EXPANSION CHAMBER
    BRACKET, MOUNTING - EXPANSION CHAMBER
  • 11
    0623-856 SCREW, MACHINE - HEX SHOULDER
    SCREW, MACHINE - HEX SHOULDER
  • 12
    0623-765 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 13
    0612-111 BUMPER, RUBBER
    BUMPER, RUBBER
  • 14
    0612-107 BUSHING, RESONATOR - RUBBER
    BUSHING, RESONATOR - RUBBER
  • 15
    8040-366 NUT, LOCK
    NUT, LOCK
  • 16
    0712-712 RESONATOR
    RESONATOR
  • 17
    0612-471 SPRING, EXHAUST
    SPRING, EXHAUST
  • 18
    0612-693 GASKET, EXHAUST - TAILPIPE
    GASKET, EXHAUST - TAILPIPE
  • 19
    0712-822 MANIFOLD, EXHAUST
    MANIFOLD, EXHAUST
  • 20
    0612-131 GASKET, EXHAUST - HEADER JOINT
    GASKET, EXHAUST - HEADER JOINT
  • 21
    1612-379 BRACKET, MOUNTING - RESONATOR
    BRACKET, MOUNTING - RESONATOR
