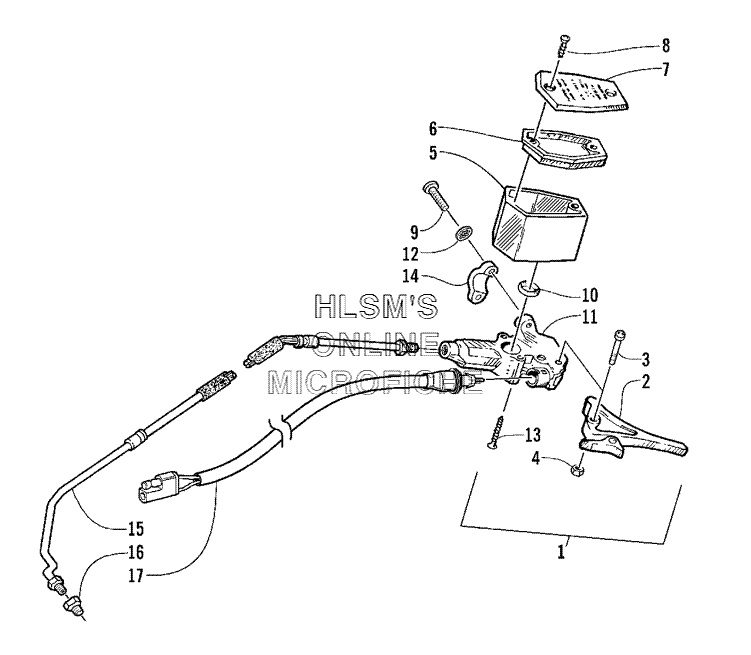

HYDRAULIC BRAKE CONTROL ASSEMBLY для Arctic Cat Z 440 SNO PRO (USA) - 2001 года выпуска
-
№АртикулНазвание
-
10602-943 BRAKE ASSEMBLY (INC 2-14)BRAKE ASSEMBLY (INC 2-14)
-
20602-711 LEVER, BRAKELEVER, BRAKE
-
30623-430 SCREW, LEVER MOUNTINGSCREW, LEVER MOUNTING
-
40623-056 NUT, LOCKNUT, LOCK
-
50602-740 RESERVOIRRESERVOIR
-
60602-741 GASKET, COVERGASKET, COVER
-
70602-742 COVER, RESERVOIRCOVER, RESERVOIR
-
80623-506 SCREW, COVERSCREW, COVER
-
90623-613 SCREW, MACHINESCREW, MACHINE
-
100602-587 O-RINGO-RING
-
128052-212 WASHER, LOCK - INTERNAL TOOTHWASHER, LOCK - INTERNAL TOOTH
-
130623-432 SCREW, MASTER CYLINDER MOUNTINGSCREW, MASTER CYLINDER MOUNTING
-
140602-907 CLAMP, MOUNTINGCLAMP, MOUNTING
-
150602-830 BRAKELINE, HYDRAULICBRAKELINE, HYDRAULIC
-
160602-590 FITTING, ADAPTERFITTING, ADAPTER
-
170609-248 SWITCH, BRAKELIGHTSWITCH, BRAKELIGHT
