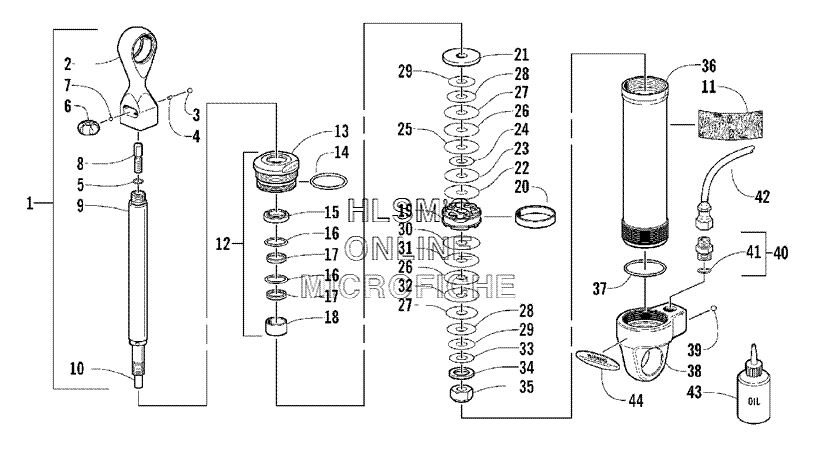

REAR SUSPENSION REAR ARM SHOCK ABSORBER для Arctic Cat Z 440 SNO PRO (USA) - 2001 года выпуска

  • №
    Артикул
    Название
  • -
    0704-571 COMPLETE SHOCK ABSORBER
    COMPLETE SHOCK ABSORBER
  • 1
    0704-663 ROD, SHOCK - CHROME - ASSEMBLY (INC 2-10)
    ROD, SHOCK - CHROME - ASSEMBLY (INC 2-10)
  • 2
    1604-867 EYELET, SHOCK
    EYELET, SHOCK
  • 3
    1604-871 SCREW, ADJUSTER DIAL
    SCREW, ADJUSTER DIAL
  • 4
    1604-873 PLUG, SILICONE
    PLUG, SILICONE
  • 5
    1604-869 O-RING, ADJUSTER - REBOUND
    O-RING, ADJUSTER - REBOUND
  • 6
    1604-868 DIAL, ADJUSTER - REBOUND
    DIAL, ADJUSTER - REBOUND
  • 7
    1604-872 BALL
    BALL
  • 8
    1604-870 ADJUSTER, REBOUND
    ADJUSTER, REBOUND
  • 9
    1604-929 ROD, SHOCK - CHROME
    ROD, SHOCK - CHROME
  • 10
    1604-930 ROD, ADJUSTER - REBOUND
    ROD, ADJUSTER - REBOUND
  • 11
    4611-261 DECAL, ''ACT'' - SHOCK
    DECAL, ''ACT'' - SHOCK
  • 12
    0704-664 COVER, SLIDING - ASSEMBLY (INC 13-18)
    COVER, SLIDING - ASSEMBLY (INC 13-18)
  • 13
    1604-991 COVER, SLIDING - SEAL HEAD
    COVER, SLIDING - SEAL HEAD
  • 14
    1604-881 O-RING, COVER
    O-RING, COVER
  • 15
    1604-882 SEAL, SCRAPER
    SEAL, SCRAPER
  • 16
    1604-884 O-RING, SEAL - STEP
    O-RING, SEAL - STEP
  • 17
    1604-883 SEAL, STEP
    SEAL, STEP
  • 18
    1604-885 BUSHING
    BUSHING
  • 19
    1604-887 PISTON - 35 MM
    PISTON - 35 MM
  • 20
    1604-888 RING, SLIDE - 35 MM
    RING, SLIDE - 35 MM
  • 21
    1604-886 WASHER, TOP OUT
    WASHER, TOP OUT
  • 22
    3603-058 VALVE, SHOCK 33 MM X 0.20 MM
    VALVE, SHOCK 33 MM X 0.20 MM
  • 23
    3603-055 VALVE, SHOCK 28 MM X 0.20 MM
    VALVE, SHOCK 28 MM X 0.20 MM
  • 24
    3603-032 VALVE, SHOCK 22 MM X 0.10 MM
    VALVE, SHOCK 22 MM X 0.10 MM
  • 25
    3603-047 VALVE, SHOCK 31 MM X 0.15 MM
    VALVE, SHOCK 31 MM X 0.15 MM
  • 26
    3603-067 VALVE, SHOCK 31 MM X 0.25 MM
    VALVE, SHOCK 31 MM X 0.25 MM
  • 27
    3603-065 VALVE, SHOCK 28 MM X 0.25 MM
    VALVE, SHOCK 28 MM X 0.25 MM
  • 28
    3603-064 VALVE, SHOCK 26 MM X 0.25 MM
    VALVE, SHOCK 26 MM X 0.25 MM
  • 29
    3603-063 VALVE, SHOCK 24 MM X 0.25 MM
    VALVE, SHOCK 24 MM X 0.25 MM
  • 30
    3603-078 VALVE, SHOCK 33 MM X 0.30 MM
    VALVE, SHOCK 33 MM X 0.30 MM
  • 31
    3603-077 VALVE, SHOCK 31 MM X 0.30 MM
    VALVE, SHOCK 31 MM X 0.30 MM
  • 32
    3603-066 VALVE, SHOCK 29 MM X 0.25 MM
    VALVE, SHOCK 29 MM X 0.25 MM
  • 33
    3603-062 VALVE, SHOCK 22 MM X 0.25 MM
    VALVE, SHOCK 22 MM X 0.25 MM
  • 34
    1604-966 WASHER, BACKUP
    WASHER, BACKUP
  • 35
    1604-961 NUT, LOCK
    NUT, LOCK
  • 36
    1604-967 BODY, SHOCK
    BODY, SHOCK
  • 37
    1604-892 O-RING, END CAP
    O-RING, END CAP
  • 38
    1604-893 END CAP, SHOCK
    END CAP, SHOCK
  • 39
    1604-894 BALL
    BALL
  • 40
    1603-542 FITTING, SHOCK (INC 41)
    FITTING, SHOCK (INC 41)
  • 41
    1604-284 O-RING, FITTING
    O-RING, FITTING
  • 42
    1604-906 HOSE, SHOCK
    HOSE, SHOCK
  • 43
    1639-245 OIL, GAS SHOCK - 6 QT CASE
    OIL, GAS SHOCK - 6 QT CASE
  • 44
    3611-007 DECAL, WARNING - SHOCK
    DECAL, WARNING - SHOCK
