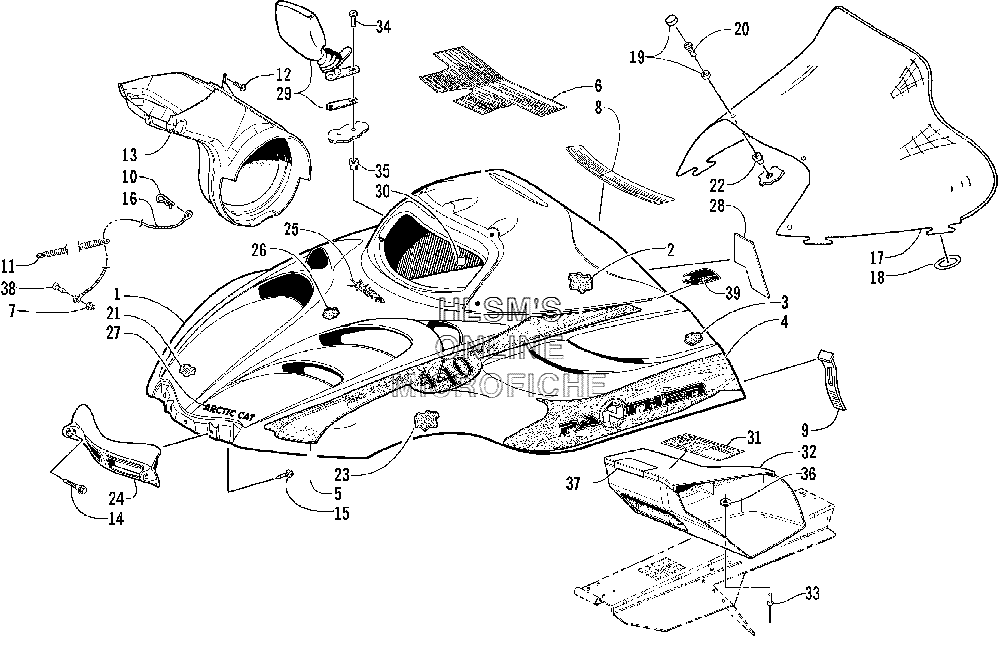

HOOD AND WINDSHIELD ASSEMBLY для Arctic Cat PANTHER 440 (ESR) - 2001 года выпуска
-
№АртикулНазвание
-
10718-918 HOOD W/O DECALS (ESR)HOOD W/O DECALS (ESR)
-
10718-919 HOOD W/DECALS (ESR)HOOD W/DECALS (ESR)
-
20617-324 FOAM, HOOD - UPPER MIDDLE - RIGHTFOAM, HOOD - UPPER MIDDLE - RIGHT
-
20617-325 FOAM, HOOD - UPPER MIDDLE - LEFTFOAM, HOOD - UPPER MIDDLE - LEFT
-
30617-322 FOAM, HOOD - UPPER RIGHTFOAM, HOOD - UPPER RIGHT
-
30617-323 FOAM, HOOD - UPPER LEFTFOAM, HOOD - UPPER LEFT
-
43611-836 DECAL, HOOD - LOWER RIGHTDECAL, HOOD - LOWER RIGHT
-
43611-837 DECAL, HOOD - LOWER LEFTDECAL, HOOD - LOWER LEFT
-
53611-840 DECAL, HOOD - UPPER RIGHTDECAL, HOOD - UPPER RIGHT
-
53611-841 DECAL, HOOD - UPPER LEFTDECAL, HOOD - UPPER LEFT
-
63611-485 DECAL, WARNING - GENERAL AND BRAKEDECAL, WARNING - GENERAL AND BRAKE
-
70123-430 NUT, LOCKNUT, LOCK
-
83611-970 DECAL, CAUTION - ENGINE/BATTERYDECAL, CAUTION - ENGINE/BATTERY
-
91606-067 STRAP, HOLD-DOWNSTRAP, HOLD-DOWN
-
100623-805 CLIP, HAIRPINCLIP, HAIRPIN
-
110123-510 SPRING, EXTENSIONSPRING, EXTENSION
-
120623-257 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
131606-829 DUCT, AIR - INDUCT, AIR - IN
-
140623-690 SCREW, MACHINESCREW, MACHINE
-
150623-797 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
161606-158 CABLE, HOODCABLE, HOOD
-
171639-573 WINDSHIELDWINDSHIELD
-
180616-032 O-RINGO-RING
-
190124-054 SNAP CAP W/WASHERSNAP CAP W/WASHER
-
200623-902 SCREW, MACHINESCREW, MACHINE
-
211606-938 FOIL, HOOD - RIGHTFOIL, HOOD - RIGHT
-
211606-939 FOIL, HOOD - LEFTFOIL, HOOD - LEFT
-
220623-845 NUT, EXPANSIONNUT, EXPANSION
-
230617-326 FOAM, HOOD - REAR - RIGHTFOAM, HOOD - REAR - RIGHT
-
230617-327 FOAM, HOOD - REAR - LEFTFOAM, HOOD - REAR - LEFT
-
241606-720 HINGE, HOODHINGE, HOOD
-
253611-581 DECAL, ''ESR'' - DOMED (ESR)DECAL, ''ESR'' - DOMED (ESR)
-
260617-328 FOAM, HOOD - MIDDLEFOAM, HOOD - MIDDLE
-
273611-835 DECAL, ''ARCTIC CAT'' - HOODDECAL, ''ARCTIC CAT'' - HOOD
-
283611-580 DECAL, REVERSE (ESR)DECAL, REVERSE (ESR)
-
290636-630 MIRROR - RIGHT (INC 34-35) (ESR)MIRROR - RIGHT (INC 34-35) (ESR)
-
290636-631 MIRROR - LEFT (INC 34-35) (ESR)MIRROR - LEFT (INC 34-35) (ESR)
-
302606-007 FOIL, PROTECTIVEFOIL, PROTECTIVE
-
313611-940 DECAL, JET CHARTDECAL, JET CHART
-
321606-872 DUCT, AIR - OUTDUCT, AIR - OUT
-
338060-506 RIVETRIVET
-
340123-549 SCREW, MACHINE (ESR)SCREW, MACHINE (ESR)
-
350123-010 NUT, EXPANSION (ESR)NUT, EXPANSION (ESR)
-
360123-149 WASHERWASHER
-
370706-548 TAPE, FOILTAPE, FOIL
-
380623-413 SCREW, MACHINESCREW, MACHINE
-
394611-334 DECAL, ''ACT'' - HOOD - RIGHTDECAL, ''ACT'' - HOOD - RIGHT
-
394611-335 DECAL, ''ACT'' - HOOD - LEFTDECAL, ''ACT'' - HOOD - LEFT
