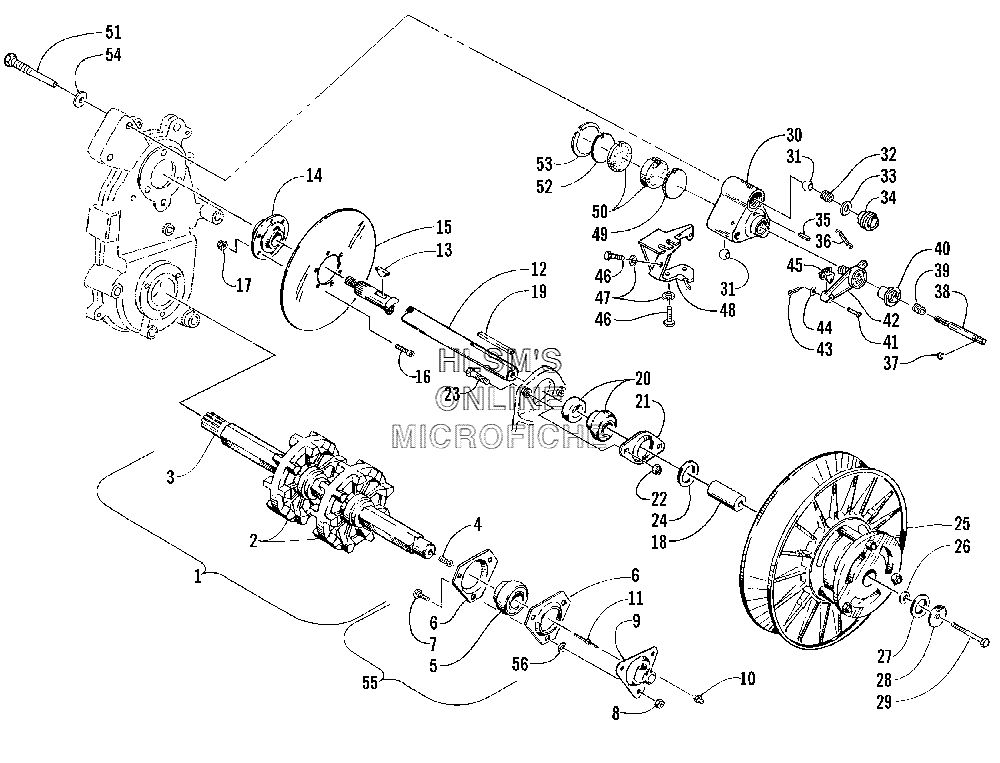

DRIVE TRAIN SHAFTS AND BRAKE ASSEMBLIES для Arctic Cat PANTHER 440 (ESR) - 2001 года выпуска

  • №
    Артикул
    Название
  • 1
    0728-042 TRACK DRIVE ASSEMBLY (INC 2-4)
    TRACK DRIVE ASSEMBLY (INC 2-4)
  • 2
    0602-992 SPROCKET, DRIVE
    SPROCKET, DRIVE
  • 3
    0602-487 DRIVESHAFT
    DRIVESHAFT
  • 4
    0120-247 BUSHING, DRIVE
    BUSHING, DRIVE
  • 5
    1602-110 BEARING, 1 IN. W/LOCK COLLAR - RE-LUBRICATIVE
    BEARING, 1 IN. W/LOCK COLLAR - RE-LUBRICATIVE
  • 6
    0602-198 PLATE, FLANGE
    PLATE, FLANGE
  • 7
    8011-130 BOLT, CARRIAGE
    BOLT, CARRIAGE
  • 8
    8040-426 NUT, LOCK
    NUT, LOCK
  • 9
    0720-005 ADAPTER, DRIVE (INC 10-11)
    ADAPTER, DRIVE (INC 10-11)
  • 10
    0104-062 FITTING, GREASE
    FITTING, GREASE
  • 11
    0602-154 CABLE, ADAPTER
    CABLE, ADAPTER
  • 12
    0602-485 SHAFT, DRIVEN
    SHAFT, DRIVEN
  • 13
    0602-598 KEY
    KEY
  • 14
    0602-434 HUB, BRAKE
    HUB, BRAKE
  • 15
    0602-551 DISC, BRAKE
    DISC, BRAKE
  • 16
    0623-459 SCREW, SOCKET HEAD
    SCREW, SOCKET HEAD
  • 17
    0123-430 NUT, LOCK
    NUT, LOCK
  • 18
    0648-066 SHAFT, STUB
    SHAFT, STUB
  • 19
    0101-076 KEY
    KEY
  • 20
    1602-099 BEARING, 1 IN. W/LOCK COLLAR - RE-LUBRICATIVE
    BEARING, 1 IN. W/LOCK COLLAR - RE-LUBRICATIVE
  • 21
    0602-892 PLATE, FLANGE
    PLATE, FLANGE
  • 22
    8041-426 NUT, LOCK
    NUT, LOCK
  • 23
    8002-130 SCREW, CAP
    SCREW, CAP
  • 24
    0623-118 WASHER
    WASHER
  • 24
    0623-119 WASHER
    WASHER
  • 25
    0726-101 CLUTCH, DRIVEN
    CLUTCH, DRIVEN
  • 25
    0726-083 CLUTCH, DRIVEN (INTERNATIONAL)
    CLUTCH, DRIVEN (INTERNATIONAL)
  • 26
    0123-053 WASHER
    WASHER
  • 27
    0123-578 WASHER
    WASHER
  • 28
    0123-019 WASHER
    WASHER
  • 29
    8002-142 SCREW, CAP
    SCREW, CAP
  • 30
    0602-505 CALIPER, BRAKE
    CALIPER, BRAKE
  • 31
    0602-503 BALL, ALIGNMENT
    BALL, ALIGNMENT
  • 32
    0602-618 SPRING, COMPRESSION
    SPRING, COMPRESSION
  • 33
    0623-450 WASHER
    WASHER
  • 34
    0602-622 NUT, BRAKE CALIPER
    NUT, BRAKE CALIPER
  • 35
    8070-316 PIN, SPRING
    PIN, SPRING
  • 36
    0602-779 SPRING, RETURN
    SPRING, RETURN
  • 37
    0124-057 RING, SNAP
    RING, SNAP
  • 38
    0602-515 SCREW, BRAKE - ADJUSTER
    SCREW, BRAKE - ADJUSTER
  • 39
    0602-616 SPRING, COMPRESSION
    SPRING, COMPRESSION
  • 40
    1602-024 KNOB, BRAKE - ADJUSTER
    KNOB, BRAKE - ADJUSTER
  • 41
    0602-509 PIN, CLEVIS
    PIN, CLEVIS
  • 42
    1602-022 ARM, ACTIVATOR
    ARM, ACTIVATOR
  • 43
    0117-868 PIN, COTTER
    PIN, COTTER
  • 44
    8050-212 WASHER
    WASHER
  • 45
    0602-508 CLEVIS, BRAKE CABLE
    CLEVIS, BRAKE CABLE
  • 46
    8002-039 SCREW, CAP
    SCREW, CAP
  • 47
    8051-212 WASHER, LOCK
    WASHER, LOCK
  • 48
    0702-283 BRACKET, BRAKE CABLE
    BRACKET, BRAKE CABLE
  • 49
    0602-716 PISTON, BRAKE PAD
    PISTON, BRAKE PAD
  • 50
    0702-264 PAD, BRAKE - SET
    PAD, BRAKE - SET
  • 51
    0602-386 BOLT, MOUNTING - BRAKE CALIPER
    BOLT, MOUNTING - BRAKE CALIPER
  • 52
    0602-775 PLATE, BACKING - STATIONARY PAD
    PLATE, BACKING - STATIONARY PAD
  • 53
    0602-502 RING, SNAP
    RING, SNAP
  • 54
    8050-307 WASHER
    WASHER
  • 55
    0702-392 PLATE, FLANGE - BEARING ASSEMBLY (INC 5-7 AND 56)
    PLATE, FLANGE - BEARING ASSEMBLY (INC 5-7 AND 56)
  • 56
    0623-810 RING, SOLDER
    RING, SOLDER
