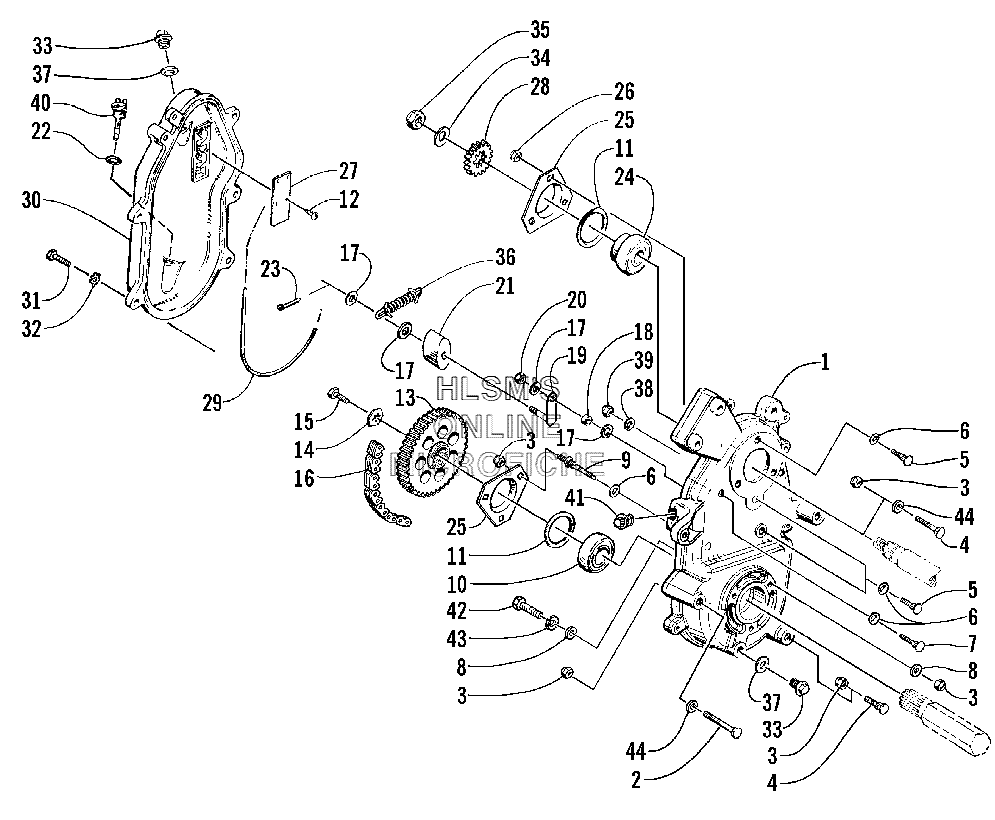

DRIVE/DROPCASE ASSEMBLY для Arctic Cat PANTHER 440 (ESR) - 2001 года выпуска`
-
№АртикулНазвание
-
10702-308 DROPCASE W/PLUGS (INC 5-7 AND 9)DROPCASE W/PLUGS (INC 5-7 AND 9)
-
28011-143 BOLT, CARRIAGEBOLT, CARRIAGE
-
38040-426 NUT, LOCKNUT, LOCK
-
48011-139 BOLT, CARRIAGEBOLT, CARRIAGE
-
50123-523 BOLT, RIBBEDBOLT, RIBBED
-
60607-025 O-RING, STUDO-RING, STUD
-
70623-117 BOLT, RIBBEDBOLT, RIBBED
-
88050-247 WASHERWASHER
-
90623-317 STUDSTUD
-
101602-051 BEARING, 1 IN.BEARING, 1 IN.
-
110107-003 SEAL, O-RINGSEAL, O-RING
-
120623-081 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
130602-451 SPROCKET, 39TSPROCKET, 39T
-
140124-091 WASHER, PYRAMIDALWASHER, PYRAMIDAL
-
158012-222 SCREW, CAPSCREW, CAP
-
161602-041 CHAIN, 70PCHAIN, 70P
-
178050-212 WASHERWASHER
-
180107-234 BUSHING, TIGHTENER ARMBUSHING, TIGHTENER ARM
-
190107-226 ARM, TIGHTENERARM, TIGHTENER
-
200623-122 NUT, LOCKNUT, LOCK
-
210107-411 PAD, TIGHTENERPAD, TIGHTENER
-
220670-183 O-RING, OIL LEVEL STICKO-RING, OIL LEVEL STICK
-
230123-082 PIN, COTTERPIN, COTTER
-
241602-052 BEARING, 7/8 IN.BEARING, 7/8 IN.
-
250602-198 PLATE, FLANGEPLATE, FLANGE
-
268041-426 NUT, LOCKNUT, LOCK
-
270602-971 COVER, VENTCOVER, VENT
-
280602-456 SPROCKET, 20TSPROCKET, 20T
-
290602-437 SEAL, DROPCASESEAL, DROPCASE
-
300602-989 COVER, DROPCASECOVER, DROPCASE
-
318002-134 SCREW, CAPSCREW, CAP
-
328053-242 WASHER, LOCK - EXTERNAL TOOTHWASHER, LOCK - EXTERNAL TOOTH
-
330623-293 PLUG, DROPCASEPLUG, DROPCASE
-
340623-231 WASHER, SPRINGWASHER, SPRING
-
350123-310 NUT, LOCKNUT, LOCK
-
360707-026 SPRING ASSEMBLYSPRING ASSEMBLY
-
370123-641 WASHER, FIBERWASHER, FIBER
-
380623-094 WASHERWASHER
-
398042-426 NUTNUT
-
400602-462 STICK, OIL LEVELSTICK, OIL LEVEL
-
410602-857 PLUG, DROPCASEPLUG, DROPCASE
-
428002-136 SCREW, CAPSCREW, CAP
-
438051-247 WASHER, LOCKWASHER, LOCK
-
448050-252 WASHERWASHER
