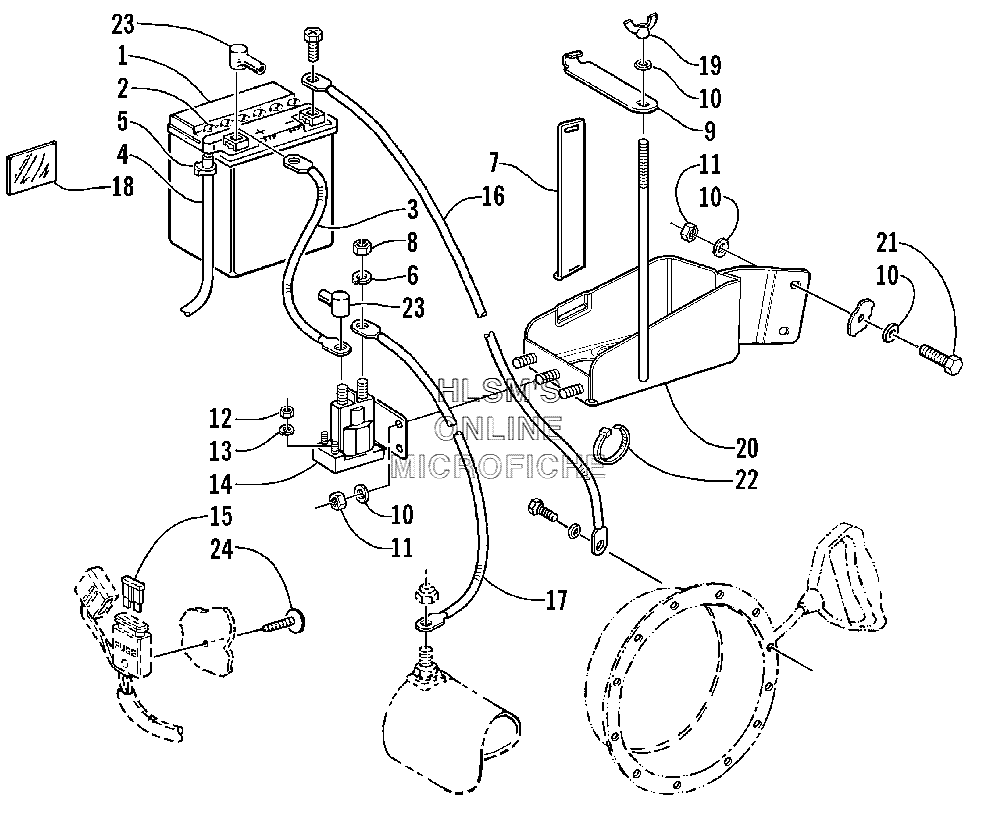

BATTERY- SOLENOID- AND CABLES (ESR) для Arctic Cat PANTHER 440 (ESR) - 2001 года выпуска

  • №
    Артикул
    Название
  • 1
    0745-045 BATTERY (INC 2 AND 4-5)
    BATTERY (INC 2 AND 4-5)
  • 2
    0645-045 CAP, BATTERY
    CAP, BATTERY
  • 3
    0645-161 CABLE, BATTERY/SOLENOID
    CABLE, BATTERY/SOLENOID
  • 4
    0645-263 HOSE, BATTERY VENT
    HOSE, BATTERY VENT
  • 5
    0645-152 CLAMP, HOSE
    CLAMP, HOSE
  • 6
    8051-242 WASHER, LOCK
    WASHER, LOCK
  • 7
    0645-245 STRAP, BATTERY HOLD-DOWN - SIDE
    STRAP, BATTERY HOLD-DOWN - SIDE
  • 8
    8043-452 NUT
    NUT
  • 9
    0645-243 STRAP, BATTERY HOLD-DOWN - TOP
    STRAP, BATTERY HOLD-DOWN - TOP
  • 10
    8050-217 WASHER
    WASHER
  • 11
    8040-366 NUT, LOCK
    NUT, LOCK
  • 12
    8042-272 NUT
    NUT
  • 13
    8051-152 WASHER, LOCK
    WASHER, LOCK
  • 14
    0645-196 SOLENOID
    SOLENOID
  • 15
    0630-100 FUSE, 7.5 AMP
    FUSE, 7.5 AMP
  • 16
    0645-080 CABLE, BATTERY/GROUND
    CABLE, BATTERY/GROUND
  • 17
    0645-244 CABLE, SOLENOID/STARTER
    CABLE, SOLENOID/STARTER
  • 18
    0645-151 DECAL, WARNING - BATTERY
    DECAL, WARNING - BATTERY
  • 19
    0623-325 NUT, WING
    NUT, WING
  • 20
    0745-149 TRAY, BATTERY
    TRAY, BATTERY
  • 21
    8002-045 SCREW, CAP
    SCREW, CAP
  • 22
    0123-788 CABLE TIE - 7 IN.
    CABLE TIE - 7 IN.
  • 23
    0645-019 BOOT, TERMINAL - BATTERY
    BOOT, TERMINAL - BATTERY
  • 24
    0623-589 CLIP, RETAINING
    CLIP, RETAINING
