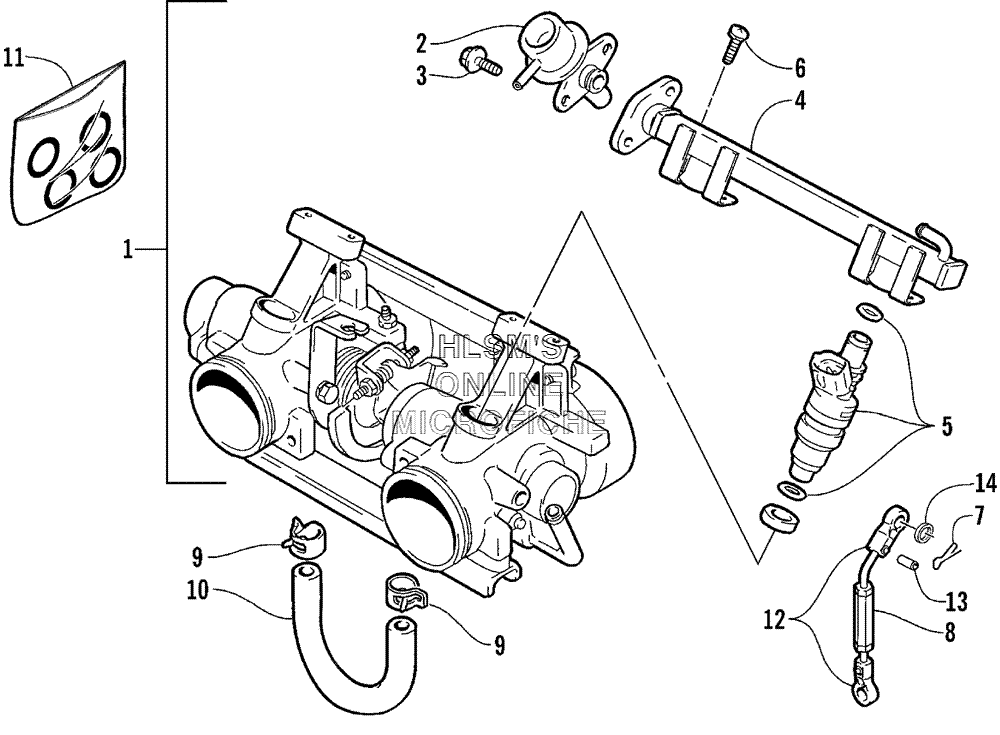

THROTTLE BODY ASSEMBLY для Arctic Cat ZR 600 EFI - LE - 2000 года выпуска
-
№АртикулНазвание
-
13005-678 THROTTLE BODY, ASSEMBLY CIRCLETHROTTLE BODY, ASSEMBLY CIRCLE
-
13005-679 THROTTLE BODY, ASSEMBLY SQUARETHROTTLE BODY, ASSEMBLY SQUARE
-
13005-680 THROTTLE BODY, ASSEMBLY TRIANGLETHROTTLE BODY, ASSEMBLY TRIANGLE
-
23005-074 REGULATOR, FUELREGULATOR, FUEL
-
33004-436 SCREW, CAPSCREW, CAP
-
43005-691 PIPE, DELIVERYPIPE, DELIVERY
-
53005-705 INJECTOR, FUEL, ASSEMBLY CIRCLEINJECTOR, FUEL, ASSEMBLY CIRCLE
-
53005-690 INJECTOR, FUEL, ASSEMBLY SQUAREINJECTOR, FUEL, ASSEMBLY SQUARE
-
53005-706 INJECTOR, FUEL, ASSEMBLY TRIANGLEINJECTOR, FUEL, ASSEMBLY TRIANGLE
-
63004-436 BOLTBOLT
-
73005-694 PIN, CLIPPIN, CLIP
-
83005-693 ROD, OIL PUMP CONTROLROD, OIL PUMP CONTROL
-
93004-193 CLAMP, HOSECLAMP, HOSE
-
103005-103 HOSEHOSE
-
113005-692 O-RING SETO-RING SET
-
123005-737 END, RODEND, ROD
-
133005-738 PIN, SPRINGPIN, SPRING
-
143005-807 WASHER, PLASTICWASHER, PLASTIC
Все узлы модели:
- A-ARM ASSEMBLY
- AIR SILENCER ASSEMBLY
- BELLY PAN AND FRONT BUMPER ASSEMBLY
- BELT GUARD ASSEMBLY
- CONSOLE AND SWITCH ASSEMBLY (LE-C)
- COOLING ASSEMBLY
- CRANKCASE ASSEMBLY
- CYLINDER AND HEAD ASSEMBLY
- DRIVE CLUTCH
- DRIVE TRAIN SHAFTS AND BRAKE ASSEMBLIES
- DRIVE/DROPCASE ASSEMBLY (LE-C)
- DRIVEN CLUTCH
- ELECTRICAL
- ENGINE AND RELATED PARTS
- EXHAUST ASSEMBLY
- FRONT FRAME AND FOOTREST ASSEMBLY (LE-C AND LE-R)
- FRONT SUSPENSION SHOCK ABSORBER (LE-C)
- GAS TANK AND FUEL PUMP ASSEMBLIES
- HANDLEBAR AND CONTROLS
- HEADLIGHT- INSTRUMENTS- AND WIRING ASSEMBLIES
- HOOD AND WINDSHIELD ASSEMBLY
- HYDRAULIC BRAKE CONTROL ASSEMBLY
- IDLER WHEEL ASSEMBLY
- MAGNETO
- OIL PUMP
- OIL TANK ASSEMBLY
- PISTON AND CRANKSHAFT
- REAR SUSPENSION FRONT ARM ASSEMBLY (LE-C)
- REAR SUSPENSION FRONT ARM SHOCK ABSORBER (LE-C)
- REAR SUSPENSION REAR ARM ASSEMBLY
- REAR SUSPENSION REAR ARM SHOCK ABSORBER (LE-C)
- RECOIL STARTER
- REED VALVE ASSEMBLY
- RELATED ITEMS
- REMOTE SHOCK LIMITER ASSEMBLY (LE-C)
- SEAT AND TAILLIGHT ASSEMBLY
- SHOCK ABSORBER AND SWAY BAR ASSEMBLY (LE-C)
- SKI AND SPINDLE ASSEMBLY
- SLIDE RAIL AND TRACK ASSEMBLY (LE-C)
- STEERING POST ASSEMBLY
- • THROTTLE BODY ASSEMBLY
- TIE ROD ASSEMBLY
- TUNNEL AND REAR BUMPER
- WATER PUMP AND THERMOSTAT
