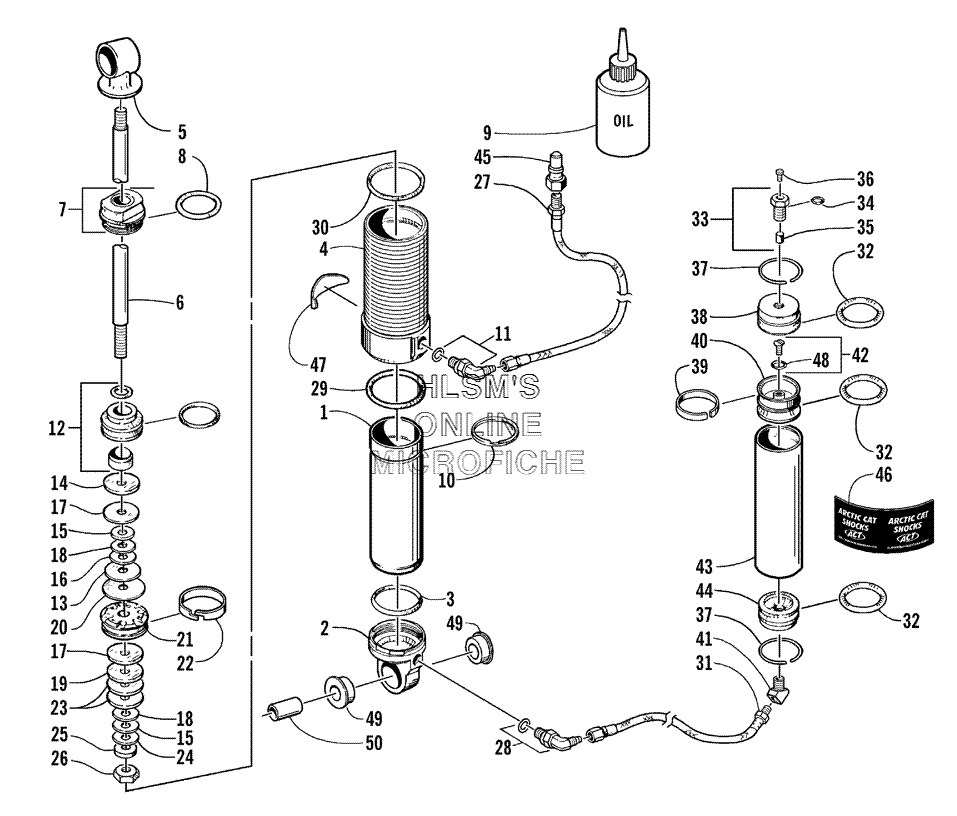

REAR SUSPENSION FRONT ARM SHOCK ABSORBER (LE-C) для Arctic Cat ZR 600 EFI - LE - 2000 года выпуска

  • №
    Артикул
    Название
  • -
    0704-470 COMPLETE SHOCK ABSORBER
    COMPLETE SHOCK ABSORBER
  • -
    0637-101 SHOCK REBUILD KIT
    SHOCK REBUILD KIT
  • 1
    1604-546 BODY, SHOCK
    BODY, SHOCK
  • 2
    1604-524 END CAP, SHOCK (INC. 3)
    END CAP, SHOCK (INC. 3)
  • 3
    1604-280 . O-RING
    . O-RING
  • 4
    1604-517 ADJUSTER SLEEVE, EASY, ADJUST
    ADJUSTER SLEEVE, EASY, ADJUST
  • 5
    0704-484 EYELET, SHOCK
    EYELET, SHOCK
  • 6
    1604-545 ROD, SHOCK
    ROD, SHOCK
  • 7
    0704-386 END CAP, SHOCK (INC. 8)
    END CAP, SHOCK (INC. 8)
  • 8
    1604-271 . O-RING
    . O-RING
  • 9
    1639-245 OIL, GAS SHOCK, 6 QT CASE
    OIL, GAS SHOCK, 6 QT CASE
  • 10
    0603-911 RING, RETAINING, SPIRAL
    RING, RETAINING, SPIRAL
  • 11
    1604-552 FITTING, ELBOW
    FITTING, ELBOW
  • 12
    0704-476 PISTON, SEPARATOR, ASSEMBLY
    PISTON, SEPARATOR, ASSEMBLY
  • 13
    1603-096 VALVE, 1.100 X 0.012 IN.
    VALVE, 1.100 X 0.012 IN.
  • 14
    1604-272 WASHER, TOP OUT
    WASHER, TOP OUT
  • 15
    1603-055 VALVE, 0.800 X 0.010 IN.
    VALVE, 0.800 X 0.010 IN.
  • 16
    1603-076 VALVE, 1.000 X 0.012 IN.
    VALVE, 1.000 X 0.012 IN.
  • 17
    1603-125 VALVE, 1.250 X 0.010 IN.
    VALVE, 1.250 X 0.010 IN.
  • 18
    1603-065 VALVE, 0.900 X 0.010 IN.
    VALVE, 0.900 X 0.010 IN.
  • 19
    1603-095 VALVE, 1.100 X 0.010 IN.
    VALVE, 1.100 X 0.010 IN.
  • 20
    1603-136 VALVE, 1.300 X 0.012 IN.
    VALVE, 1.300 X 0.012 IN.
  • 21
    0603-952 PISTON, 0.059 IN. ORIFICE
    PISTON, 0.059 IN. ORIFICE
  • 22
    1604-274 STRAP, PISTON, TEFLON
    STRAP, PISTON, TEFLON
  • 23
    1603-075 VALVE, 1.000 X 0.010 IN.
    VALVE, 1.000 X 0.010 IN.
  • 24
    1603-045 VALVE, 0.700 X 0.010 IN.
    VALVE, 0.700 X 0.010 IN.
  • 25
    1604-273 WASHER, BACKUP
    WASHER, BACKUP
  • 26
    0623-696 NUT, LOCK
    NUT, LOCK
  • 27
    1604-530 HOSE, ADJUSTER/SHOCK, 30 IN.
    HOSE, ADJUSTER/SHOCK, 30 IN.
  • 28
    1604-533 ELBOW, FLARE TUBE
    ELBOW, FLARE TUBE
  • 29
    1604-529 O-RING, ADJUSTER, TOP
    O-RING, ADJUSTER, TOP
  • 30
    1604-528 O-RING, ADJUSTER, BOTTOM
    O-RING, ADJUSTER, BOTTOM
  • 31
    1604-532 HOSE, RESERVOIR/SHOCK
    HOSE, RESERVOIR/SHOCK
  • 32
    1604-277 O-RING
    O-RING
  • 33
    0704-383 VALVE, PRESSURE, ASSEMBLY (INC. 34 AND 35)
    VALVE, PRESSURE, ASSEMBLY (INC. 34 AND 35)
  • 34
    1604-284 . O-RING, PRESSURE VALVE
    . O-RING, PRESSURE VALVE
  • 36
    0624-433 SCREW, MACHINE
    SCREW, MACHINE
  • 37
    1604-525 RETAINER, WIRE
    RETAINER, WIRE
  • 38
    1604-520 END CAP, RESERVOIR (VALVE SIDE)
    END CAP, RESERVOIR (VALVE SIDE)
  • 39
    1604-278 STRAP, PISTON, TEFLON
    STRAP, PISTON, TEFLON
  • 40
    1604-276 PISTON, INTERNAL FLOATING
    PISTON, INTERNAL FLOATING
  • 41
    1604-534 ELBOW, FLARE TUBE, 45°
    ELBOW, FLARE TUBE, 45°
  • 42
    0623-697 SCREW, RELIEF W/O-RING
    SCREW, RELIEF W/O-RING
  • 43
    1604-554 BODY, RESERVOIR
    BODY, RESERVOIR
  • 44
    1604-535 END CAP, RESERVOIR
    END CAP, RESERVOIR
  • 45
    1604-536 COUPLER, MALE, END
    COUPLER, MALE, END
  • 46
    3611-691 DECAL, "ACT", SHOCK
    DECAL, "ACT", SHOCK
  • 47
    3611-007 DECAL, WARNING
    DECAL, WARNING
  • 48
    1604-279 O-RING, RELIEF SCREW
    O-RING, RELIEF SCREW
  • 49
    1604-287 BUSHING, SHOCK
    BUSHING, SHOCK
  • 50
    1604-289 SLEEVE, EYELET
    SLEEVE, EYELET
