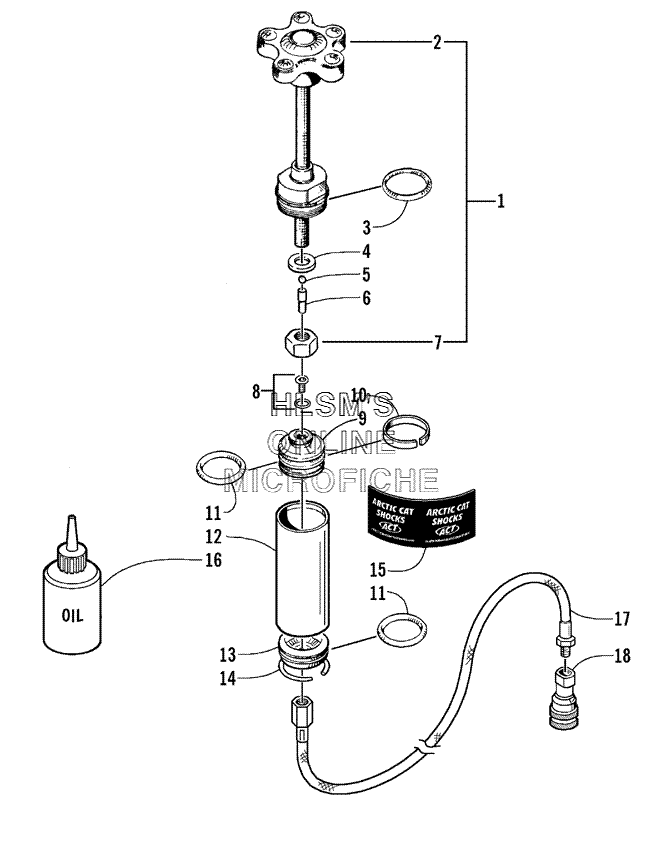

REMOTE SHOCK LIMITER ASSEMBLY (LE-C) для Arctic Cat ZR 600 EFI - LE - 2000 года выпуска
-
№АртикулНазвание
-
-0704-485 FRONT COMPLETE ASSEMBLYFRONT COMPLETE ASSEMBLY
-
10704-477 END CAP/ADJUSTER KNOB ASSEMBLY (INC. 2, 7)END CAP/ADJUSTER KNOB ASSEMBLY (INC. 2, 7)
-
31604-271 . O-RING. O-RING
-
41604-580 . SPACER, ADJUSTER KNOB ASSEMBLY. SPACER, ADJUSTER KNOB ASSEMBLY
-
50623-537 . BALL. BALL
-
61604-521 . PIN, DRIVE. PIN, DRIVE
-
78042-486 . NUT, STOP, ADJUSTER KNOB. NUT, STOP, ADJUSTER KNOB
-
80623-697 SCREW, RELIEF W/O O-RINGSCREW, RELIEF W/O O-RING
-
91604-276 PISTON, INTERNAL FLOATING W/O STRAPPISTON, INTERNAL FLOATING W/O STRAP
-
101604-278 STRAP, PISTON, TEFLONSTRAP, PISTON, TEFLON
-
111604-277 O-RINGO-RING
-
121604-553 BODY, ADJUSTER, RESERVOIRBODY, ADJUSTER, RESERVOIR
-
131604-535 END CAP, RESERVOIREND CAP, RESERVOIR
-
141604-525 RETAINER, WIRERETAINER, WIRE
-
153611-691 DECAL, "ACT", SHOCKDECAL, "ACT", SHOCK
-
161639-245 OIL, GAS SHOCK, 6 QT CASEOIL, GAS SHOCK, 6 QT CASE
-
171604-531 HOSE, ADJUSTER/COUPLER, 38 IN.HOSE, ADJUSTER/COUPLER, 38 IN.
-
181604-537 COUPLER, FEMALE, ENDCOUPLER, FEMALE, END
