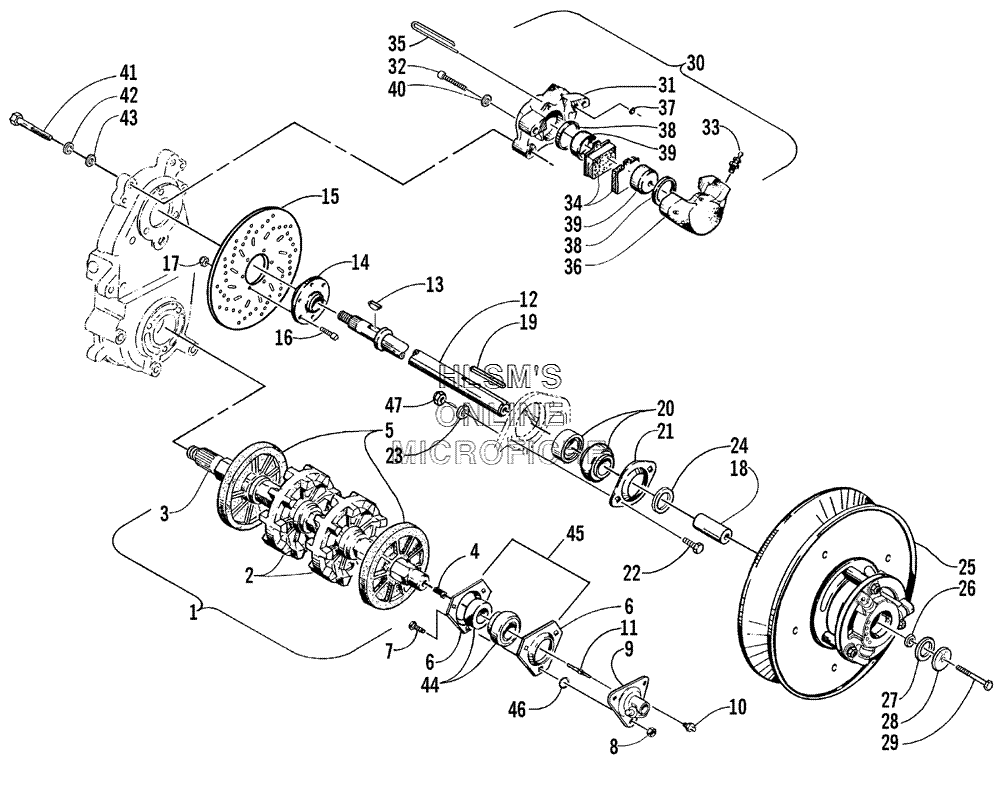

DRIVE TRAIN SHAFTS AND BRAKE ASSEMBLIES для Arctic Cat ZR 600 EFI - LE - 2000 года выпуска

  • №
    Артикул
    Название
  • 1
    0728-043 TRACK DRIVE ASSEMBLY (INC. 2, 5) (LE, C)
    TRACK DRIVE ASSEMBLY (INC. 2, 5) (LE, C)
  • 2
    0602-960 . SPROCKET, DRIVE, INNER (LE, C)
    . SPROCKET, DRIVE, INNER (LE, C)
  • 3
    0602-634 . DRIVESHAFT
    . DRIVESHAFT
  • 4
    0120-247 . BUSHING, DRIVE
    . BUSHING, DRIVE
  • 5
    0602-993 . SPROCKET, DRIVE, OUTER
    . SPROCKET, DRIVE, OUTER
  • 6
    0602-198 PLATE, FLANGE
    PLATE, FLANGE
  • 7
    8011-132 BOLT, CARRIAGE
    BOLT, CARRIAGE
  • 8
    8040-426 NUT, LOCK
    NUT, LOCK
  • 9
    0720-005 ADAPTER, DRIVE (INC. 10)
    ADAPTER, DRIVE (INC. 10)
  • 10
    0104-062 . FITTING, GREASE
    . FITTING, GREASE
  • 11
    0602-154 CABLE, ADAPTER
    CABLE, ADAPTER
  • 12
    0702-266 SHAFT, DRIVEN
    SHAFT, DRIVEN
  • 13
    0602-598 KEY
    KEY
  • 14
    0602-952 HUB, BRAKE
    HUB, BRAKE
  • 15
    0602-951 DISC, BRAKE
    DISC, BRAKE
  • 16
    0623-433 SCREW, CAP, SOCKET HEAD
    SCREW, CAP, SOCKET HEAD
  • 17
    0123-430 NUT, LOCK
    NUT, LOCK
  • 18
    0648-066 SHAFT, STUB
    SHAFT, STUB
  • 19
    0101-076 KEY
    KEY
  • 20
    0107-123 BEARING, 1 IN. W/LOCK COLLAR
    BEARING, 1 IN. W/LOCK COLLAR
  • 21
    0602-892 PLATE, FLANGE
    PLATE, FLANGE
  • 22
    8002-130 SCREW, CAP
    SCREW, CAP
  • 23
    8051-242 WASHER, LOCK
    WASHER, LOCK
  • 24
    0623-118 WASHER
    WASHER
  • 24
    0623-119 WASHER
    WASHER
  • 25
    0726-100 CLUTCH, DRIVEN
    CLUTCH, DRIVEN
  • 26
    0123-053 WASHER
    WASHER
  • 27
    0123-694 WASHER
    WASHER
  • 28
    0123-019 WASHER
    WASHER
  • 29
    8002-142 SCREW, CAP
    SCREW, CAP
  • 30
    0602-829 CALIPER, BRAKE ASSEMBLY (INC. 31, 40)
    CALIPER, BRAKE ASSEMBLY (INC. 31, 40)
  • 32
    8005-679 . SCREW, CAP
    . SCREW, CAP
  • 33
    0602-707 . SCREW, BLEED, ASSEMBLY
    . SCREW, BLEED, ASSEMBLY
  • 34
    0702-229 . PAD, BRAKE, SET (INC. 35)
    . PAD, BRAKE, SET (INC. 35)
  • 35
    0602-706 PIN, RETAINING
    PIN, RETAINING
  • 37
    0602-729 . O-RING, HOUSING
    . O-RING, HOUSING
  • 38
    0602-583 . O-RING
    . O-RING
  • 39
    0602-708 . PISTON
    . PISTON
  • 40
    8050-272 . WASHER
    . WASHER
  • 41
    8002-316 SCREW, CAP
    SCREW, CAP
  • 42
    8051-307 WASHER, LOCK
    WASHER, LOCK
  • 43
    8050-307 WASHER
    WASHER
  • 44
    0107-074 BEARING, 1 IN. W/LOCK COLLAR
    BEARING, 1 IN. W/LOCK COLLAR
  • 45
    0702-363 PLATE, FLANGE, BEARING ASSEMBLY (INC. 6, 7, 44, AND 46)
    PLATE, FLANGE, BEARING ASSEMBLY (INC. 6, 7, 44, AND 46)
  • 46
    0623-810 . RING, SOLDER
    . RING, SOLDER
  • 47
    8041-426 NUT, LOCK
    NUT, LOCK
