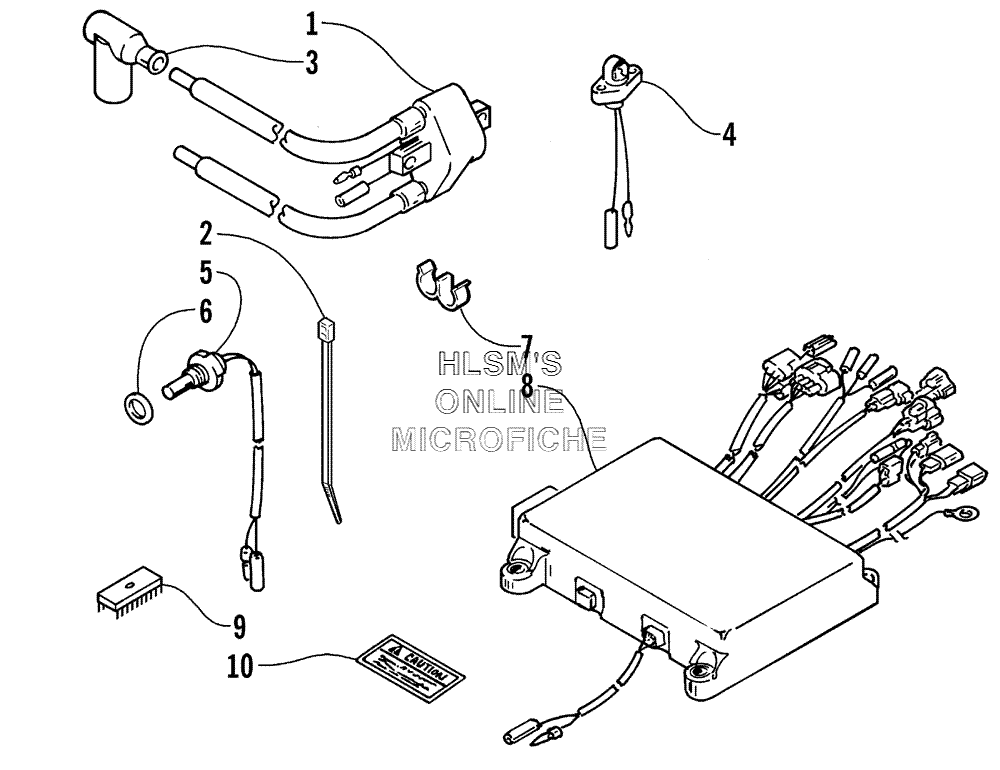

ELECTRICAL для Arctic Cat ZR 600 EFI - LE - 2000 года выпуска
-
№АртикулНазвание
-
13005-381 COIL, IGNITION, ASSEMBLYCOIL, IGNITION, ASSEMBLY
-
23005-237 CLAMPCLAMP
-
33003-737 CAP, SPARK PLUGCAP, SPARK PLUG
-
43005-071 SENSOR, TEMPERATURESENSOR, TEMPERATURE
-
53005-072 SENSOR, COOLANTSENSOR, COOLANT
-
63005-233 WASHER, COOLANT SENSORWASHER, COOLANT SENSOR
-
73005-387 CLAMPCLAMP
-
83005-582 ECU, CIRCLEECU, CIRCLE
-
83005-583 ECU, SQUAREECU, SQUARE
-
83005-584 ECU, TRIANGLEECU, TRIANGLE
-
93005-672 EPROM, CIRCLEEPROM, CIRCLE
-
93005-673 EPROM, SQUAREEPROM, SQUARE
-
93005-674 EPROM, TRIANGLEEPROM, TRIANGLE
-
102611-755 DECAL, CAUTION, HOT SURFACEDECAL, CAUTION, HOT SURFACE
