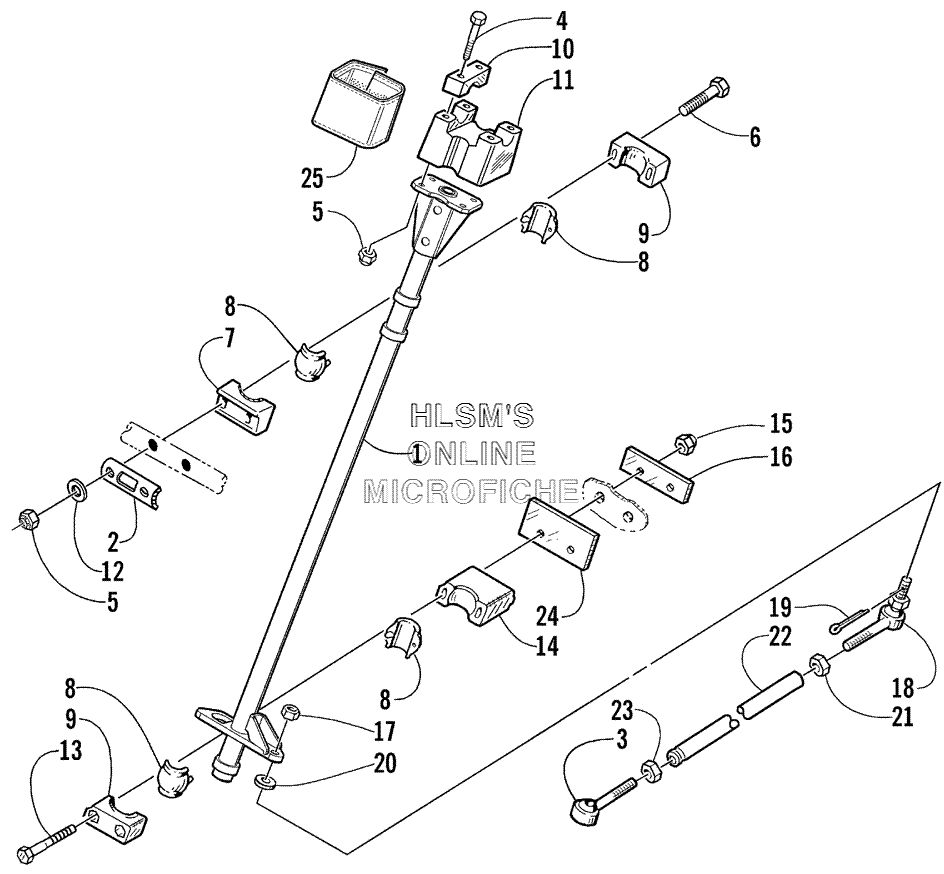

STEERING POST ASSEMBLY для Arctic Cat Powder Special 700 LE (Black) - 2000 года выпуска

  • №
    Артикул
    Название
  • 1
    0705-293 POST, STEERING
    POST, STEERING
  • 2
    0605-331 PLATE, BACKING, STEERING SUPPORT
    PLATE, BACKING, STEERING SUPPORT
  • 3
    0605-202 BALL JOINT, TIE ROD (RIGHT)
    BALL JOINT, TIE ROD (RIGHT)
  • 4
    8002-053 SCREW, CAP
    SCREW, CAP
  • 5
    8040-366 NUT, LOCK
    NUT, LOCK
  • 6
    0623-814 SCREW, CAP
    SCREW, CAP
  • 7
    0605-147 HOUSING, BEARING (UPPER)
    HOUSING, BEARING (UPPER)
  • 8
    0405-020 BEARING, HALF
    BEARING, HALF
  • 9
    0605-406 CAP, BEARING HOUSING
    CAP, BEARING HOUSING
  • 10
    0105-350 CAP, ADJUSTING BLOCK
    CAP, ADJUSTING BLOCK
  • 11
    0605-131 BLOCK, ADJUSTING
    BLOCK, ADJUSTING
  • 12
    8050-217 WASHER
    WASHER
  • 13
    8002-143 SCREW, CAP
    SCREW, CAP
  • 14
    0705-335 HOUSING, BEARING (LOWER)
    HOUSING, BEARING (LOWER)
  • 15
    8040-426 NUT, LOCK
    NUT, LOCK
  • 16
    0605-385 PLATE, BACKING
    PLATE, BACKING
  • 17
    0623-025 NUT, LOCK
    NUT, LOCK
  • 18
    0605-405 BALL JOINT, TIE ROD (LEFT)
    BALL JOINT, TIE ROD (LEFT)
  • 19
    0623-175 PIN, COTTER
    PIN, COTTER
  • 20
    0623-044 WASHER
    WASHER
  • 21
    0123-917 NUT, HEX (LEFT)
    NUT, HEX (LEFT)
  • 22
    0605-404 TUBE, TIE ROD
    TUBE, TIE ROD
  • 23
    0623-294 NUT, HEX (RIGHT)
    NUT, HEX (RIGHT)
  • 24
    0605-471 STOP, STEERING
    STOP, STEERING
  • 25
    0705-350 WRAP, STEERING POST
    WRAP, STEERING POST
