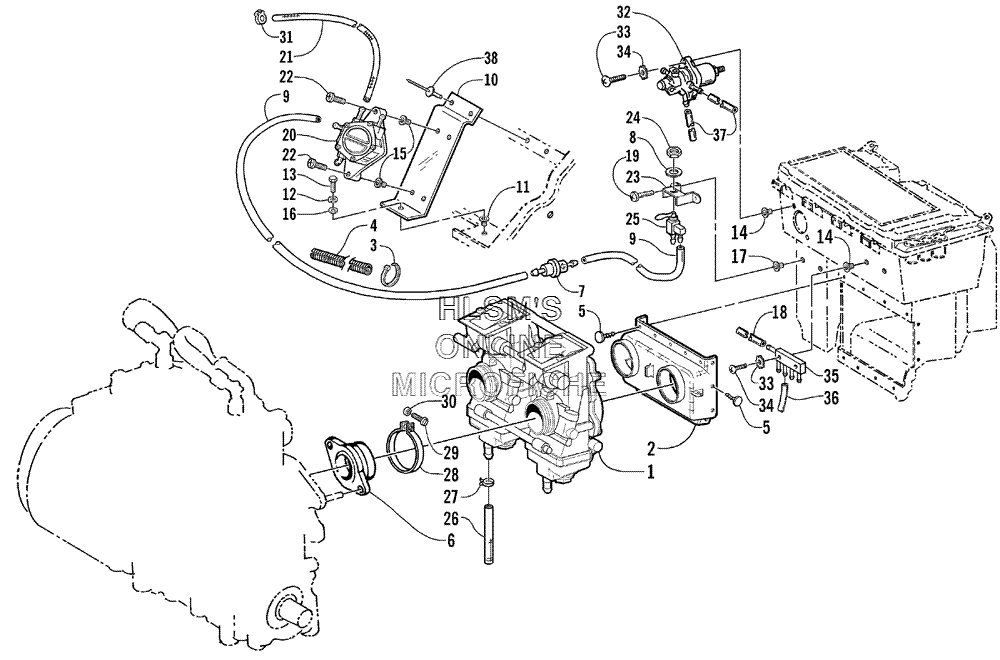

CARBURETOR AND FUEL PUMP ASSEMBLY для Arctic Cat Powder Special 700 LE (Black) - 2000 года выпуска

  • №
    Артикул
    Название
  • 1
    1670-089 CARBURETOR, TM40, B55
    CARBURETOR, TM40, B55
  • 2
    0670-988 BOOT, CARBURETOR
    BOOT, CARBURETOR
  • 3
    0123-811 TIE, CABLE, 4 IN.
    TIE, CABLE, 4 IN.
  • 4
    0716-546 CONDUIT, FLEXIBLE
    CONDUIT, FLEXIBLE
  • 5
    0623-165 CLIP, RETAINING
    CLIP, RETAINING
  • 6
    0670-992 FLANGE, CARBURETOR
    FLANGE, CARBURETOR
  • 7
    0510-335 FILTER, FUEL
    FILTER, FUEL
  • 8
    0623-288 WASHER
    WASHER
  • 9
    0610-017 HOSE, GASLINE (100 FT)
    HOSE, GASLINE (100 FT)
  • 9
    0610-008 HOSE, GASLINE (25 FT)
    HOSE, GASLINE (25 FT)
  • 10
    0770-405 PLATE, MOUNTING
    PLATE, MOUNTING
  • 11
    0623-582 INSERT, THREADED
    INSERT, THREADED
  • 12
    8051-217 WASHER, LOCK
    WASHER, LOCK
  • 13
    8002-040 SCREW, CAP
    SCREW, CAP
  • 14
    0623-627 INSERT
    INSERT
  • 15
    0623-779 INSERT
    INSERT
  • 16
    8050-217 WASHER
    WASHER
  • 17
    0623-529 INSERT
    INSERT
  • 18
    0610-331 HOSE, VACUUM
    HOSE, VACUUM
  • 19
    0623-836 SCREW, MACHINE
    SCREW, MACHINE
  • 20
    1670-064 PUMP, FUEL
    PUMP, FUEL
  • 21
    0610-007 HOSE, IMPULSE (25 FT)
    HOSE, IMPULSE (25 FT)
  • 22
    0623-833 SCREW, MACHINE
    SCREW, MACHINE
  • 23
    0670-837 BRACKET, MOUNTING, FUEL SHUT, OFF VALVE
    BRACKET, MOUNTING, FUEL SHUT, OFF VALVE
  • 24
    0623-287 NUT
    NUT
  • 25
    0670-945 VALVE, FUEL SHUT, OFF (INC. 8 AND 24)
    VALVE, FUEL SHUT, OFF (INC. 8 AND 24)
  • 26
    0610-279 HOSE, DRAIN
    HOSE, DRAIN
  • 27
    0623-652 CLAMP, HOSE
    CLAMP, HOSE
  • 28
    0670-199 CLAMP, CARBURETOR FLANGE (INC. 29, 30)
    CLAMP, CARBURETOR FLANGE (INC. 29, 30)
  • 29
    6505-819 . SCREW
    . SCREW
  • 30
    0670-209 . SPACER
    . SPACER
  • 31
    0124-045 CLAMP, HOSE
    CLAMP, HOSE
  • 32
    1670-109 COMPENSATOR, PRESSURE
    COMPENSATOR, PRESSURE
  • 33
    8007-582 SCREW, MACHINE
    SCREW, MACHINE
  • 34
    8053-212 WASHER, LOCK, EXTERNAL TOOTH
    WASHER, LOCK, EXTERNAL TOOTH
  • 35
    1670-108 MANIFOLD, PRESSURE COMPENSATOR
    MANIFOLD, PRESSURE COMPENSATOR
  • 36
    0610-329 HOSE, VACUUM 5 IN.
    HOSE, VACUUM 5 IN.
  • 36
    0610-330 HOSE, VACUUM 9 IN.
    HOSE, VACUUM 9 IN.
  • 36
    0610-352 HOSE, VACUUM 7.5 IN.
    HOSE, VACUUM 7.5 IN.
  • 37
    0610-334 HOSE, OIL LINE
    HOSE, OIL LINE
  • 38
    8060-704 RIVET
    RIVET
