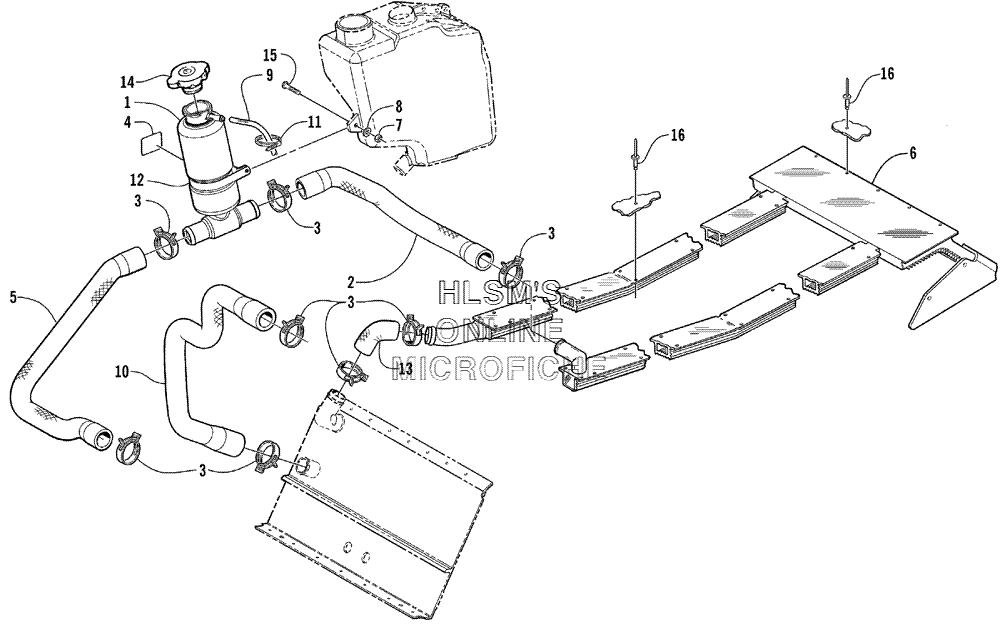

COOLING ASSEMBLY для Arctic Cat Powder Special 700 LE (Black) - 2000 года выпуска

  • №
    Артикул
    Название
  • 1
    1606-396 TANK, COOLANT
    TANK, COOLANT
  • 2
    0610-379 HOSE, COOLANT TANK/HEAT EXCHANGER
    HOSE, COOLANT TANK/HEAT EXCHANGER
  • 3
    0623-736 CLAMP, HOSE
    CLAMP, HOSE
  • 4
    2611-758 DECAL, FILL LEVEL, COOLANT TANK
    DECAL, FILL LEVEL, COOLANT TANK
  • 5
    0610-384 HOSE, COOLANT, ENGINE/COOLANT TANK
    HOSE, COOLANT, ENGINE/COOLANT TANK
  • 6
    1706-089 HEAT EXCHANGER
    HEAT EXCHANGER
  • 7
    8040-366 NUT, LOCK
    NUT, LOCK
  • 8
    8050-217 WASHER
    WASHER
  • 9
    0610-015 HOSE, VENT (100 FT)
    HOSE, VENT (100 FT)
  • 9
    0610-016 HOSE, VENT (25 FT)
    HOSE, VENT (25 FT)
  • 10
    0610-409 HOSE, COOLANT, ENGINE/HEAT EXCHANGER W/PROTECTOR
    HOSE, COOLANT, ENGINE/HEAT EXCHANGER W/PROTECTOR
  • 11
    0123-788 TIE, CABLE, 7 IN.
    TIE, CABLE, 7 IN.
  • 12
    0623-761 CLAMP, COOLANT TANK
    CLAMP, COOLANT TANK
  • 13
    0610-244 HOSE, COOLANT HEAT EXCHANGER (FRONT)/ HEAT EXCHANGER
    HOSE, COOLANT HEAT EXCHANGER (FRONT)/ HEAT EXCHANGER
  • 14
    0606-268 CAP, FILLER NECK
    CAP, FILLER NECK
  • 15
    8017-580 SCREW, MACHINE
    SCREW, MACHINE
  • 16
    8060-686 RIVET
    RIVET
